| Ethernet I/O Module with 10-ch Thermocouple Inputs, 6/3-ch DO |
|
| |
| |
|
 |
 |
| Model: ET-7018Z/PET-7018Z |
Model: ET-7218Z/PET-7218Z |
|
|
 |
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- 2-port Ethernet Switch for Daisy-Chain Topology
- Dual Watchdog
- Wide Operating Temperature Range: -25 ~ +75°C
- I/O Pair Connection
- Built-in I/O
- Thermocouple Input: 10 Channels
- DO: 6/3 Channels
|
|
|
| |
 |
The “Z” version is another milestone in the development of the thermocouple series and is a testament to the excellence of ICP DAS products. The ET-7018Z/PET-7018Z/ET-7218Z/PET-7218Z is specifically designed for extremely accurate thermocouple measurement and features automatic coldjunction compensation for each channel to ensure temperature output consistency and stable temperature output in the field. Current input and voltage input are both supported. Another feature is that its ten input channels can be individually configured for different kinds of analog input. Open thermocouple detection and ESD/EFT/Surge protection mechanisms are also included. The six/five digital output channels can be set as alarm outputs with short-circuit protection and overload protection. |
| |
 |
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment. |
| |
 |
| Models |
ET-7018Z |
PET-7018Z |
ET-7218Z |
PET-7218Z |
| Software |
| Built-In Web Server |
Yes |
| Web HMI |
Yes |
| I/O Pair Connection |
Yes |
| Communication |
| Ethernet Port |
1 x RJ-45, 10/100 Base-TX |
2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| PoE |
- |
Yes |
- |
Yes |
| Protocol |
Modbus TCP, Modbus UDP |
| Security |
ID, Password and IP Filter |
| Dual Watchdog |
Yes, Module (0.8 seconds), Communication (Programmable) |
| LED Indicators |
| for System Running |
Yes |
| for Ethernet Link/Act |
Yes |
| for DI/DO status |
- |
Yes |
| for PoE Power |
- |
Yes |
- |
Yes |
| 2 Way Isolation |
| Ethernet |
1500 VDC |
- |
1500 VDC |
- |
| I/O |
2500 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
4 kV Contact for Each Terminal and 8 kV Air for Random Point |
| EFT (IEC 61000-4-4) |
+/-4 kV for Power |
| Power |
| Reverse Polarity Protection |
Yes |
| Powered from Terminal Block |
10 ~ 30 VDC |
12 ~ 48 VDC |
12 ~ 48 VDC |
12 ~ 48 VDC |
| Powered from PoE |
- |
Yes, IEEE 802.3af, Class1 |
- |
Yes, IEEE 802.3af, Class1 |
| Consumption |
2.0 W (Max.) |
3.0 W (Max.) |
3.1 W (Max.) |
3.3 W (Max.) |
| Mechanical |
| Dimensions (W x L x H) |
72 mm x 123 mm x 35 mm |
76 mm x 120 mm x 38 mm |
| Installation |
DIN-Rail or Wall mounting |
| Environmental |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30~ +80 °C |
| Humidity |
10 ~ 90% RH, non-condensing |
|
| |
 |
| Models |
ET-7018Z |
PET-7018Z |
ET-7218Z |
PET-7218Z |
| Thermocouple Input |
| Channels |
10 (Differential) |
| Type |
+/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V |
+/-20 mA, 0 ~ 20 mA, 4 ~ 20 mA
(Requires Optional External 125 Ω Resistor) |
| Thermocouple (J, K, T, E, R, S, B, N, C, L, M, and LDIN43710) |
| Individual Channel Configuration |
Yes |
| Resolution |
16-bit |
| Sampling Rate |
10 Samples/Second (Total) |
| Accuracy |
+/-0.1% of FSR or better |
| Zero Drift |
+/-0.5 μV/°C |
| Span Drift |
+/-25 ppm/°C |
| Overvoltage Protection |
240 Vrms |
| Input Impedance |
>300 kΩ |
| Common Mode Rejection |
150 dB Min. |
| Normal Mode Rejection |
100 dB |
| Temperature Output Consistency |
Yes |
| Stable Temperature Output in the Field |
Yes |
| Open Wire Detection |
Yes |
| Virtual Channel to Channel Isolation |
+/-400 VDC |
| Digital Output |
| Channels |
6 |
3 |
| Type |
Isolated Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Max. Load Current |
700 mA/Channel |
| Load Voltage |
5 VDC ~ 50 VDC |
| Overvoltage Protection |
60 VDC |
| Overload Protection |
1.4 A |
| Short-circuit Protection |
Yes |
| Power-on Value |
Yes, Programmable |
| Safe Value |
Yes, Programmable |
|
| |
 |
| ET-7018Z/S CR |
Ethernet I/O Module with 10-ch Thermocouple Inputs, 6-ch DO with DN-1820 Daughter Board (RoHS) |
| PET-7018Z/S CR |
PoE Ethernet I/O Module with 10-ch Thermocouple Inputs, 6-ch DO with DN-1820 Daughter Board (RoHS) |
| ET-7218Z/S CR |
Ethernet I/O Module with 2-port Ethernet Switch, with 10-ch Thermocouple Inputs, 3-ch DO with DN-1820 Daughter Board (RoHS) |
| PET-7218Z/S CR |
PoE Ethernet I/O Module with 2-port Ethernet Switch, with 10-ch Thermocouple Inputs, 3-ch DO with DN-1820 Daughter Board (RoHS) |
| ET-7018Z/S2 CR |
Ethernet I/O Module with 10-ch Thermocouple Inputs, 6-ch DO with DN-1822 Daughter Board and a 1.8 m Cable (RoHS) |
| PET-7018Z/S2 CR |
PoE Ethernet I/O Module with 10-ch Thermocouple Inputs, 6-ch DO with DN-1822 Daughter Board and a 1.8 m Cable with PoE (RoHS) |
| ET-7218Z/S2 CR |
Ethernet I/O Module with 2-port Ethernet Switch with 10-ch Thermocouple Inputs, 3-ch DO with DN-1822 Daughter Board and a 1.8 m Cable (RoHS) |
| PET-7218Z/S2 CR |
PoE Ethernet I/O Module with 2-port Ethernet Switch with 10-ch Thermocouple Inputs, 3-ch DO with DN-1822 Daughter Board and a 1.8 m Cable with PoE (RoHS) |
| ET-7018Z/S3 CR ~ Available soon ~ |
Ethernet I/O Module with 10-ch Thermocouple Inputs, 6-ch DO with DN-1823 Daughter Board and a 15 cm Cable (RoHS) |
| PET-7018Z/S3 CR ~ Available soon ~ |
PoE Ethernet I/O Module with 10-ch Thermocouple Inputs, 6-ch DO with DN-1823 Daughter Board and a 15 cm Cable with PoE (RoHS) |

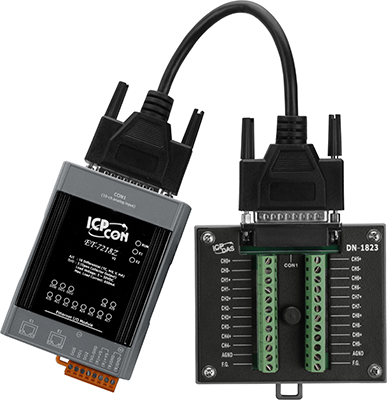

| ET-7218Z/S3 CR ~ Available soon ~ |
Ethernet I/O Module with 2-port Ethernet Switch with 10-ch Thermocouple Inputs, 3-ch DO with DN-1823 Daughter Board and a 15 cm Cable (RoHS) |
| PET-7218Z/S3 CR ~ Available soon ~ |
PoE Ethernet I/O Module with 2-port Ethernet Switch with 10-ch Thermocouple Inputs, 3-ch DO with DN-1823 Daughter Board and a 15 cm Cable with PoE (RoHS) |
 |

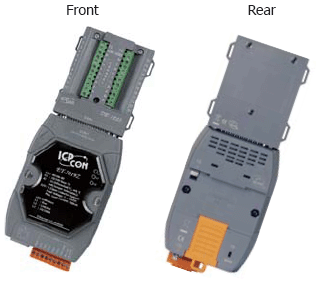

ET-7018Z/S = DB-1820 Connects to the ET-7018Z Directly
PET-7018Z/S = DB-1820 Connects to the PET-7018Z Directly
ET-7218Z/S = DB-1820 Connects to the ET-7218Z Directly
PET-7218Z/S = DB-1820 Connects to the PET-7218Z Directly |
|
 |
ET-7018Z/S2 = DN-1822 Connects to the ET-7018Z Directly
PET-7018Z/S2 = DN-1822 Connects to the PET-7018Z Directly
ET-7218Z/S2 = DN-1822 Connects to the ET-7218Z Directly
PET-7218Z/S2 = DN-1822 Connects to the PET-7218Z Directly |
|
| |
 |
ET-7018Z/S3 = DN-1823 Connects to the ET-7018Z Directly
PET-7018Z/S3 = DN-1823 Connects to the PET-7018Z Directly |
|
| |
 |
ET-7218Z/S3 = DN-1823 Connects to the ET-7218Z Directly
PET-7218Z/S3 = DN-1823 Connects to the PET-7218Z Directly |
|
|
| |
 |
| NS-205 CR |
Unmanaged 5-port Industrial Ethernet Switch; reguires 24 VDC Input (RoHS) |
| NS-205PSE CR |
Unmanaged Ethernet switch with 4-PoE and 1 RJ45 uplink; reguires 48 VDC Input (RoHS) |
| NS-205PSE-24V CR |
Unmanaged Ethernet switch with 4-PoE and 1 RJ45 uplink; reguires 24 VDC Input (RoHS) |
| MDR-20-24 CR |
24 V/1 A, 24 W Power Supply with DIN-Rail Mounting (RoHS) |
| DIN-KA52F-48 CR |
48 V/0.52 A, 25 W Power Supply with DIN-Rail Mounting (RoHS) |
| CD-2518D CR |
25F-25M 1.8 m Cable with DIN-Rail Mount for the DB-1820 (RoHS) |
| CD-25015 CR |
25F-25M 15 cm Cable with DIN-Rail Mount for theDB-1820 (RoHS) |
| 4PAPP-006-G CR |
Plastic Rack (RoHS) |
 |
 |
CD-25015
15 cm Cable + DB-1820 |
 |
4PAPP-006-G |
PET-7018Z/S +CD-25015 +4PAPP-006-G |
|
 |
 |
CD-2518D
1.8 m Cable + DB-1820 |
PET-7018Z/S +CD-2518D
PET-7218Z/S +CD-2518D |
|
|
| |
|
|
| |
|
|
