WP-8000-CE7 Series (InduSoft inside)
WP-8129-CE7/WP-8429-CE7/WP-8829-CE7 |
|
| ~ Available soon ~ |
|
 |
 |
Model: WP-8129-CE7 |
Model: WP-8429-CE7 |
| |
| |
|
 |
Model: WP-8829-CE7 |
|
|
|
 |
- Cortex-A8, 1GHz CPU
- 512 MB DDR3 and 256 MB Flash
- Windows CE 7.0 Professional
- Hard Real-Time Capability
- 64-bit Hardware Serial Number for Software Protection
- I/O Expansion Slots
- 2 10/100/1000M Ethernet Ports
- Redundant Power Input
- Operating Temperature: -25 ~ +75°C
|
|
|
|
| |
| |
 |

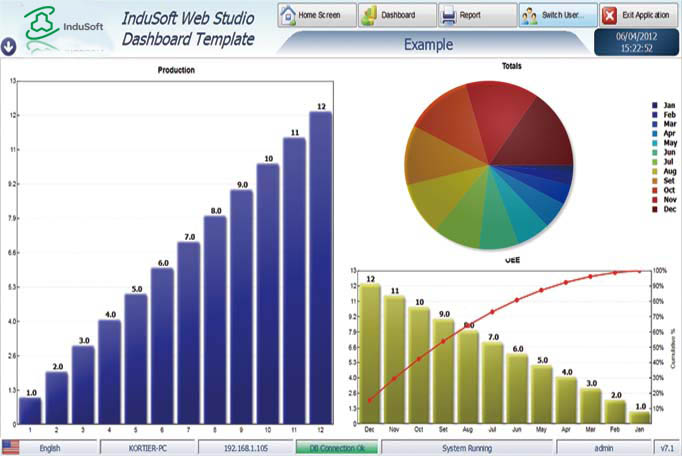

The WP-8x29-CE7 is the new generation Windows CE 7.0 based PAC with InduSoft Runtime pre-installed of ICP DAS. InduSoft is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop HMI (Human Machine Interface) and SCADA (Supervisory Control and Data Acquisition system.

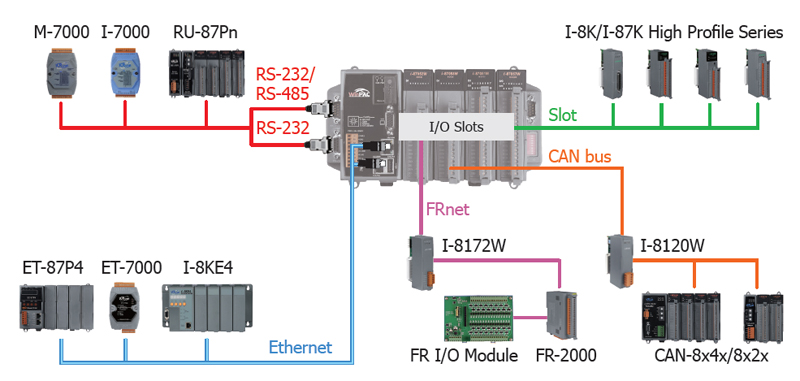

Each WP-8x29-CE7 is equipped with a Cortex-A8 (1.0 GHz) CPU running a Windows CE 7.0 operating system, a variant of input/output ports (VGA, USB, Ethernet, RS-232/485), and 1/4/8 expansion I/O slots that can be used to integrate high performance I-8K (parallel-type) and I-87K (serial-type) series I/O modules.
|
| |
| |
|
|
| |
 |
 |
- Support PC based software: Visual Studio.NET
- Web server, FTP server, Telnet server
|
|
| |
| |
|
|
| |
 |
 |
| |
| |
|
|
| |
 |
 Alarms |
| In addition to the many alarm functions you expect from InduSoft Web Studio, since v7.1 it sends online alarms or reports using multi-media formats like PDF. Alarms are real-time and historical; log data in binary format or to any database. Use remote notification to have alarms sent right to your inbox, printer, or smartphone! Custom Alarm fields allow you to customize up to 10 additional fields to the history of alarms. |
| |
 |
| |
| Recipe / Report |
| Save time and maintain consistency by automating part parameters or production quantities with flexible recipe management tools. Create clear, concise reports in plain text, RTF, XML, PDF, HTML, and CSV or integrate with Microsoft Office programs such as Excel. Get the data you need, in the format you need it, to make informed decisions, fast. InduSoft has also partnered with Ocean Data Systems to offer further reporting capabilities through Dream Report for Indu-Soft Web Studio, available as an add-on. |
| |
 |
| |
| Trend |

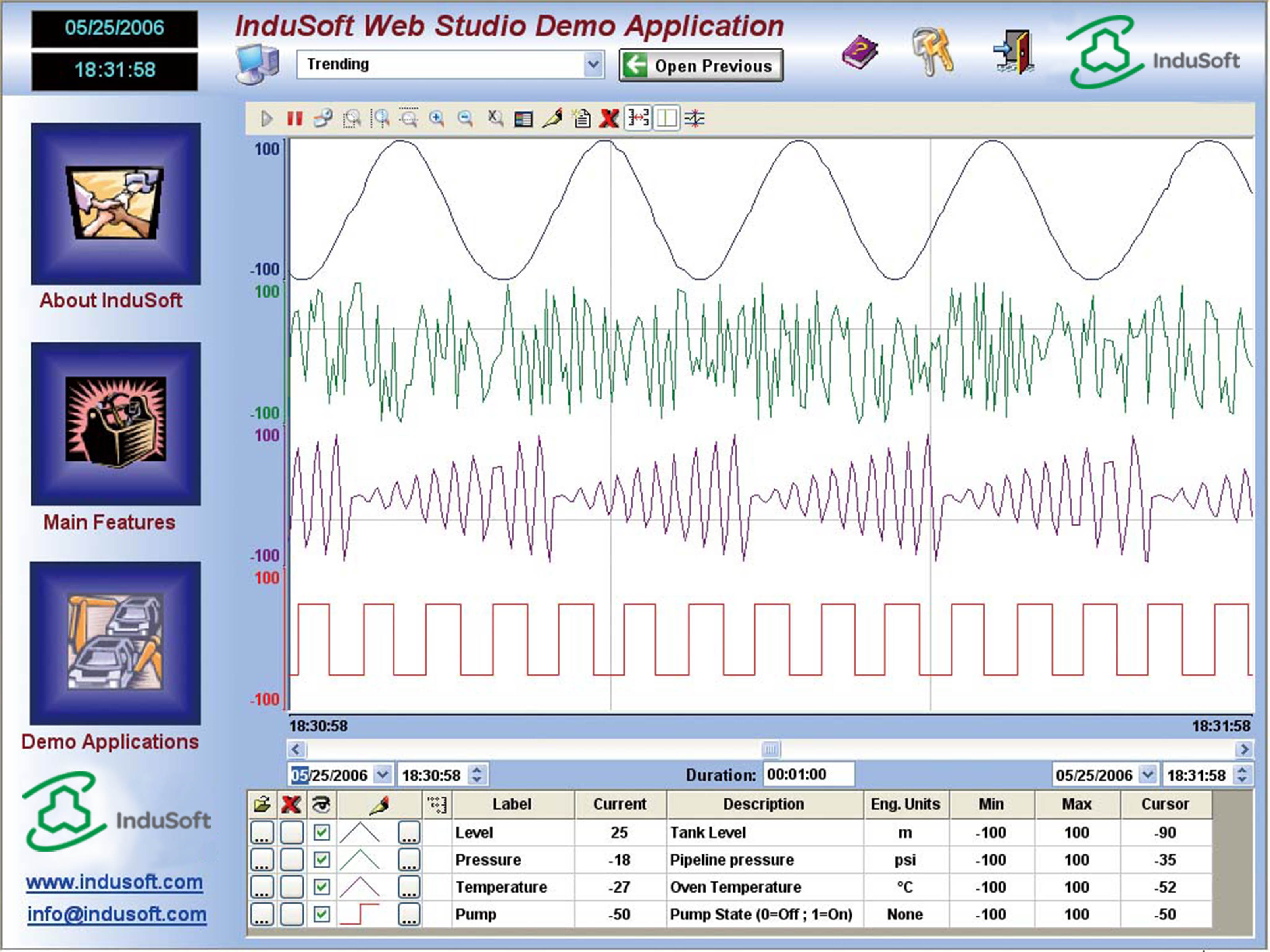

| Real-time and Historical trends, and SPC functionality are supported. Log data in binary format. or to any local or remote SQL database. Color or fill trends with graphic elements to enhance clarity of data. Date/Time based or numeric (X/Y plot) trends give you the flexibility to display information that best suits your application. InduSoft Web Studio supports vertical and horizontal trending. |
| |
 |
| |
 |
| |
| Database |
| Connect to any SQL database (MS SQL, MySQL, Sybase, Oracle), or MS Access or Excel, and ERP/MES systems (including SAP), even from Windows Embedded CE. InduSoft Web Studio is flexible, offering a built in interface that doesn’t require knowledge of SQL (for trends, alarms/events, grid and other objects). Use any SQL statement you need, anywhere you need it. |
| |
 |
| |
| Driver / OPC |

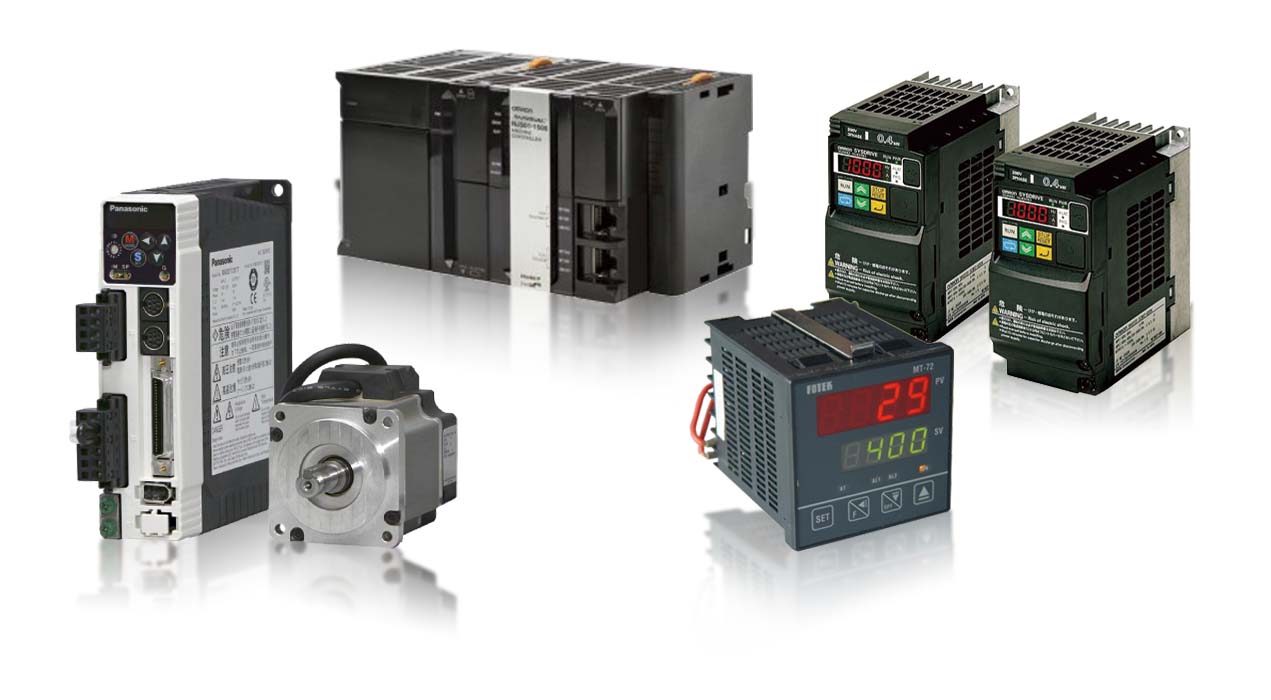

| Provides over 240 native communication drivers for PLCs, temperature controllers, motion controllers, bar code/2D/RFID readers, and many other devices. Use these built in drivers, or connect to an OPC server. InduSoft driver toolkits even allow you the flexibility to build your own drivers. |
| |
 |
| |
| Thin Clients |

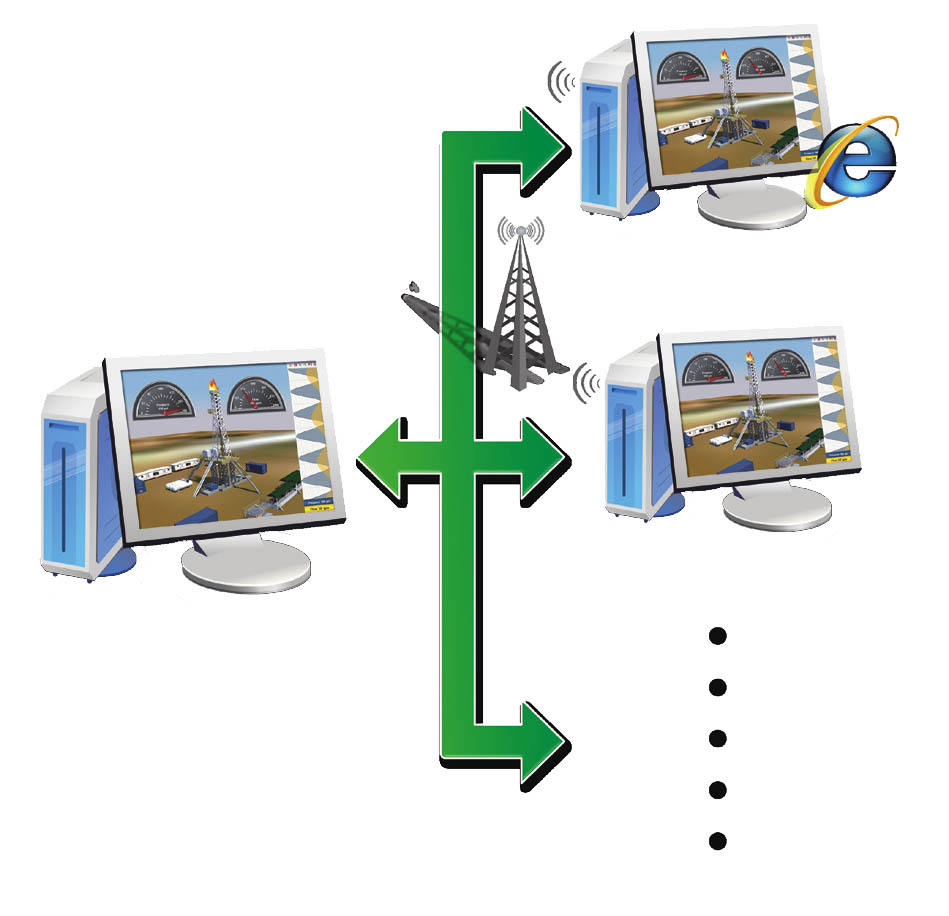

| Remotely view screens as web pages using Internet Explorer web browser, or InduSoft Secure Viewer. Without installing any additional software and provide embedded firewall, remote client command disabled and login authority functions to protect the system security. |
| |
|
| |
| back |
|
|
|
 |
| Models |
WP-8129-CE7 |
WP-8429-CE7 |
WP-8829-CE7 |
| System Software |
| OS |
Windows CE 7.0 |
| .Net Compact Framework |
3.5 |
| Embedded Service |
FTP server, Web server (supports VB script, JAVA script),
Embedded SQL server |
| SDK Provided |
Dll for VC, Dll for Visual Studio.Net 2008 |
| Multilanguage Support |
English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chines |
| Development Software |
| InduSoft Software |
InduSoft Web Studio Runtime |
| CPU Module |
| CPU |
Cortex-A8 (1.0 GHz) |
| DDR3 SDRAM |
512 MB |
| MRAM |
128 KB |
| Flash |
256 MB |
| EEPROM |
16 KB |
| microSD |
microSD slot with one microSD card (support up to 32 GB) |
| RTC (Real Time Clock) |
Provide second, minute, hour, date, day of week, month, year |
| 64-bit Hardware Serial Number |
Yes, for Software Copy Protection |
| Dual Watchdog Timers |
Yes |
| Programmable LED Indicator |
1 |
| Rotary Switch |
Yes (0 ~ 9) |
| DIP Switch |
- |
Yes (8 bits) |
| VGA & Communication Ports |
| VGA Resolution |
800 x 600, 1024 x 768 |
| Ethernet |
RJ-45 x 2, 10/100/1000M Base-TX |
| USB 2.0 |
2 |
| COM 0 |
Internal communication with the high profile I-87K series modules in slots |
| COM 1 |
RS-232 (RxD, TxD and GND); Non-isolation |
| COM 2 |
RS-485 (Data+, Data-);self-tuner ASIC inside; 3000 VDC isolated |
| COM 3 |
- |
RS-232/485 (RxD, TxD, CTS, RTS and GND for RS-232; Data+, Data- for RS-485); Non-isolation |
| COM 4 |
- |
RS-232 (RXD, TXD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolation |
| I/O Expansion Slots |
| Slot Number |
1 slot |
4 slots |
8 slots |
| (For High Profile I-8K and I-87K Modules Only) |
| Mechanical |
| Dimensions (W x L x H) |
95 mm x 132 mm x 111 mm |
231 mm x 132 mm x 111 mm |
355 mm x 132 mm x 111 mm |
| Installation |
DIN-Rail or Wall Mounting |
| Environmental |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-30 ~ +80°C |
| Ambient Relative Humidity |
10 ~ 90% RH (non-condensing) |
| Power |
| Input Range |
+10 ~ +30 VDC |
| Isolation |
1 kV |
| Redundant Power Inputs |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Capacity |
1.0A, 5V supply to CPU and backplane, 0.6A, 5V supply to I/O expansion slots, total 8 W |
1.1A, 5V supply to CPU and backplane, 4.9A, 5V supply to I/O expansion slots, total 30 W |
1.2A, 5V supply to CPU and backplane, 4.8A, 5V supply to I/O expansion slots, total 30 W |
| Consumption |
7.3 W (0.3 A @ 24 VDC) |
9.1 W (0.38 A @ 24 VDC) |
9.6 W (0.4 A @ 24 VDC) |
|
| |
|
|
| |
 |
| InduSoft Default Runtime License: 300 Tags, 3 Drivers |
| WP-8129-CE7 CR |
InduSoft Based WinPAC-8000-CE7 with 1 I/O Slots (RoHS) |
| WP-8429-CE7 CR |
InduSoft Based WinPAC-8000-CE7 with 4 I/O Slots (RoHS) |
| WP-8829-CE7 CR |
InduSoft Based WinPAC-8000-CE7 with 8 I/O Slots (RoHS) |
| |
| InduSoft Default Runtime License: 1500 Tags, 3 Drivers |
| WP-8129-CE7-1500 CR |
InduSoft Based WinPAC-8000-CE7 with 1 I/O Slots (RoHS) |
| WP-8429-CE7-1500 CR |
InduSoft Based WinPAC-8000-CE7 with 4 I/O Slots (RoHS) |
| WP-8829-CE7-1500 CR |
InduSoft Based WinPAC-8000-CE7 with 8 I/O Slots (RoHS) |
|
| |
|
|
| |
|
| SDR-240-24 |
24 V/10 A, 240 W Single Output Industrial DIN Rail Power Supply with PFC Function |
| MDR-20-24 |
24 W Single Output Industrial DIN Rail Power Supply |
| DIN-KA52F |
24 V/1 A Power Supply (DIN-Rail mounting) |
| DR-120-24 |
24V/5 A, 120 W Single Output Industrial DIN Rail Power Supply |
|
| |
|
|
| |
|
|
|
|
