| LX-9181/LX-9381/LX-9781 |
|
| |
| ~ NEW ~ |
|
 |
 |
Model: LX-9181 |
Model: LX-9381 |
| |
| |
|
 |
Model: LX-9781 |
|
|
 |
- E3845 (1.91 GHz) CPU
- Linux kernel 4.14.12
- Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
- 64-bit Hardware Serial Number for Software Protection
- Rich I/O Expansion Ability (RS-232/RS-485)
- 2 10/100/1000M Ethernet Ports
- Redundant Power Input
- Operating Temperature: -25 ~ +60°C
|
|
|
| |
 |

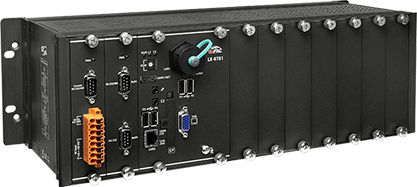

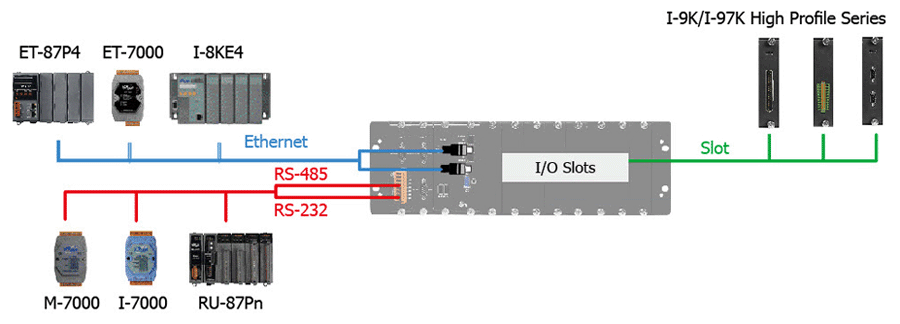

The LX-9x8x are Linux based PACs that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an Intel E3845 CPU, 1/3/7 I/O expansion slots and a variety of connectives including dual Gigabit Ethernet, VGA , USB port, RS-232 and RS-485 interface. Local I/O slots are available to use our I-9K and I-97K series I/O modules and remote I/O expansions are available to use our Ethernet I/O modules and RS-485 I/O modules.
User's programs can be saved in external storage device, such as CF Card or USB mass storage device. LinPAC SDK is provided for users to develop LinPAC I/O applications rapidly and easily when I-7000/9000/97k series I/O modules are used in the LinPAC. Users can develop LinPAC applications by using GNU C Language. In the meanwhile, all kinds of servers and functions built-in make the LinPAC more powerful and users will be able to operate LinPAC to achieve their own project smoothly. |
| |
 |
 |
| |
 |
| Models |
LX-9181 |
LX-9381 |
LX-9781 |
| System Software |
| OS |
Linux kernel 4.14.12 |
| Embedded Service |
SFTP server, Web server, SSH |
| SDK Provided |
LinPAC SDK (GCC based toolchain and LinPAC Libraries) |
| CPU Module |
| CPU |
E3845 (1.91 GHz, quad core) |
| SDRAM |
4 GB DDR3 |
| MRAM |
512 KB |
| Flash |
mSATA slot with one 32 GB SSD |
| EEPROM |
16 KB |
| CF |
CF socket with one 16 GB CF card (support up to 32 GB) |
| RTC (Real Time Clock) |
Provide second, minute, hour, date, day of week, month, year |
| 64-bit Hardware Serial Number |
Yes, for Software Copy Protection |
| Dual Watchdog Timers |
Yes |
| Programmable LED Indicator |
3 (Run, L1, L2) |
| Rotary Switch |
Yes (0 ~ 9) |
| VGA/HDMI/Communication Ports |
| VGA Resolution |
1280 x 1024 to 1920 x 1080 for 16:9 display; 640 x 480 to 1024 x 768 for 4:3 display |
| HDMI Resolution |
1280 x 1024 to 1920 x 1080 for 16:9 display; 640 x 480 to 1024 x 768 for 4:3 display |
| Ethernet |
RJ-45, 10/100/1000M Base-T (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB 2.0 |
4 |
| ttySA0 |
Internal communication with the high profile I-97K series modules in slots |
| ttyS0 |
RS-485 (Data+, Data-); 3000 VDC isolated |
| ttyS1 |
RS-232/485 (RxD, TxD and GND for RS-232; Data+, Data- for RS-485); 3000 VDC isolated |
| Console |
RS-232/485 (RxD, TxD, CTS, RTS and GND for RS-232; Data+, Data- for RS-485); 3000 VDC isolated |
| ttyS34 |
RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); 3000 VDC isolated |
| I/O Expansion Slots |
1 |
3 |
7 |
| Mechanical |
| Dimensions (W x H x D) |
239 mm x 164 mm x 133 mm |
300 mm x 164 mm x 133 mm |
422 mm x 164 mm x 133 mm |
| Installation |
Wall mounting/DIN-rail mounting |
| Environmental |
| Operating Temperature |
-25 ~ +60°C |
| Storage Temperature |
-30 ~ +80°C |
| Ambient Relative Humidity |
10 ~ 90% RH (non-condensing) |
| Power |
| Input Range |
+10 ~ +30 VDC |
| Isolation |
1 kV |
| Redundant Power Inputs |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Capacity |
4.1 A, 5 V supply to CPU and backplane, 2.5 A, 5 V supply to I/O expansion slots, 33 W in total |
4.2 A, 5 V supply to CPU and backplane, 2.4 A, 5 V supply to I/O expansion slots, 33 W in total |
4.4 A, 5 V supply to CPU and backplane, 2.2 A, 5 V supply to I/O expansion slots, 33 W in total |
| Consumption |
18.5 W (0.77 A @ 24 VDC) |
18.7 W (0.78 A @ 24 VDC) |
20.4 W (0.85 A @ 24 VDC) |
|
| |
 |
| LX-9181 |
Standard PAC with E3845 CPU, Linux OS and 1 I/O Slot |
| LX-9381 |
Standard PAC with E3845 CPU, Linux OS and 3 I/O Slots |
| LX-9781 |
Standard PAC with E3845 CPU, Linux OS and 7 I/O Slots |
|
| |
|
|
| |
|
|
