ZT-2026
Wireless 4-ch Voltage Input, 2-channel Voltage Output,
2-channel Digital Input and 2-channel Digital Output Module |
|
|
| |
| |
 |
| Model: ZT-2026 |
|
|
 |
 |
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with 2.4 G / ZigBee Specifications
- Wireless Transmission Range up to 700 m
- External DIP and Rotary Switches for easy Configuration
- GUI Configuration Software (Windows Version)
- 4 AI, 2 AO, 2 DI and 2 DO Channels
- Individual Channel Configuration
- Overvoltage Protection is up to 240 Vrms
- Configurable Power-on Value Settings
- Configurable Safe Value Settings
- ±4 kV ESD Protections (Conact for each Terminal)
- DIN-Rail Mounting
|
|
|
| |
 |
The ZT-2026 is a wireless ZigBee module that offers 4 differential analog input channels(Current input requires optional external 125 Ω resistor), 2 analog output channels, 2 digital input channels and 2 digital output channels and provides a programmable analog input and output range. Each analog input channel can be configured to an individual range and each has 240 Vrms overvoltage protection. There are also options for a
power-on value and a safe value. Users can easily configure the module address, protocol, checksum, ZT-PID, ZT-channel and type code settings using a combination of rotary and DIP switches. |
| |
 |
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment. |
 |
| |
 |
| Communication Interface |
| Wireless Standards |
ZigBee 2007 Pro |
| Transmission Power |
11 dBm (FCC Certificated) (Max. 19 dBm) |
| Antenna |
2.4 GHz - 5 dBi Omni-directional Antenna |
| Transmission Range (LoS) |
700 m (Typical) |
| Certification |
FCC/FCC ID, CE (RED excluded) |
| Max. Slaves in a ZigBee Network |
255 |
| ZB-100R/ZB-100T Support |
- |
| Protocols |
Supports DCON and Modbus RTU Protocols |
| Dual Watchdog |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| LED Indicators |
| Power |
1 LED, red |
| ZigBee Communication |
1 LED, green |
| Isolation |
| Intra-module Isolated, Field-to-Logic |
2500 VDC (for AI, AO, DI and DO) |
| Power |
| EMS Protection |
ESD, Surge, EFT |
| Input Voltage Range |
+10 VDC ~ +30 VDC (Reverse Polarity Protection) |
| Power Consumption |
2.1 W Max. |
| Mechanical |
| Flammability |
Fire Retardant Materials (UL 94V-0 Level) |
| Dimensions (L x W x H) |
87 mm x 33 mm x 110 mm |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 °C ~ +75 °C |
| Storage Temperature |
-30 °C ~ +80 °C |
| Relative Humidity |
10 ~ 90% RH, Non-condensing |
|
| |
 |
| Analog Input |
| Input Channels |
4 Differential |
| Input Types |
±10 V, ±5 V, ±1 V, ±500 mV, ±150 mV
or -20 mA ~ +20 mA
(Requires Optional External 125 Ω Resistor) |
| Resolution |
16-bit |
| Sampling Rate |
10 Samples/Second (Total) |
| Accuracy |
±0.1% of FSR |
| -3dB Bandwidth |
15.7 Hz |
| Common Mode Rejectio |
86 dB |
| Normal Mode Rejection |
100 dB |
| Input Impedance |
>2 MΩ |
| Overvoltage Protection |
240 Vrms |
| Individual Channel Configuration |
Yes |
| Analog Output |
| Output Channels |
2 |
| Output Types |
±10 VDC, ±5 VDC, 0 ~ 10 VDC or 0 ~ 5 VDC |
| Resolution |
12-bit |
| Accuracy |
±0.1% of FSR |
| Programmable Output Slope |
0.0625 ~ 512 V/Second |
| Voltage Capability |
20 mA @ 10 V |
| Power-on Value |
Yes |
| Safe Value |
Yes |
| Digital Input |
| Input Channels |
2 (Sink) |
| On Voltage Level |
3.5 VDC ~ 50 VDC |
| Off Voltage Level |
1 VDC Max. |
| Input Impedance |
10 KΩ |
| Event Counters |
Channels : 2 |
| Max. Count: 16-bit (65535) |
| Max. Input Frequency: 50 Hz |
| Min. Pulse Width: 10 ms |
| Digital Output |
| Output Channels |
2 (Sink) |
| Output Types |
Isolated Open Collector |
| Max. Load Current |
700 mA/channel |
| Load Voltage |
+5 VDC ~ +50 VDC |
| Short Circuit Protection |
Yes |
| Power-on Value |
Yes |
| Safe Value |
Yes |
|
| |
 |
| ZT-2026 CR |
Wireless 4-ch Voltage Input, 2-channle Voltage Output, 2-channle Digital Input and 2-channle Digital Output Module (ZigBee Router) (RoHS) |

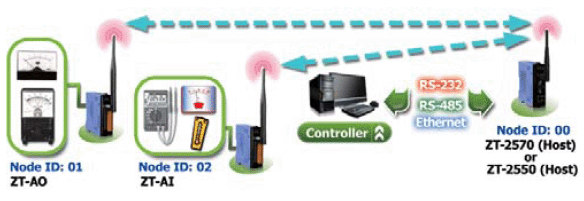

| Important Note: ZigBee Data Acquisition modules need a ZigBee host converter to coordinate the data transmission route.
Please remember to order a ZT-2550, ZT-2570, or ZT-USBC ZigBee host converter when you purchase ZigBee Data Acquisition products. |
|
| |
 |
| MDR-20-24 |
24 VDC/1.0 A, 24 W Power Supply with DIN-Rail Mounting |
| ZT-2510 CR |
ZigBee Repeater (RoHS) |
| ZT-2550 CR |
RS-485/RS-232 to ZigBee Converter (Host) |
| ZT-2570 CR |
Ethernet/RS-485/RS-232 to ZigBee Converter (Host) (RoHS) |
| External Antenna |
2.4GHz External Antenna, RP SMA Male (Plug) |
| Extension Cable |
3S00x-1, RG58A/U x Meter Long RP-SMA (male) to RP-SMA (female) |
|
| |
|
|
| |
|
|
