ZT-2018
Wireless 8-channle Analog Input Module with High Voltage Protection |
|
|
|
|
 |
Model: ZT-2018 |
|
|
 |
 |
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with 2.4 G / ZigBee Specifications
- Wireless Transmission Range up to 700 m
- External DIP and Rotary Switches for easy Configuration
- GUI Configuration Software (Windows Version)
- 8 Differential Analog Input Channels (TC, mV, V)
- Individual Channel Configuration
- Open Thermocouple Detection
- Overvoltage Protection up to 240 Vrms
- ±4 kV ESD Protections (Conact for each Terminal)
- DIN-Rail Mounting
|
|
|
|
 |
The ZT-2018 a wireless 16-bit, 8-channel differential analog input module with an extremely high quality protection mechanism where overvoltage protection is up to 240 Vrms. Input type includes current, voltage as well as thermocouple. and is much more suitable for harsh environments. Moreover, a newly-added feature that enables open thermocouple detection makes the ZT-2018 more attractive than ever. The ZT-2018 is also qualified 3000 VDC intra-module isolation. Users can easily configure the module address, protocol, checksum, ZT-PID, ZT-channel and type code settings using a combination of rotary and DIP switches. |
|
 |
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment. |
 |
|
 |
Communication Interface |
Wireless Standards |
ZigBee 2007 Pro |
Transmission Power |
11 dBm (FCC Certificated) (Max. 19 dBm) |
Antenna |
2.4 GHz - 5 dBi Omni-directional Antenna |
Transmission Range (LoS) |
700 m (Typical) |
Certification |
FCC/FCC ID, CE (RED excluded) |
Max. Slaves in a ZigBee Network |
255 |
ZB-100R/ZB-100T Support |
- |
Protocols |
Supports DCON and Modbus RTU Protocols |
Dual Watchdog |
Yes, Module (1.6 Seconds), Communication (Programmable) |
LED Indicators |
Power |
1 LED, red |
ZigBee Communication |
1 LED, green |
Power |
EMS Protection |
ESD, Surge, EFT |
Input Voltage Range |
+10 VDC ~ +30 VDC |
Power Consumption |
1.2 W Max. |
Mechanical |
Flammability |
Fire Retardant Materials (UL 94V-0 Level) |
Dimensions (L x W x H) |
87 mm x 33 mm x 110 mm |
Installation |
DIN-Rail |
Environment |
Operating Temperature |
-25 °C ~ +75 °C |
Storage Temperature |
-30 °C ~ +80 °C |
Relative Humidity |
10 ~ 90% RH, Non-condensing |
|
|
 |
Analog Input |
Input Channels |
8 Differential |
Input Types |
±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1V,
±2.5 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA or Thermocouple
(J, K, T, E. R. S, B, N, C, L, M, LDIN43710) (Requires Optional External 125 Ω Resistor for current input). |
Resolution |
16-bit |
Sampling Rate |
10 Samples/Sec. (Total) |
Accuracy |
±0.1% of FSR |
-3dB Bandwidth |
15.7 Hz |
Common Mode Rejection |
86 dB min. |
Normal Mode Rejection |
100 dB |
Input Impedance |
>400 kΩ |
Open Thermocouple Detection |
Yes |
Overvoltage Protection |
240 Vrms |
Intra-module Isolation, Field-to-Logic |
3000 VDC |
|
|
 |
ZT-2018/S CR |
Wireless 8-channle Analog Input Module with High Voltage Protection (ZigBee Router) (RoHS)
include ZT-2018 module and CN-1824 daughter board |

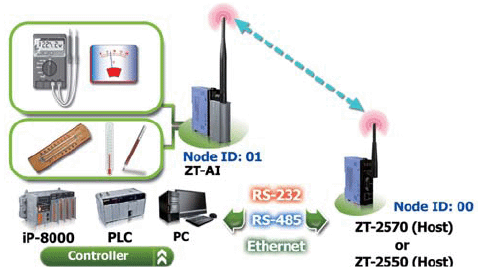

Important Note: ZigBee Data Acquisition modules need a ZigBee host converter to coordinate the data transmission route.
Please remember to order a ZT-2550, ZT-2570, or ZT-USBC ZigBee host converter when you purchase ZigBee Data Acquisition products. |
|
|
 |
MDR-20-24 |
24 VDC/1.0 A, 24 W Power Supply with DIN-Rail Mounting |
ZT-2510 CR |
ZigBee Repeater (RoHS) |
ZT-2550 CR |
RS-485/RS-232 to ZigBee Converter (Host) |
ZT-2570 CR |
Ethernet/RS-485/RS-232 to ZigBee Converter (Host) (RoHS) |
External Antenna |
2.4GHz External Antenna, RP SMA Male (Plug) |
Extension Cable |
3S00x-1, RG58A/U x Meter Long RP-SMA (male) to RP-SMA (female) |
|
|
|
|
|
|
|
