I-87H17W

8-channel HART Current input Module



The I-87H17W is a HART analog input module. It can measures 4~20mA current and acts as a HART master, allowing communication with HART field devices. Its user-friendly design saves a lot of work when measuring current due to a built-in resistor. Now, users can measure current directly without any external resistor. The baud rate of I-87H17W is changeable and supports DCON protocol. Otherwise, ICP DAS also provides API library for users to develop their own program by VC,VB , C# or VB.Net environment.





  • Current Measuring
  • Petrochemical Industry Application
  • Environment Monitoring
  • Tunnel Monitoring
  • Building Monitoring etc.

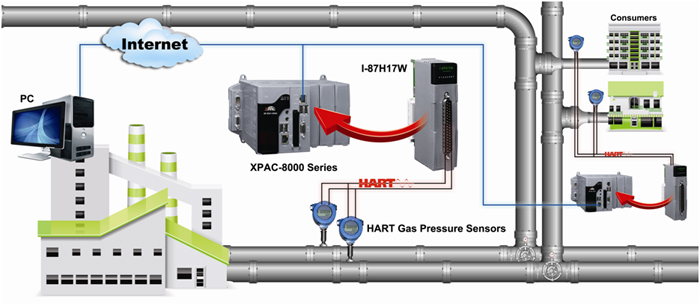

The XPAC-8000 controller and I-87H17W with eight HART AI channels are used to collect these HART manometers data quickly and easily. Through Ethernet, the control center can monitor all gas pipeline pressure remotely.





  • Analog input capability with or without HART
  • Real-time HART data acquisition
  • Full read/write access to all device information
  • Support 4 ~ 20 mA current input
  • 2 or 4 wire transmitters of HART
  • With a built-in resistor
  • Open wire detection
  • 4 kV ESD protection
  • 2500 VDC intra-module isolation
  • Built-in Watchdog
  • RoHS compliance
  • Support DCON Protocol
  • Provide API library and demos

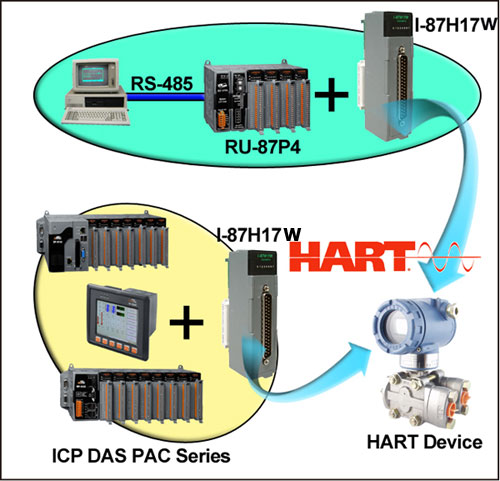

  • Support XPAC, WinPAC, I-87Kx,RU-87Px, USB-87Px, ET-87Px series




Analog Input
Input Channels
8 Differential 4-20 mA input channels
HART Wiring
2 or 4 wire transmitters
HART Response Time
1s per single channel
Input Type
4~20mA
Resolution
16-bit
Accuracy / Sampling Rate
+/- 0.1% FSR / 10Hz (Total)
Zero Drift
+/- 20μV/ °C
Span Drift
+/- 25μV / °C
Common Mode Rejection
86 dB
Normal Mode Rejection
100 dB
Input Impedance
400 Ohms
Common Voltage
-200V to +200V
Open Wire Detection
Yes
4KV ESD Protection
Yes, Contact for each terminal.
Isolation
UL1577 Spec.
Interface
Interface
RS-485
Format
N81, N82, E81, O81
Baud Rate
1200 ~ 115200bps
Watchdog
Dual Watchdog
Yes, Module(1.6 sec) and Communication(Programable)
LED
LED Display
1 LED as Power Indicator
8 LED as HART Communication Indicator
Power
Power Consumption
Maximum : 1.8W
Mechanism
Dimensions
30mm x 102mm x 115mm(W x L x H) Detail
Environment
Operating Temperature
-25 to 75 °C
Storage Temperature
-30 to 75 °C
Humidity
5 to 95% RH, non-condensing




I-87H17W-G CR
8-channel HART Current Input Module (Gray Cover) (RoHS)




DN-37-A
I/O Connector Block with DIN-Rail Moun ting and 37-pin D-sub Connector (pitch:5.08mm)
DN-37-381-A
I/O Connector Block with DIN-Rail Moun ting and 37-pin D-sub Connector (pitch:3.81mm)
CA-3705A
Male-Female D-sub cable 0.5 M
CA-3710A
Male-Female D-sub cable 1 M
CA-3715A
Male-Female D-sub cable 1.5 M




Converters
USB, RS-232, Fiber Optical to RS-485 Converters and Repeaters
Power Supply
24 VDC power supply
Relay Module
External relay modules for I-7000 DO module
Learning Kit
Beginner learning kit
Application Books
Application books designed with our products
