HRT-310
HRT-310-UTA ~ Available Soon ~

HRT-310 : Modbus RTU/ASCII to HART Gateway (Upright)
HRT-310-UTA : Modbus RTU/ASCII to HART Gateway (Upright, for -40 ℃ application)



HRT-710 (HART-710)
HRT-710-UTA ~ Available Soon ~

HRT-710 : Modbus RTU/ASCII to HART Gateway
HRT-710-UTA : Modbus RTU/ASCII to HART Gateway (for -40 ℃ application)




The HRT-710 / HRT-310 Gateway is specially designed for the master device of HART protocol. It allows the Modbus master to access the HART devices. These HART devices may be a transmitter, an actuator and so forth. In addition, we also provide the software utility, HG_Tool, for module configuration and HART device diagnosis. By using these modules, users can integrate their HART devices into Modbus network easily and quickly.



Applications
  • Industrial Automation
  • Factory Automation
  • Process Automation
  • Etc…

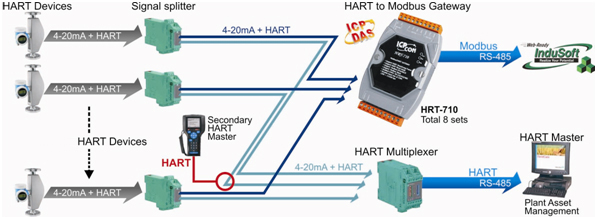

HRT-710 / HRT-310, a HART master to Modbus slave gateway, is applied to integrate the information from these HART flow meters into the customer's HMI system. Through the HRT-710 / HRT-310, all of the HART flow meters will be regarded as Modbus slave devices and the HMI system can use the built-in Modbus RTU communication to access these HART flow meters easily.

More than 250 HART device information needs to be integrated to surveillance center. In PC side, uses 3 pieces of PCI cards (VXC-148U, for 24 channels RS-485 expansion). I-2542A and I-2542B (RS-485 to Fiber) are used in every RS-485 channel to extend RS-485 communication distance. There are about 20 pieces of HRT-710 modules used in every RS-485 channel with the different station ID. Through the structure, SCADA or HMI system can integrate all HART device information via Modbus protocol easily and quickly.



Features
  • Support HART Short/Long frame
  • Support HART Burst mode
  • Allow two HART Masters
  • Working in point-to-point or multi-drop HART mode
  • Connecting up to 15 HART modules
  • Support Modbus RTU and ASCII format
  • Support Modbus Slave mode
  • Support firmware update via Com Port. (FW_v1.2 and HW_v1.2)
  • Support on-line replacement of HART devices. (FW_v1.5)
  • Support acquire Long Frame Address automatically (FW_v1.5)
  • Isolated COM Port : RS-232/422/485
  • Provide LED indicators
  • Built-in Watchdog
  • DIN Rail or Wall Mounting



 HRT-710 HRT-310
Din Rail Installation Horizontal Upright
HART Signal Standard Enhanced send/receive signal
(For long distance comm.)
Loop Power No Support
(module provides +30V output)
Built-In Resistor 250 Ohm (1/4W) 250 Ohm (1W)


Utility
  • Provide the system and communication configuration of HRT-710 / HRT-310
  • Provide the Modbus address table for HART command data
  • Provide the diagnostic information of HRT-710 / HRT-310 module and HART device
  • Provide send / receive HART command to access HART device
  • Provide "Load/Save" module configuration file to apply to other HRT-710 / HRT-310 quickly

　



Modules Support

Support the following Modbus commands.

Code
Name
Description
01
Read Coil Status
Read the ON/OFF status of discrete outputs in the slave
02
Read Input Status
Read the ON/OFF status of discrete inputs in the slave
03
Read Holding Registers
Read the binary contents of holding registers in the slave
04
Read Input Registers
Read the binary contents of input registers in the slave
05
Force Single Coil
Write a single output to either ON or OFF in the slave
06
Preset Single Register
Write an integer value into a single register in the slave
15
Force Multi. Coils
Write each coil in the sequence of coils to either ON or OFF in the slave
16
Preset Multi. Registers
Write a block of contiguous registers in the slave





Hardware Specifications
Model Name HRT-710 HRT-310
UART Interface
COM Port RS-232(3 wires) / RS-422 / RS-485
Baud Rate (bps) 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Protocol Modbus RTU / Modbus ASCII
Connector 9-pin screwed terminal block  4-pin screwed terminal block
HART Interface
HART Channel 1
HART Interface 2-pin screwed terminal block
HART Device 2-wired or 4-wired HART devices
HART Topology Point to Point or Multi-Drop
HART Data Only Digital Data
HART Frame Type Short and Long Frame
Burst Mode Supported
Max. HART Device 15
Isolation UL1577 Spec.
Loop Resistor 250 Ω (1/4W) by Jumper 250 Ω (1W) by Dip-Switch
Loop Power No Yes (module provides +30V output)
Power
Power supply Unregulated +10 ~ +30 VDC
Protection Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption 1 W  3.5W (Max.)
Mechanism
Installation DIN-Rail or Wall Mounting (Horizontal) DIN-Rail (Upright)
Dimensions 72 mm x 35 mm x 121 mm (W x L x H) Detail 25 mm x 116 mm x 120 mm (W x L x H)
Environment
Operating Temp. -25 ℃ ~ +75 ℃
Storage Temp. -30 ℃ ~ +80 ℃
Humidity 5% ~ 95% RH, non-condensing


Ordering Information
HRT-710 CR
 Modbus RTU/ASCII to HART Gateway (RoHS)
HRT-310 CR
 Modbus RTU/ASCII to HART Gateway (Upright) (RoHS)
HRT-710-UTA CR
 Modbus RTU/ASCII to HART Gateway (RoHS) (for -40 ℃ application)
HRT-310-UTA CR
 Modbus RTU/ASCII to HART Gateway (Upright) (RoHS) (for -40 ℃ application)
