I-7570

Serial to HART converter



I-7570 is a Serial to HART converter and can be used as a HART master with HC_Tool utility or a HART slave with HDS utility.

(1) I-7570 as HART Master :

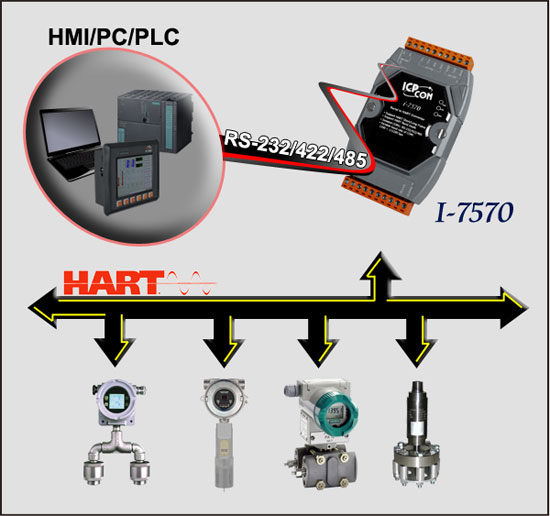

It allows users to access the HART slave by using RS-232 / RS-422 / RS-485. These HART slave devices may be a transmitter, actuator, current output device and so forth. In addition, by using the I-7570 utility tool, users can configure module and test HART communication easily and quickly.

(2) I-7570 as HART Slave :

HART Device Simulator (called HDS) is the HART device simulation software developed by ICP DAS. It can be used to simulate multi HART slave devices simultaneously to exchange data with HART master device by using ICP DAS HART converter (like: I-7567 / I-7570 / I-7547) connected to any COM port (USB / 232 / 485 / Ethernet). By this way, users can develop or verify the HART master program without any HART slave device.

HDS (HART Device Simulator) : http://oldweb.icpdas.com/root/product/solutions/industrial_communication/fieldbus/hart/converter/hds.html

Applications
  • Current Measuring
  • Petrochemical Industry Application
  • Environment Monitoring
  • Tunnel Monitoring
  • Monitor system
  • Building Monitoring

FDT (Field Device Tool)

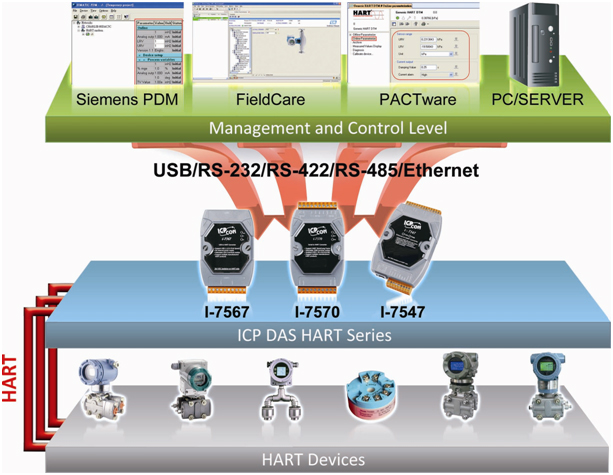

FDT (Field Device Tool) standardizes the communication and configuration interface between all field devices and host systems. FDT provides a common environment for accessing the devices' most sophisticated features. Therefore, by using ICPDAS HART converters, I-7567, I-7570 or I-7547, supporting FDT, users can easily and quickly construct HART online control and configuration system.



Features
  • Support HART Short / Long frame
  • Support HART Burst mode
  • Support point-to-point or multi-drop HART mode
  • Support connecting up to 15 HART slave devices
  • Allow two HART masters

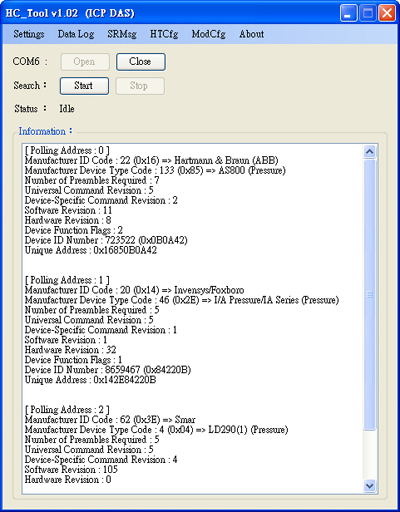

  • Provide utility tool for module configuration and HART communication
  • Provide PWR / TxD / RxD indication LED
  • Isolated COM 1: RS-232 / RS-422 / RS-485
  • 4KV ESD Protection
  • Built-in Watchdog
  • Selectable 250Ω load resistor
  • Support HART OPC Server provided by HART COMMUNICATION FOUDATION
    ( HART OPC Server : http://www.hartcomm.org/hcf/documents/documents_opc.html => for 30 day trial of the full licensed version )
  • Support FDT (Field Device Tool) technique and the below FDT software have been tested OK

(1) PACTware (PACTware)
(Free download: http://www.pactware.com/en/products/pactware.html)

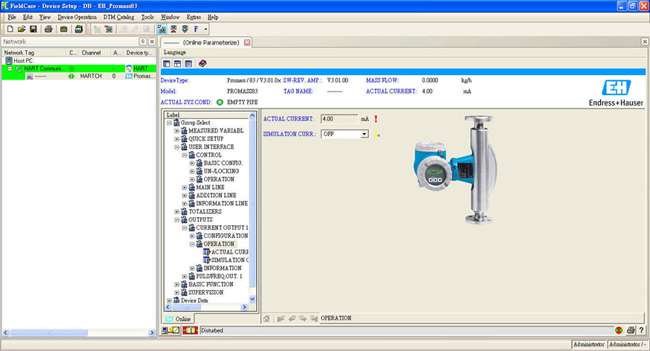

(2) FieldCare (Endress+Hauser)
(Download: http://portal.endress.com/wa010/FieldCareDownloadGui/)

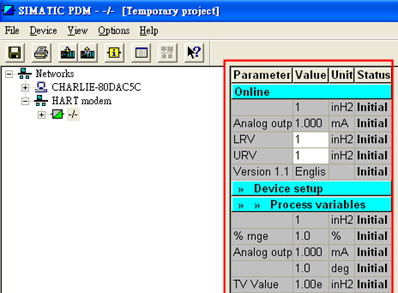

(3) PDM (Seimens)
(Download: http://support.automation.siemens.com/cn/llisapi.dll?
func=cslib.csinfo&objid=35125986&lang=en&siteid=cseus&aktprim=0&objaction=csopen&extranet=standard&viewreg=CN)



Utility
  • Search all HART devices automatically

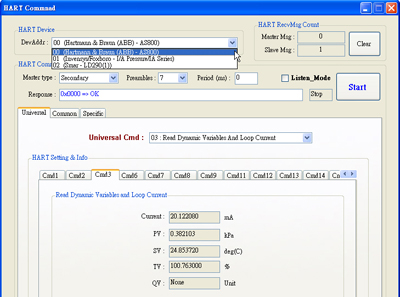

  • Provide HART Universal & Common-Practice command (v6.0) for HART device configuration
  • Provide module configuration and HART communication easily and quickly
  • Provide data logging for HART communication

　



Hardware Specifications
UART Interface
COM 1
RS-232(Tx / Rx / GND) / RS-422 / RS-485
COM 1 Connector
9-pin screwed terminal block
Baud Rate (bps)
1200 bps (For FW_v1.1)
1200 ~ 115200bps (For FW_v1.1 / HW_v1.2)
Data Format
O(odd parity), 8(data bit), 1(stop bit) (For FW_v1.1)
N/O/E(parity), 8(data bit), 1/2(stop bit) (For FW_v1.1 / HW_v1.2)
HART Interface
HART Interface
2-pin screwed terminal block
HART Channel
1
LED
Round LED
PWR / TxD / RxD
Power
Power supply
Unregulated +10 ~ +30 VDC
Protection
Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption
1 W
Mechanism
Installation
DIN-Rail or Wall Mounting
Dimensions
121 mm x 72 mm x 35 mm (H x W x D)
Environment
Operating Temp.
-25 ℃ ~ +75 ℃ (-13 to 167 ℉)
Storage Temp.
-30 ℃ ~ +85 ℃ (-22 to 185 ℉)
Humidity
5% ~ 95%, non-condensing


Ordering Information
I-7570 CR
Serial To HART Converter (Gray Cover) (RoHS)
