I-7567

USB to HART converter



I-7567 is a USB to HART converter and can be used as a HART master with HC_Tool utility or a HART slave with HDS utility.

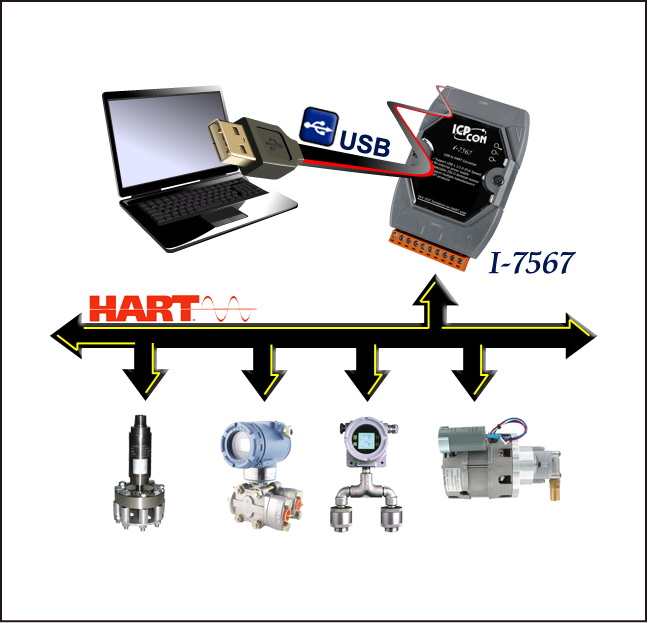

(1) I-7567 as HART Master :

It allows users to access the HART slave via virtual COM-port of PC. When connecting I-7567 to PC, PC will load the relevant device driver automatically (hot plug & play). Therefore, users can make data collection and processing of HART network easier and quicker by applying I-7567. In addition, by using the I-7567 utility, users can configure module and test HART communication easily.

(2) I-7567 as HART Slave :

HART Device Simulator (called HDS) is the HART device simulation software developed by ICP DAS. It can be used to simulate multi HART slave devices simultaneously to exchange data with HART master device by using ICP DAS HART converter (like: I-7567 / I-7570 / I-7547) connected to any COM port (USB / 232 / 485 / Ethernet). By this way, users can develop or verify the HART master program without any HART slave device.

HDS (HART Device Simulator) : http://oldweb.icpdas.com/root/product/solutions/industrial_communication/fieldbus/hart/converter/hds.html

Applications
  • Current Measuring
  • Petrochemical Industry Application
  • Environment Monitoring
  • Tunnel Monitoring
  • Monitor system
  • Building Monitoring

FDT (Field Device Tool)

FDT (Field Device Tool) standardizes the communication and configuration interface between all field devices and host systems. FDT provides a common environment for accessing the devices' most sophisticated features. Therefore, by using ICPDAS HART converters, I-7567, I-7570 or I-7547, supporting FDT, users can easily and quickly construct HART online control and configuration system.



Features
  • Support HART Short/Long frame
  • Support HART Burst mode
  • Support point-to-point or multi-drop HART mode
  • Support connecting up to 15 HART slave devices
  • Allow two HART masters
  • Provide utility tool for module configuration and HART communication
  • No external power supply (powered by USB)
  • Support firmware update via USB
  • Provide PWR / Tx / Rx indication LED
  • 4KV ESD Protection
  • Selectable 250Ω load resistor
  • Support HART OPC Server provided by HART COMMUNICATION FOUDATION
    ( HART OPC Server : http://www.hartcomm.org/hcf/documents/documents_opc.html => for 30 day trial of the full licensed version )
  • Support FDT (Field Device Tool) technique and the below FDT software have been tested OK

(1) PACTware (PACTware)
(Free download: http://www.pactware.com/en/products/pactware.html)

(2) FieldCare (Endress+Hauser)
(Download: http://portal.endress.com/wa010/FieldCareDownloadGui/)

(3) PDM (Seimens)
(Download: http://support.automation.siemens.com/cn/llisapi.dll?
func=cslib.csinfo&objid=35125986&lang=en&siteid=cseus&aktprim=0&objaction=csopen&extranet=standard&viewreg=CN)



Utility
  • Search all HART devices automatically
  • Provide HART Universal & Common-Practice command (v6.0) for HART device configuration
  • Provide module configuration and HART communication easily and quickly
  • Provide data logging for HART communication

　



Hardware Specifications
USB Interface
USB Port
USB Type B
Compatibility
USB 1.1 and 2.0 standard
Virtual COM Parameter
1200 bps, O(odd parity), 8(data bit), 1(stop bit)
HART Interface
Channel
1
Connector
2-pin screwed terminal block
Terminator Resistor
Selectable 250 Ω terminal resistor
4KV ESD Protection
Yes, Contact for each terminal.
Isolation Voltage
3000 VDC
LED
LED Display
PWR : Power Indicator
Tx : Received Data from USB Indicator
Rx : Received Data from HART Indicator
Power
Power supply
By USB Interface
Power Consumption
Maximum : 1.5W
Software
Driver
Windows 2000 / XP / Vista / 7 (32/64 bit)
Mechanism
Installation
DIN-Rail or Wall Mounting
Dimensions
108 mm x 72 mm x 35 mm (H x W x D)
Environment
Operating Temp.
-25 ℃ ~ +75 ℃ (-13 to 167 ℉)
Storage Temp.
-30 ℃ ~ +75 ℃ (-22 to 167 ℉)
Humidity
5% ~ 95%, non-condensing


Ordering Information
I-7567 CR
 USB To HART Converter (Gray Cover) (RoHS)
