I-7547

Ethernet(TCP/IP) to HART Converter



I-7547 is an Ethernet to HART converter and can be used as a HART master with HC_Tool utility or a HART slave with HDS utility.

(1) I-7547 as HART Master :

When connecting I-7547 to PC via Ethernet and install the VxComm utility, it will allow users to access the HART devices via virtual COM-port of PC. Therefore, users can make data collection and processing of HART network easier and quicker by applying I-7547. In addition, we also provide the free HC_Tool utility for module configuration and HART communication test easily.

(2) I-7547 as HART Slave :

HART Device Simulator (called HDS) is the HART device simulation software developed by ICP DAS. It can be used to simulate multi HART slave devices simultaneously to exchange data with HART master device by using ICP DAS HART converter (like: I-7567 / I-7570 / I-7547) connected to any COM port (USB / 232 / 485 / Ethernet). By this way, users can develop or verify the HART master program without any HART slave device.

HDS (HART Device Simulator) : http://oldweb.icpdas.com/root/product/solutions/industrial_communication/fieldbus/hart/converter/hds.html

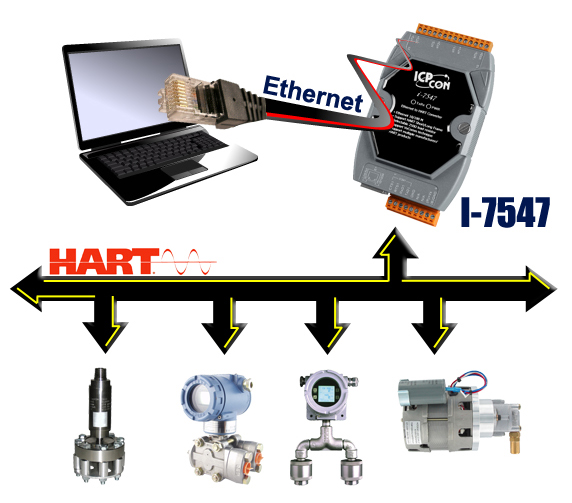

Applications
  • Current Measuring
  • Petrochemical Industry Application
  • Environment Monitoring
  • Tunnel Monitoring
  • Monitor system
  • Building Monitoring

FDT (Field Device Tool)

FDT (Field Device Tool) standardizes the communication and configuration interface between all field devices and host systems. FDT provides a common environment for accessing the devices' most sophisticated features. Therefore, by using ICPDAS HART converters, I-7567, I-7570 or I-7547, supporting FDT, users can easily and quickly construct HART online control and configuration system.



Features
  • Support HART Short/Long frame
  • Support HART Burst mode
  • Support point-to-point or multi-drop HART mode
  • Support connecting up to 15 HART slave devices
  • Allow two HART masters
  • Provide HC_Tool utility for module configuration and HART communication
  • Support firmware update via Ethernet
  • Provide PWR / TxRx indication LED
  • 4KV ESD Protection
  • Built-in Watchdog
  • Selectable 250Ω load resistor
  • Provide four HART channels
  • Support VxComm technique
  • Built-In Web Server for network setting
  • Support HART Pair-Connection (FW_v1.03)
  • Support FDT (Field Device Tool) technique and the below FDT software have been tested OK

(1) PACTware (PACTware)
(Free download: http://www.pactware.com/en/products/pactware.html)

(2) FieldCare (Endress+Hauser)
(Download: http://portal.endress.com/wa010/FieldCareDownloadGui/)

(3) PDM (Seimens)
(Download: http://support.automation.siemens.com/cn/llisapi.dll?
func=cslib.csinfo&objid=35125986&lang=en&siteid=cseus&aktprim=0&objaction=csopen&extranet=standard&viewreg=CN)



Utility
  • Search all HART devices automatically
  • Provide HART Universal & Common-Practice command (v6.0) for HART device configuration
  • Provide module configuration and HART communication easily and quickly
  • Provide data logging for HART communication

　



Hardware Specifications
Ethernet Interface
Ethernet Port 10/100 Base-TX with Auto MDI/MDI-X
Virtual COM Yes (VxComm Utility)
Built-In Web Server Yes
HART Interface
Channel 4
Connector 2-pin screwed terminal block for each HART port
Terminator Resistor Selectable 250 Ω terminal resistor for each HART port
4KV ESD Protection Yes, Contact for each terminal
Isolation Voltage 500 VDC
LED
LED Display PWR : Power Indicator
TxRx : Data Received from Ethernet / HART Indicator
Power
Power supply Unregulated +10 ~ +30 VDC
Protection Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption Maximum : 1.5W
Mechanism
Installation DIN-Rail or Wall Mounting
Dimensions 123 mm x 72 mm x 35 mm (H x W x D)
Environment
Operating Temp. -25 ℃ ~ +75 ℃ (-13 to 167 ℉)
Storage Temp. -30 ℃ ~ +80 ℃ (-22 to 176 ℉)
Humidity 5% ~ 95% RH, non-condensing


Ordering Information
I-7547 CR
 Ethernet To HART Converter (Gray Cover) (RoHS)
