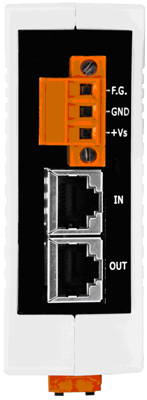

ECAT-2093 power supply and EtherCAT interfaces |
Name |
Signal |
F.G |
Frame ground |
GND |
Power supply: Ground 0V (from negative power contact) |
+Vs |
Power supply: +24 VDC (from positive power contact) |
|
|
IN |
EtherCAT signal input |
OUT |
EtherCAT signal output |
|
|
|
 |

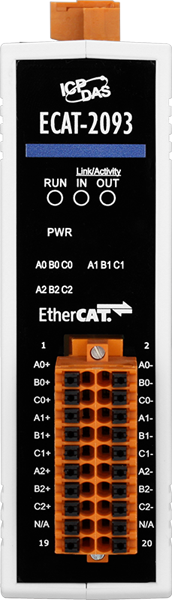

Connection interfaces of the encoder counter |
Name |
Signal |
Signal Description |
|
A0+ |
Input |
Encoder input A0+ |
Encoder Channel 0 |
A0- |
Input |
Encoder input A0- |
B0+ |
Input |
Encoder input B0+ |
B0- |
Input |
Encoder input B0- |
Z0+ |
Input |
Encoder input C0+ |
Z0- |
Input |
Encoder input C0- |
A1+ |
Input |
Encoder input A1+ |
Encoder Channel 1 |
A1- |
Input |
Encoder input A1- |
B1+ |
Input |
Encoder input B1+ |
B1- |
Input |
Encoder input B1- |
Z1+ |
Input |
Encoder input C1+ |
Z1- |
Input |
Encoder input C1- |
A2+ |
Input |
Encoder input A2+ |
Encoder Channel 2 |
A2- |
Input |
Encoder input A2- |
B2+ |
Input |
Encoder input B2+ |
B2- |
Input |
Encoder input B2- |
Z2+ |
Input |
Encoder input C2+ |
Z2- |
Input |
Encoder input C2- |
|
