ECAT-2091S connected to a stepper motor

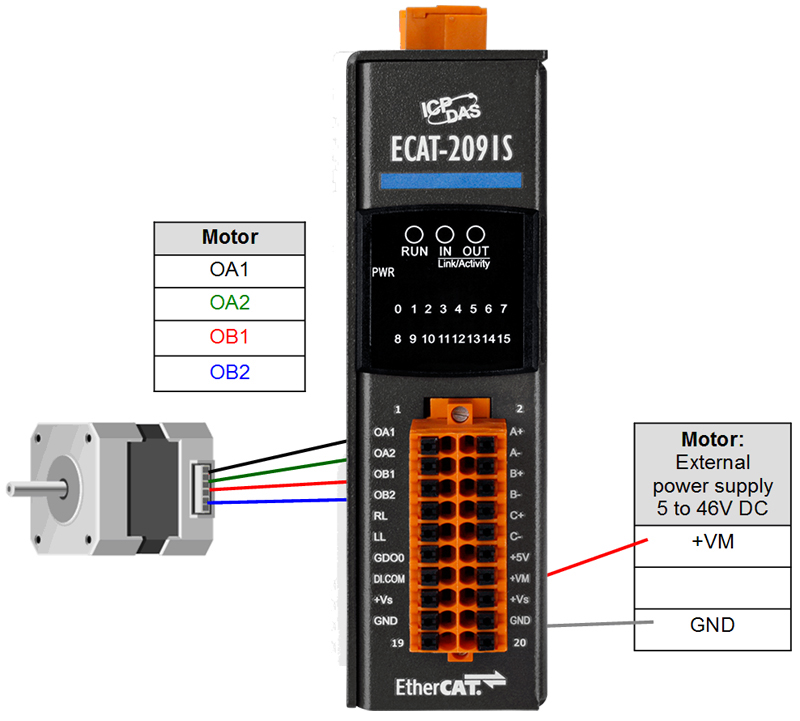

Wire connection

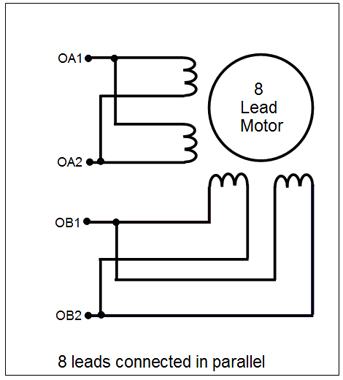

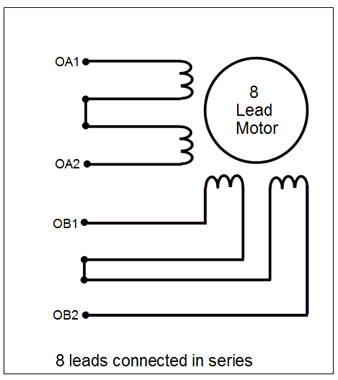

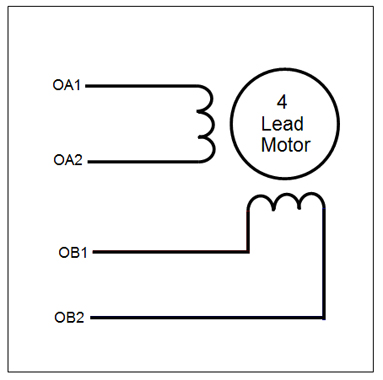

Four lead bipolar motor connected to the first axis output Eight lead bipolar motor connection (left: series, right: parallel)

Digital Input Channel

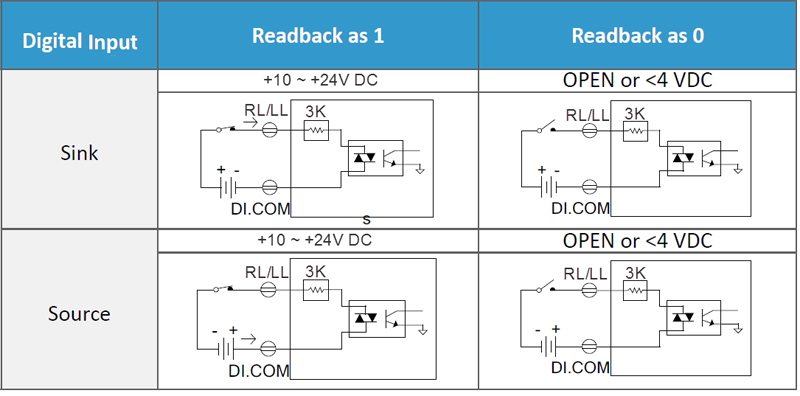

Digital inputs RL and LL

Digital Output Channel

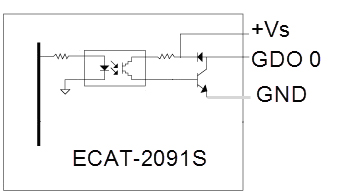

General purpose DO block diagram

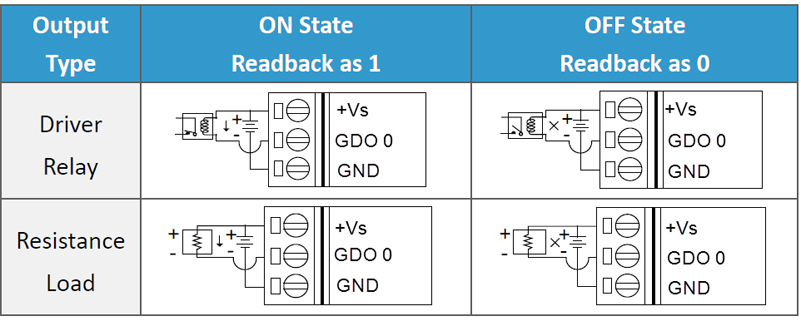

General purpose DO channel 0
