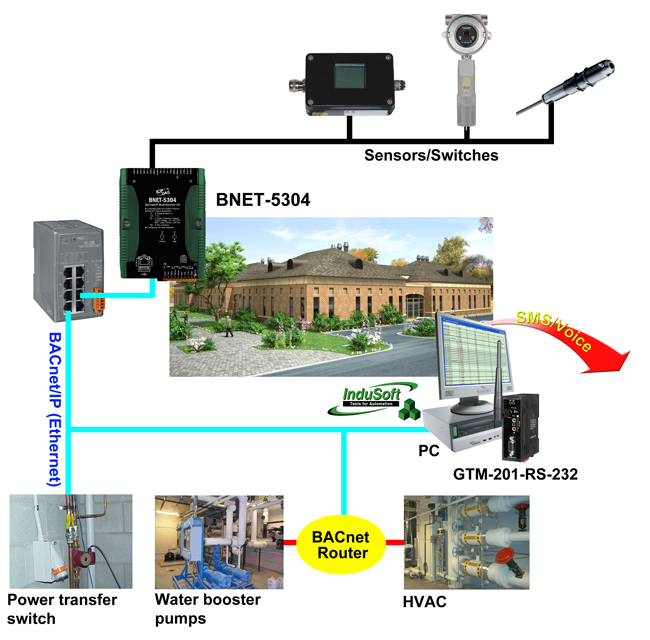

Applications
Hardware Specifications
Ordering Information



BNET-5304

Multi-function BACnet/IP module



The BNET-5304 is a multi-function BACnet/IP module with 6 AI channels, 1 AO channel, 4 DI channels and 4 DO channels. The module contains number of BACnet objects including Device, AI, AO, BI, and BO with multiple BIBBS (DS-RP-B, DS-RPM-B, DS-WP-B, DS-WPM, DS-COV-B…etc.) supported. The modules also feature a built-in web server which allows remote configuration by using a regular web browser for an easy and safe access at any time anywhere.









System
COM1 Reserved
Ethernet 10/100 Base-TX
Security ID and Password
Built-in Watchdog Yes
LED Indicator Power and Status
Protocol
BACnet BACnet/IP
BACnet Objects 1 Device, 6 AI, 1 AO, 4 BI, 4 BO
BIBB DS-RP-B, DS-RPM-B, DS-WP-B, DS-WPM-B, DS-COV-B, DM-DDB-B, DM-DOB-B, DM-DCC-B, DM-TS-B, DM-UTC-B, DM-RD-B
Analog Input
Channel 6
Wiring Single-Ended
Range +/- 5 V, 0 ~ +5 V
Resolution 12-bit
Sampling Rate 4 KHz
Input Impedance 1 M Ohm
Over Voltage Protection +/- 30 VDC
Isolation Non-isolated
Analog Output
Channel 1
Range +/- 5V
Resolution 12-bit
Output Capacity 20 mA
Isolation Non-isolated
Digital Input
Channel 4
Contact Dry
Dry Contact On Voltage Level Close to GND
Off Voltage Level Open
Overvoltage Protection 30 VDC
Digital Output
Channel 4
Type Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +10 VDC ~ 40 VDC
Max. Load Current 200 mA/channel at 25 °C
Overload Protection 1.4 A
Environmental
Dimensions (W x L x H) 91mm x132mm x 52mm
Operating Temp. -25 ~ +75 °C
Storage Temp. -30 ~ +85 °C
Humidity 5_90% PH, non-condesing
Power Input Range +10V to +30+10V to +30VDC
Power Consumption 4.8W (0.2A @ 24VDC)




BNET-5304
Multi-function BACnet/IP module with 6 AI, 1 AO, 4 DI, and 4 DO
