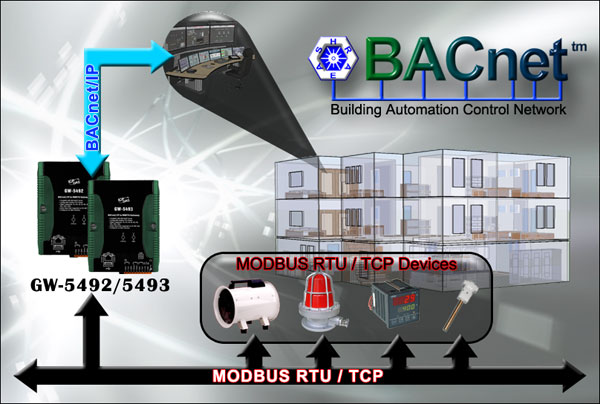

GW-5493 is a fully configurable universal Modbus RTU to BACnet/IP gateway. The GW-5493 includes BACnet/IP Server and Modbus TCP Client which is used to make Modbus TCP devices accessible on a BACnet network.
BACnet (Building Automation and Control Networking) protocol has been designed specifically to meet the communication needs of building automation and control systems for applications such as heating, ventilating, air-conditioning control…etc.
The GW-5493 contains a large number of BACnet objects (AI, AO, AV, BI, BO, BV, MSI, MSO, MSV) gives you flexibility in mapping Modbus RTU registers to any combination of BACnet objects. Multiple BIBBs (DS-RP-B, DS-RPM-B, DS-WP-B, DS-WPM, DS-COV-B…etc.) are supported. All the data transfer is configurable using a standard Web browser.
|
|
|
|
 |
|
| |
|
‧Building Automation
‧Heating, Ventilating, and Air-conditioning Control
‧Lighting Control
‧Access Control
‧Fire Detection Systems |
|
|
|
|
|
 |
|
| |
|
General Features
-
Quickly and Cost Effectively integrate networks
-
Provide PWR/Communication Status indication LED
-
Read/Write any standard Modbus register via BACnet
-
No Programming Required
-

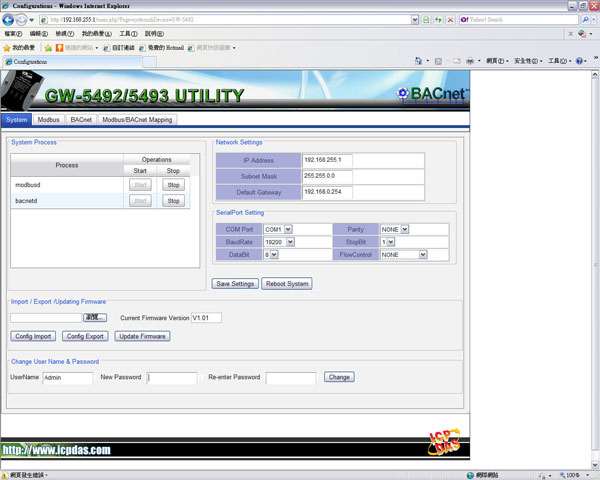

Modbus register mapping configured via web interface
BACnet
-
Fully Compliant with BACnet/IP Server
-
Supports up to 200 objects each of types: Analog Input, Analog Output, Analog Value, Binary Input, Binary Output, Binary Value, Multi-State Input, Multi-State Output,
-
BIBB (BACnet Interoperability Building Blocks) Supported: DS-RP-B, DS-RPM-B, DS-WP-B, DS-WPM-B, DS-COV-B, DM-DDB-B, DM-DOB-B, DM-DCC-B, DM-TS-B, DM-UTC-B, DM-RD-B
Modbus TCP
-
Fully User Configurable Modbus TCP Client
-
Supports Modbus coils, input register, holding registers
-
Supports for Function Code 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x10, 0x0F
|
|
|
|
 |
|
| |
|
-
Configured via standard web browser
-
Provide Modbus network configuration interface
-
Provide BACnet configuration interface
|
|
|
|
 |
|
| |
|
ICP DAD Fieldbus Gateway Comparison Table:
Support Protocol |
|
|
|
|
|
|
BACnet/IP Server |
BACnet/IP Server |
J1939 |
CANopen Master |
CANopen Slave |
CANopen Slave |
Modbus RTU Master |
Modbus TCP Client |
Modbus RTU Slave |
Modbus TCP Server/RTU Slave |
DCON Master |
Modbus RTU Master |
Comm.
Interface |
RS-232
RS-485
Ethernet |
RS-232
Ethernet
|
RS-232
RS-422
RS-485 |
RS-232
RS-485
Ethernet |
RS-232
RD-485 |
RS-232
RD-485 |
|
|
Support Protocol |
|
|
|
|
|
|
DeviceNet Slave |
DeviceNet Slave |
DeviceNet Master |
DeviceNet Slave |
PROFIBUS DP-V0 Slave |
PROFIBUS DP-V0 Slave |
DCON Master |
Modbus RTU Master |
Modbus TCP Server |
Modubs TCP / RTU / ASCII Master |
Modubs RTU/ASCII Master/Slave |
Modbus TCP / RTU/ ASCII Maste / Slave |
Comm.
Interface |
RS-232
RD-485 |
RS-232
RD-485 |
Ethernet |
RS-232
RS-422
RS-485 |
RS-232
RD-485 |
RS-232
RD-485 |
|
|
|
|
 |
|
| |
|
System |
CPU |
32-bit |
SDRAM |
64 MB |
Flash |
64 MB |
EEPROM |
16 KB |
Communication Ports |
COM1 |
RS-232 (RxD, TxD, and GND); Non-isolation |
Ethernet |
10/100Base-TX Ethernet Controller |
Protocol |
Modbus |
Modbus TCP Client |
BACnet |
BACnet/IP Server |
BACnet Objects |
AI, AO, AV, BI, BO, BV, MSI, MSO, MSV (Maximum: 200 each) |
BIBB Supported |
DS-RP-B, DS-RPM-B, DS-WP-B, DS-WPM-B, DS-COV-B, DM-DDB-B, DM-DOB-B, DM-DCC-B, DM-TS-B, DM-UTC-B, DM-RD-B |
Mechanical |
Dimensions (W x L x H) |
91mm x 132mm x 52mm |
Installation |
DIN-Rail |
Environmental |
Operating Temp. |
-25 ~ +75 °C |
Storage Temp. |
-30 ~ +85 °C |
Humidity |
5 ~ 90% RH, non-condensing |
Power |
Input Range |
+10 ~ +30 VDC |
Isolation |
1 kV |
Consumption |
4.8 W (0.2 A @ 24 VDC) |
|
|
|
|
 |
|
| |
|
|
BACnet/IP to Modbus TCP Gateway
|
|
|
| |
|
