ET-7200/PET-7200 Series Ethernet I/O Modules

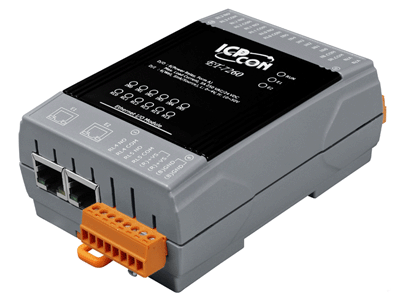

The ET-7200/PET-7200 series is the latest Ethernet I/O modules designed to replace and upgrade the original ET-7000/PET-7000 series of modules, and includes Analog Input/Output, Digital Input/Output, Power Relay, Thermocouple and RTD modules. The ET-7200/PET-7200 series provides full networking capabilities, and a variety of I/O functions, together with web-based Ethernet I/O monitoring and control modules, meaning that the modules can be remotely controlled using the Modbus TCP/UDP protocol via a 10/100 M Ethernet network. Modbus has become the de facto standard protocol for industrial communication, and is now the most commonly available means of connecting industrial electronic devices. This ensures that the ET-7200/PET-7200 series provides perfect integration with HMI, SCADA, PLC and other industrial control software systems.

Daisy Chain Ethernet Cabling

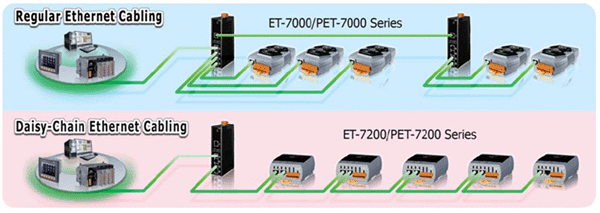

The ET-7200/PET-7200 series Ethernet I/O modules include two built-in Ethernet switch ports, which help to reduce implementation costs as there is no need to install an additional switch in order to daisy chain the ports or to extend the network via the Ethernet line.

LAN Bypass

ET-7200/PET-7200 series modules provide a LAN bypass feature that allows connected systems to continue to function in the event of power loss or other interruptions.

Power over Ethernet (PoE)

The PET-7200 series module features true IEEE802.3af-compliant (classification, Class 1) PoE technology that allows both power and data to be carried over a single Ethernet cable, meaning that a device can operate solely from the power it receives through the data cable.

LED Indicators for Digital Input/Output Status Monitoring

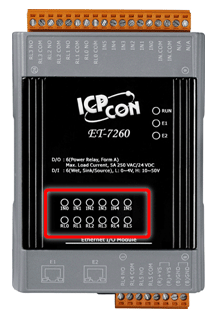

ET-7200/PET-7200 series modules provide LED indicators on the front panel of the module for monitoring system activity, the status of the Ethernet connections and the status of each Digital Input/Output channel.

Reset Button

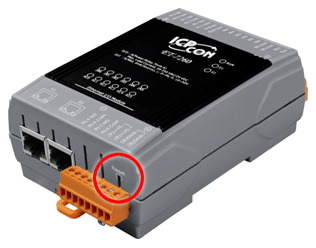

ET-7200/PET-7200 series modules contain a reset button that can be used to reset the module to the factory default settings. The reset button is especially useful when the User ID or password required to log in to the embedded web server has been lost or forgotten.

Two Pairs of Power Input Pins

To simplify the wiring requirements for cascading the power supply to other modules, the number of power input pins has been increased to four on ET-7200/PET-7200 series modules, configured as two pairs.

Comparison of features between the ET-7200/PET-7200 and the ET-7000/PET-7000 series

	ET-7000	PET-7000	ET-7200	PET-7200
Software
Embedded Web Server	Yes
Web HMI	Yes
I/O Pair Connection	Yes
Communication
Ethernet Port	1 x RJ-45, 10/100M Base-Tx		2 x RJ-45, 10/100 Base-TX, Switch Ports
Protocol	Modbus TCP and Modbus UDP
Security	ID, Password and IP Filter
Dual Watchdog	Module (0.8 seconds) and Communication (Programmable)
PoE Powered	-	Yes	-	Yes
LED Indicators
System Operation	Yes
Ethernet Link/Activity	Yes
DI/DO Status	-		Yes
Power
Reverse Polarity Protection	Yes
Powered from Terminal Block	+10 to +30 VDC	+12 to +48 VDC	+12 to +48 VDC
Power Input Pins	One pair		Two pairs
Mechanical
Dimensions (L x W x H)	123 mm x 72 mm x 35 mm		120 mm x 76 mm x 38 mm
Other
Reset Button	-		Yes

The ET-7217/PET-7217 module provides 8 differential Analog Input channels and 4 sink‐type Digital Output channels. The module provides a variety of configurable Analog Input channels, each of which can be individually configured to accept either current or voltage as input. The 4 Digital Output channels could be set as alarm output for short-circuit protection and overload protection.

The ET-7217-10/PET-7217-10 is an Analog Input module that provides 10 differential, or 20 single-ended Analog Input channels that are selectable via software. The module provides a variety of configurable Analog Input channels, each of which can be individually configured to accept either current or voltage as input.

The ET-7242/PET-7242 module provides 16 sink-type Digital Output channels. In some industrial applications, the Digital Output channels can be connected to the RM series relay module to switch inductive loads.

The ET-7251/PET-7251 module provides 16 wet contact Digital Input channels, each of which is non-isolated and can be used as a 32-bit counter. In addition, either sink- or source-type input can be selected via the wire connection.

The ET-7253/PET-7253 module provides 16 dry contact Digital Input channels, each of which is non-isolated and can be used as a 32-bit counter.

The ET‐7267/PET‐7267 provides 8 Form A Power Relay channels. It can be used safely in applications where hazardous voltages are present.
