New Product: ET-7202, ET-7215, ET-7226, ET-7252, ET-7255 and ET-7260
ET-7200 Series Ethernet I/O Modules
-
- The ET-7200 series is the latest in advanced Ethernet I/O modules designed to replace and upgrade the ET-7000 series of modules, and includes Analog Input/Output, Digital Input/Output, Power Relay and RTD modules. The ET-7200 series provides full networking capabilities and a variety of I/O functions, together with web-based Ethernet I/O monitoring and control modules, and the modules can be remotely controlled using the Modbus TCP/UDP protocol via a 10/100 M Ethernet network. Modbus has become the de facto standard protocol for industrial communication, and is now the most commonly available means of connecting industrial electronic devices. This ensures that the ET-7200 series provides perfect integration with HMI, SCADA, PLC and other industrial control software systems.
Daisy-Chain Ethernet Cabling

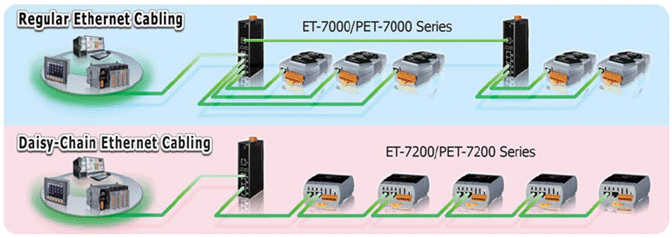

The most obvious difference between the ET-7200 series and the ET-7000 series is that ET-7200 series Ethernet I/O modules include two built-in Ethernet switch ports, which help to reduce implementation costs as there is no need to install an additional switch in order to daisy chain the ports or to extend the network via the Ethernet line.
- LAN Bypass
ET-7200 series modules also provide a LAN bypass feature that allows connected systems to continue to function in the event of power loss or other interruptions.
LED Indicators for Digital Input/Output Status Monitoring

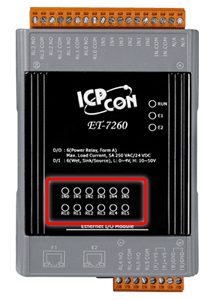

The ET-7200 series includes LED indicators on the front panel that are used to indicate system activity, the status of the Ethernet connections and the status of each Digital Input/Output channel.
- Reset Button

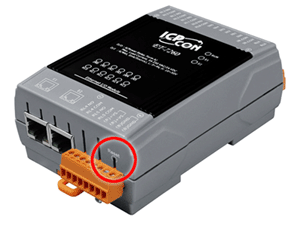

The ET-7200 series includes a reset button that can be used to reset the module to factory default settings. The reset button is especially useful if the User ID or password required to log in to the embedded web server has been lost or forgotten.
- Two Pairs of Power Input Pins
On the ET-7000 series, there was only one pair of power input pins, which sometimes made wiring with other modules difficult. To simplify the wiring requirements, the number of power input pins for the ET-7200 series has been increased to four, configured as two pairs.
-
Comparison of features between the ET-7200 and the ET-7000 series
| |
ET-7000 Series |
ET-7200 Series |
| Software |
| Embedded Web Server |
Yes |
| Web HMI |
Yes |
| I/O Pair Connection |
Yes |
| Communication |
| Ethernet Port |
1 x RJ-45, 10/100M Base-Tx |
2 x RJ-45, 10/100 Base-TX, Switch Ports |
| Protocol |
Modbus TCP and Modbus UDP |
| Security |
ID, Password and IP Filter |
| Dual Watchdog |
Module (0.8 seconds) and Communication (Programmable) |
| LED Indicators |
| System Operation |
Yes |
| Ethernet Link/Activity |
Yes |
| DI/DO Status |
- |
Yes |
| Power |
| Reverse Polarity Protection |
Yes |
| Powered from Terminal Block |
+10 ~ +30 VDC |
+12 ~ +48 VDC |
| Power Input Pins |
One pair |
Two pairs |
| Mechanical |
| Dimensions (L x W x H) |
123 mm x 72 mm x 35 mm |
120 mm x 76 mm x 38 mm |
| Other |
| Reset Button |
- |
Yes |
- Product Introduction: http://oldweb.icpdas.com/root/product/solutions/remote_io/ethernet_io/et-7000_introduction.html
Selection Guide: http://oldweb.icpdas.com/root/product/solutions/remote_io/ethernet_io/ethernet_io_selection.html
ET-7202: Ethernet I/O Module with 3 AI, 6 DI and 3 Power Relay Channels
-
- The ET-7202 is a multifunction module with 3 Analog Input channels, 6 Digital Input channels and 3 Relay Output channels. The module provides a variety of programmable Analog Inputs, each of which can be programmed to accept either current or voltage as input depending on the position of the corresponding jumper.
ET-7215: Ethernet I/O Module with 7 RTD Inputs
-
- The ET-7215 module is specifically designed for long-distance RTD measurement, and provides 7 RTD input channels, each of which can be connected to a variety of RTD sensors, including Pt100, Pt1000, Ni120, Cu100 and Cu1000. The ET-7215 features automatic compensation for three-wire RTD sensors, regardless of the length of the wires, together with open wire detection for RTD measurement.
ET-7226: Ethernet I/O Module with 6 AI, 2 AO, 2 DI and 2 DO Channels
-
- The ET-7226 is multifunction module with 6 Analog Input channels, 2 Analog Output channels, 2 Digital Input channels and 2 Digital Output channels. The module provides a variety of programmable Analog Inputs and Analog Outputs, each of which can be programmed to accept either current or voltage as input/output depending on the position of the corresponding jumper.
-
ET-7252: Ethernet I/O Module with 8 DI (wet contact) and 8 DO Channels
-
- The ET-7252 module provides 8 wet contact Digital Input channels and 8 source-type Digital Output channels. Each Digital Input can be used as a 32-bit counter and each output channel can be used to drive a load of up to 650 mA. The ET-7252 module also provides ±4 kV ESD protection as well as 2500 VDC intra-module isolation.
-
ET-7255: Ethernet I/O Module with 8 DI (wet/dry contact) and 8 DO Channels
-
- The ET-7255 provides 8 wet/dry contact Digital Input channels and 8 source-type Digital Output channels. Each Digital Input channel can be used as a 32-bit counter and each output channel can be used to drive a load of up to 650 mA. The ET-7255 module also provides ±4 kV ESD protection as well as 2500 VDC intra-module isolation.
-

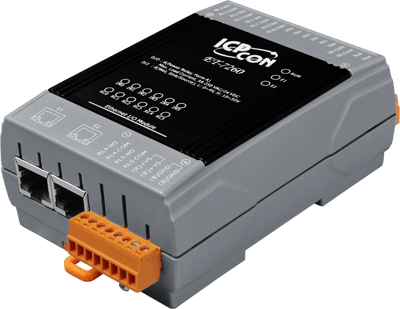

ET-7260: Ethernet I/O Module with 6 DI and 6 Power Relay Channels
-
- The ET-7260 provides 6 wet contact Digital Input channels and 6 Form A Power Relay channels. Each Digital Input channel can be used as a 32-bit counter. The ET-7260 module also provides ±4 kV ESD protection as well as 3000 VDC intra-module isolation.
