New Product: EIP-2051
Isolated 16-ch DI EtherNet/IP module

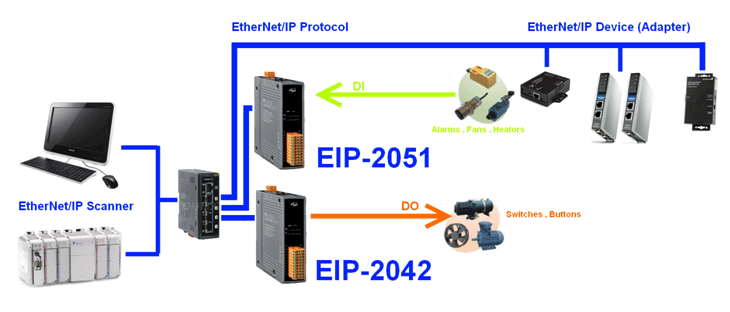

The EIP-2000 is an industrial remote I/O module series supporting the EtherNet/IP protocol. Users can seamlessly integrate these modules into the Ethernet network from the industrial floor to the enterprise. The EIP-2000 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation design protects the EIP-2000 against the harmful interference.

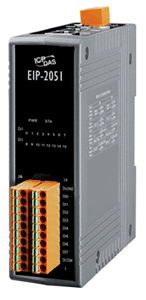

The EIP-2051 is a remote digital input module with 16 inputs. It is designed as an EtherNet/IP adapter. Users can obtain the input status as well as the connection status of the EIP-2051 by the LEDs indication. In addition, ICPDAS provides software utility to easily configure and test the EIP-2000 modules via Ethernet.

Features:

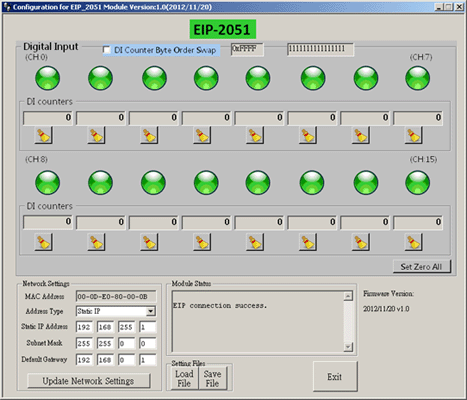

Utility Features:

Products	EIP-2055	EIP-2060	EIP-2042	EIP-2051
Digital Output
Output channel	8DO	6Relay (FormA)	16DO	N/A
Contact Rating	N/A	5 A@30 VDC 5 A@125 VAC	N/A	N/A
Load Voltage	+3.5 ~ 50 VDC	N/A	+3.5 ~ 50 VDC	N/A
Max Load Current	700 mA/ch	N/A	700 mA/ch	N/A
Overvoltage Protection	60 VDC	N/A	60 VDC	N/A
Digital Input
Input Channel	8DI	6DI	N/A	16DI
On Voltage Level	+10 ~ 50 VDC	+10 ~ 50 VDC	N/A	+10 ~ 50 VDC
Off Voltage Level	+4 VDC Max.	+4 VDC Max.	N/A	+4 VDC Max.
DI Counters	32 bits/ch	32 bits/ch	N/A	32 bits/ch

EIP-2051 CR

Isolated 16-ch DI EtherNet/IP Module (RoHS)
