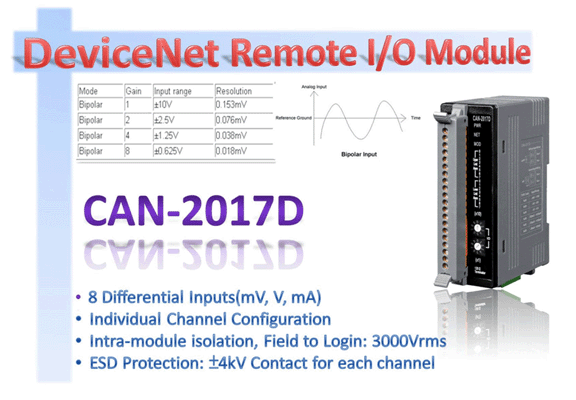

New Product: CAN-2017D, DeviceNet Remote I/O Module with 8 channel analog inputs


Introduction:
DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for the embedded network of the machine control, such as industrial machine control , automobile engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc.

The CAN-2017D follows DeviceNet specification Volume I/II, Release 2.0. User can access the analog input status and set the configuration via DeviceNet EDS file. CAN-2017D has 8-channel analog input and it can be used to various applications. By the DeviceNet masters from ICP DAS, you can quickly build a DeviceNet network to approach your requirements. For more information about the CAN-2017D, please refer to the following web site.
http://oldweb.icpdas.com/products/Remote_IO/can_bus/can-2017d.htm

Hardware Features:
  • Input Channels: 8
  • Input Type: ±10V, ±5V, ±1V, ±500mV, ±150mV, -20mA ~ +20mA (External 125Ω Resistor Required)
  • Resolution: 16-bit
  • Accuracy: ±0.1% FSR
  • Sampling Rate: 10 Samples/ sec (Total)
  • ESD Protection: ±4kV, Contact for each terminal.
  • Intra-module Isolation: Field to logic 3000 VDC

DeviceNet Communication Specifications:
  • DeviceNet general I/O slave device
  • Complies with DeviceNet specification Volume I, Release 2.0 & Volume II, Release 2.0, Errata 5
  • Group 2 Only Server (non UCMM-capable)
  • Supports Predefined Master/Slave Connection Set
  • 1 connection for Explicit Messaging
  • 1 connection for Polled I/O
  • 1 connection for Bit-Strobe I/O connection
  • Supports DeviceNet heartbeat and shutdown messages
  • Provide EDS file for standard DeviceNet master interface.
  • NET, MOD and PWR LED indictors
  • Baud Rate: 125 kbps, 250 kbps, 500 kbps, selected by rotary switch.

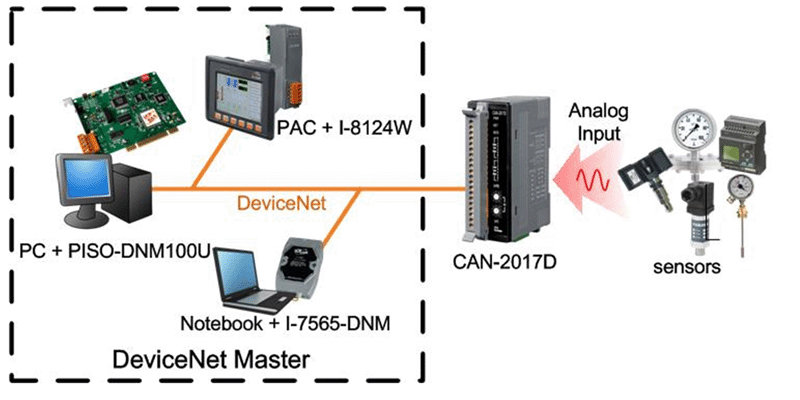

Application:

Related Product:
DeviceNet Master Series Modules
Model
Description
DeivceNet Master Library Support PISO-CAN serials and PEX-CAN serials with DeviceNet master library
PISO-DNM100U-D
PISO-DNM100U-T		 1 port intelligent Universal PCI DeviceNet master board
I-7565-DNM USB/DeviceNet master converter
I-8124W High speed 1 port intelligent DeviceNet master module
I-87124 1 Port High Performance DeviceNet Master Module
CA-0910-C 9-pin Female D-sub & 3-wire CAN bus cable (1M)

Other CAN-2000D Series DeviceNet Remote I/O Modules:
Model
Type
Description
CAN-2018D Analog Input Module 8-channel Thermocouple Input Module
CAN-2053D Digital Input Module 16-channel isolated sink/source digital input module
CAN-2057D Digital Output Module 16-channel isolated open-collector digital output module
CAN-2054D Digital Input / Output Module 8-channel isolated sink/source digital input and
8-channel isolated open-collector digital output module
CAN-2088D PWM Module 8-channel 500 kHz PWM and
8-channel digital input with high-speed counter module
CAN-2024D Analog Output Module 4-channel 14-bit analog output module
