Introduction:
DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for the embedded network such as industrial machine control, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc.

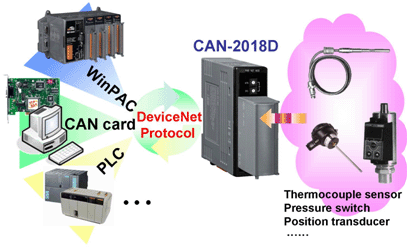

The CAN-2018D is an economic stand-along DeviceNet slave with 8-channel thermocouple input. It follows the ODVA DeviceNet specification Volume I/II, Release 2.0. Through the provided EDS file, the CAN-2018D can be easily applied by using standard DeviceNet master. Each channel supports the measurement of the voltage, current and thermocouple. It can satisfy most industrial applications.
By the DeviceNet masters of ICP DAS, you can quickly build a DeviceNet network to approach your requirements. We provide several kinds of DeviceNet master solutions, such as embedded controller, PCI / PCIe interface cards, PCI 104 solutions, and USB modules. For more information, please refer to the following web site.
CAN-2018D: http://oldweb.icpdas.com/products/Remote_IO/can_bus/can-2018d.htm
DeviceNet total solution: http://oldweb.icpdas.com/products/Remote_IO/can_bus/devicenet_series.htm |
