Introduction:
CANopen is one kind of the CAN-based network protocols and mainly used for embedded network of machine control, such as industrial machine control, aircraft engine monitoring, factory automation, medical equipment control, remote data acquisition, environmental monitoring, packaging machine control, and so forth.

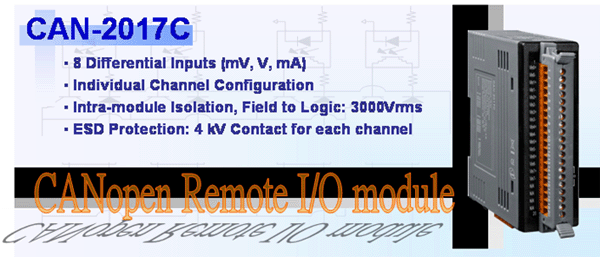

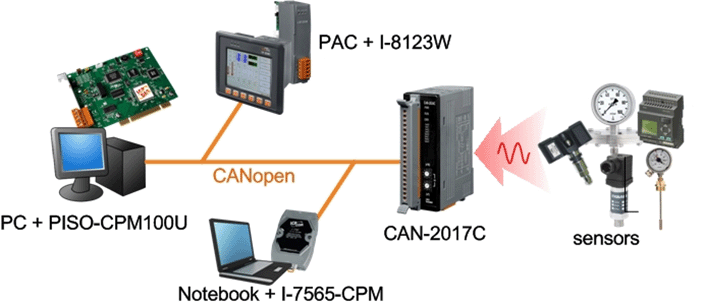

The CAN-2017C module follows the CiA DS-301 version 4.02 and DSP-401 version 2.1, and can be communicated by the standard CANopen protocols. Because it has passed the validation of the CiA CANopen Conformance Test tool, you can easily use it with the standard CANopen master interface of other manufacturers by applying the EDS file. The CAN-2017C has 8-channel differential analog inputs, and can be used to measure the voltage and current values. By applying the CANopen masters of ICP DAS, you can quickly build a CANopen network to approach your requirements. For more information about the CAN-2017C and other CANopen products, please refer to the following web site.

CAN-2017C: http://oldweb.icpdas.com/products/Remote_IO/can_bus/can-2017c.htm
CANopen total solutions: http://oldweb.icpdas.com/products/Remote_IO/can_bus/canopen_series.htm

Hardware Features:
