ICP DAS New Product: CAN-2024D, 4-ch 14-bit Analog Output DeviceNet Slave Module

Introduction:

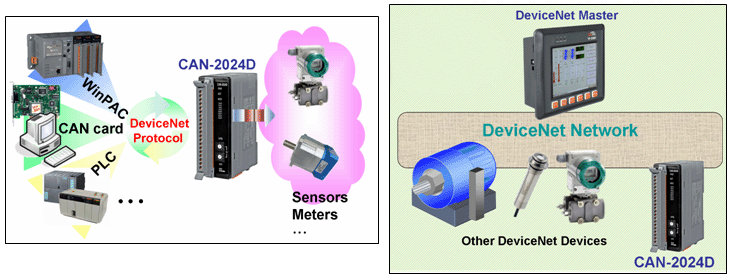

DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for embedded control system, such as industrial machine control, vehicle control system, factory automation, medical equipments control, remote data acquisition, environmental monitoring, etc.

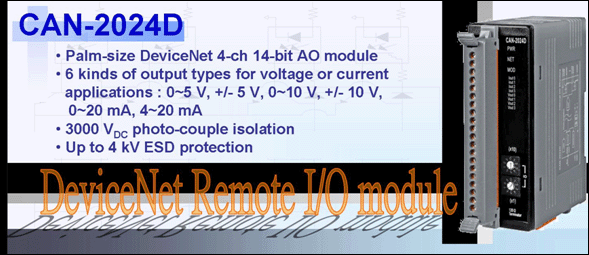

The CAN-2024D is an economic stand-along DeviceNet slave with 4-channel 14-bit analog output. It follows the ODVA DeviceNet specification Volume I/II, Release 2.0. Through the provided EDS file, the CAN-2024D can be easily applied by using standard DeviceNet master. Each AO channel can be used in either voltage-base or current-base to fit in with most industrial applications.

By the DeviceNet masters of ICP DAS, you can quickly build a DeviceNet network to approach your requirements. We provide several kinds of DeviceNet master solutions, such as embedded system, PCI and PCIe cards, PCI 104 solutions, and USB modules. For more information about DeviceNet products of ICP DAS, please refer to the following web site.

http://oldweb.icpdas.com/products/Remote_IO/can_bus/can_list.htm#3

Hardware Feature:

Output Channels: 4
Output Type: 0 ~ 5 V, +/- 5 V, 0~ 10 V, +/- 10 V, 0 ~ 20 mA, 4 ~ 20 mA
Resolution: 14-bit
Accuracy: +/- 0.1% FSR in voltage output; +/- 0.2% FSR in current output
Power on value and safe value: Yes
4 kV ESD Protection: Yes, Contact for each terminal.
Intra-module Isolation: Field to logic 3000 VDC

DeviceNet Features:

Comply with DeviceNet specification Volume I/II, Release 2.0
Group 2 Only Server DeviceNet subscriber
Support DeviceNet heartbeat and shutdown messages
Connection support:
1 connection for Explicit Messaging
1 connection for Polled I/O
1 connection for Bit-Strobe I/O
DeviceNet node ID and baud rate are set by rotary switches
Provide EDS file for DeviceNet master interfaces.
LED display for power, DeviceNet network status, terminator resistor status and AO channel status

ApplicationsG

DeviceNet Master Series Modules

Model	Description
I-7565-DNM	USB/DeviceNet Master Converter
I-8124W	Stand-alone DeviceNet master module with one CAN channel expansion for WinCon-8000/I-8000 series main control unit. Screwed terminal connector is used
PISO-DNM100U-D PISO-DNM100U-T	1 Port Intelligent DeviceNet Master Communication Board with DeviceNet Firmware Inside for universal PCI bus
PISO-CAN200-D PISO-CAN200-T	PISO-CAN200 serial CAN card with DeviceNet Master Library
PEX-CAN200i-D PEX-CAN200i-T	2 Port CAN Master PCI Express bus Communication Board with DeviceNet master Library

CAN-2000D Series DeviceNet Remote I/O Modules

Model	Type	Description
CAN-2053D	Digital Input Module	16-channel isolated sink/source digital input module
CAN-2057D	Digital Output Module	16-channel isolated open-collector digital output module
CAN-2054D	Digital I/O Module	8-channel isolated sink/source digital input and 8-channel isolated open-collector digital output module
CAN-2088D	PWM Module	8-channel 500 kHz PWM and 8-channel digital input with high-speed counters module
CAN-2024D	Analog Output Module	4-channel 14-bit analog output module

For more detail information, please refer to the following website.
CAN-2024D web site: http://oldweb.icpdas.com/products/Remote_IO/can_bus/CAN-2024D.htm
Download CAN-2024D Data sheet: http://oldweb.icpdas.com/products/Remote_IO/can_bus/datasheet/CAN-2024D.pdf
DeviceNet master and remote I/O web site: http://oldweb.icpdas.com/products/Remote_IO/can_bus/devicenet_series.htm
