ICP DAS New Product Release : CNT-CAN (CAN bus Connector) & CNT-PROFI (PROFIBUS Connector)
CNT-PROFI
PROFIBUS Connector
CNT-CAN
CAN bus Connector
~NEW~
~NEW~
The CNT-CAN/CNT-PROFI connectors are used to connect a CAN bus/PROFIBUS node to the CAN bus/PROFIBUS line.
Applications:

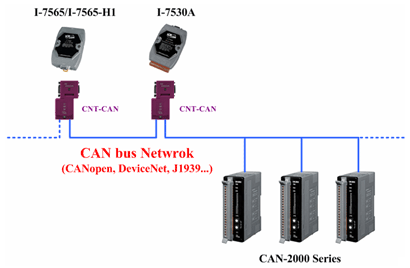

CAN bus network application

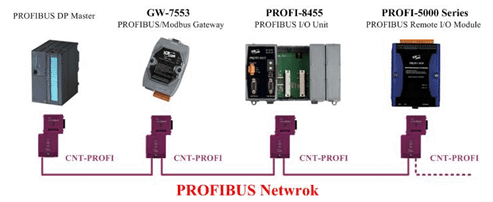

PROFIBUS network application
Hardware Specifications
CNT-CAN
CNT-PROFI
Cable outlet
90X cable outlet
90X cable outlet
Connector
9-pin, D-Sub female connector
9-pin, D-Sub male connector
Programming connection
9-pin, D-Sub male connector
None
Baud rate
10kbps ~ 1Mbps
9.6kbps ~ 12Mbps
Terminating resistor
Yes, by switch
Yes, by switch
Operating temperature
-25XC ~ 75XC
-25XC ~ 75XC
Storage temperature
-30XC ~ 80XC
-30XC ~ 80XC
Humidity
10 ~ 90% RH, non-condensing
10 ~ 90% RH, non-condensing
Ordering Information
CNT-PROFI
PROFIBUS Connector
CNT-CAN
CAN bus Connector
For more information, please visit the following website:
http://oldweb.icpdas.com/products/Remote_IO/can_bus/CNT-CAN.htm
http://oldweb.icpdas.com/products/Industrial/profibus/CNT-PROFI.htm
