MAVIS
IM-30/IM-100
IEEE 1394 Digital Industrial Cameras








MAVIS is a new and exciting vision product line from ICP DAS, designed specifically for industrial machine vision applications. The MAVIS IM series is designed to meet or exceed IEEE 1394 standards, while offering industry leading VGA resolution, high-performance frame rates, and a competitive price point! The Mavis IM30 offers 30fps for low-cost progressive-scan inspection applications, while the Mavis IM100 can offer up to 100fps, in full resolution for advanced high-speed inspection applications.







  • Monochrome progressive-scan for on-the-fly applications
  • Spectral Response


  • Acquisition speed up to 100fps in full resolution
  •

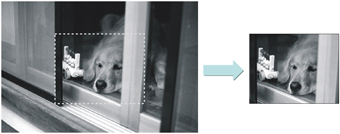

  • AOI (Area of Interest) image acquisition
  •

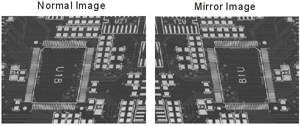

  • Mirror image acquisition
  •

  • Build-in 8MB memory buffer
  •

  • Flexible electric exposure control
  •

  • Robust external trigger I/O interface supported
  •

  • Free SDK API for VC, VB, BCB and VisualStudio.NET
  •

  • Compatible with NI-IMAQ-1394
  •

  • Driver supports Windows2000/XP
  •

  • Free EZView Utility
  •



  • AOI image acquisition
  • Mirror image acquisition
  •






     Item

    IM-30

    IM-100

     Image sensor

    1/2” CMOS Sensor Micron MT9V403, Pixel size: 9.9um x 9.9um

     Video output pixels

    640(H) x 480(V)

     Gain control

    0 ~ 12dB setting via communication command

     Power supply

    +12VDC normal (Supply via 1394 cable)

     Power consumption

    Max. ~ 1.7W at 12V

     Acquisition mode

    Free Run (exposure time programmable ), External random trigger

     Connector Interface

    6-Pin IEEE 1394 connector(for video and power)
    10-Pin GPIO (General Purpose Input/Output)connector

     GPIO connector

    TTL level with 2 input, 4 output and one +5VDC output

     Video mode

    Initial mode: 640 x 480 at 30fps
    Scalable mode: by AOI

    Initial mode: 640 x 480 at 100fps
    Scalable mode: by AOI

     Protocol

    IEEE 1394a version. 1.31 (transfer speed 400Mbps)

     Test image

    Gray value internal test pattern generated

     Exposure Time

    Programmable via IEEE 1394 bus

     Brightness

    Programmable via IEEE 1394 bus

     Temperature

    Operating temperature : 0°C ~ 50°C (32°F ~ 122°F)
    Storage temperature: -20°C ~ 60°C (-4°F ~ 140°F)

     Humidity

    Operating humidity : 20% ~ 80%, relative, non-condensing
    Storage humidity: 10% ~ 90%, relative, non-condensing

     EMC condition

    CE/FCC

     Dimension

    72.5mm (H) x 49mm(W) x 36.7mm(D) without Lens

     Weight

    120g without Lens

     Lens Adaptor

    C/CS Mount







     IM-30  IEEE 1394 Digital Camera (640 x 480, Monochrome, 30fps, Lens not included)
     IM-100  IEEE 1394 Digital Camera (640 x 480, Monochrome, 100fps, Lens not included)

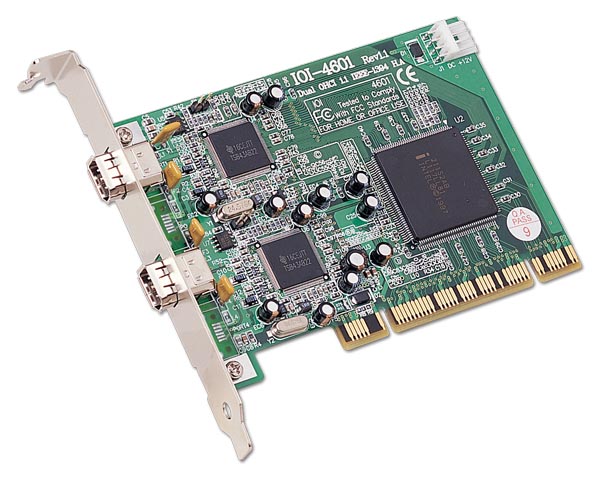

     IOI-4601-21  Dual 1394 Host Controller (TI Chipset) PCI Interface Card
     CA-1394-45  IEEE 1394 Latch Cable (6P-6P, L:4.5m)

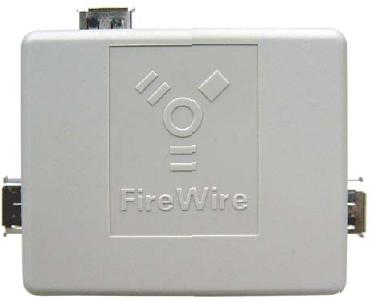

     1394R3B  IEEE 1394a (1port to 2ports) Repeater
