VISION BOX
VB-115/VB-216 Series

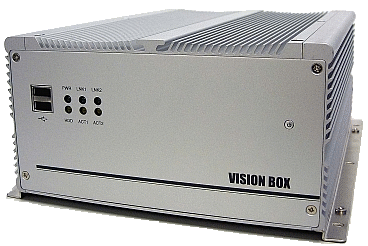

Fan-less embedded Vision Inspection Platform
|
|
|
 |
|
|
|
|
|
|
|
Introduction
The Vision Box series is a fan-less platform
designed and is ideally to
work with MAVIS IEEE 1394 industrial camera for AOI (Automation Optical
Inspection) applications.
The VB-115 offers Celeron M 1.5GHz CPU with
2GB DDR 266 memory and it
is ideal for being a general vision inspection equipment. The VB-216
offers 1.66GHz high-speed mobile Core Duo CPU with 2GB DDR2 533 memory
for advanced high-speed inspection applications.
|
|
Features
- Complete Fan-less cooling design
- Celeron M 1.5GHz or Core Duo 1.66GHz
Mobile,
- Low power consumption CPU
- 2GB DDR 266 or DDR2 533 memory
- 266x high speed CF card for Embedded
XP/SP2 operation
- Built-in 2 ports 1394a (400Mb per port)
- Dual-port LAN supported
- 2.5” HDD supported
- One 32-bit, 33MHz PCI Bus supported
|
|
|
|
| back |

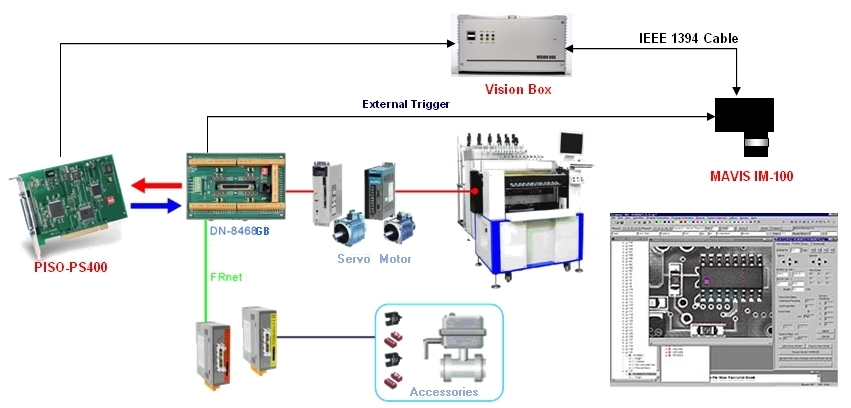

| Machine Automation Applications |
 |
|
|
| back |
| VISION BOX Series Specification |
| Model No. |
VB-115C |
VB-115H |
VB-216C |
VB-216H |
| CPU |
Intel
Mobile Celeron M 1.5GHz |
Intel
Core Duo T2300E 1.66GHz |
| Chipset |
Intel
852GM |
Intel
945GME |
| L2
Cache |
1MB |
2MB |
| Memory |
2GB
DDR 266 |
2GB
DDR2 533 |
| OS
Storage |
2GB 266x
Compact Flash Card |
2.5”
80GB IDE Hard Disk |
2GB 266x
Compact Flash Card |
2.5”
80GB SATA Hard Disk |
| OS
support |
Windows XP
Embedded SP2 |
OS excluded
Windows XP/SP2 Recommended |
Windows XP
Embedded SP2 |
OS excluded
Windows XP/SP2
Recommended |
| 1394 Port |
1394a ports (400Mbps bandwidth x 2 ports) |
| PCI Bus |
One 32-bit/33MHz PCI Slot, Not support PCI long
card. |
| Front
I/O Interface |
2 x USB 2.0 Ports, ATX power on/off switch,
Status LEDs (HDD Access, Power, LAN) |
| Rear I/O
Interface |
Rear
I/O Interface PS/2 connector, VGA
connector, 4 x USB 2.0 ports, 2 x 10/100 LAN ports, 4 x Serial Ports
via one DB44 connector (3 x RS-232, 1 x RS-232/422/485), DVI Interface,
1 x MIC-in, 1 x Speaker-out, 2-pin connector output for remote power
on/off switch, DC-in power connector for +12V ~ +30V DC power
input |
PS/2
connector, VGA connector, 4 x USB 2.0 ports, 2 x GbE LAN ports,
4 x Serial Ports via one DB44 connector (3 x RS-232, 1 x
RS/232/422/485) , DVI Interface, 1 x MIC-in, 1 x Speaker-out, 2-pin
connector output for remote power on/off switch, DC-in power
connector
for +12V ~ +30V DC power input |
| Power |
DC to DC power designed for on-board, supporting
from 12 to 30VDC
One External 120W AC adapter (Input: 100~240VAC, 2A, 50/60Hz;
Output:19VDC) |
| Dimensions |
195
mm (W) x 268 mm (D) x 107 mm (H) |
| Construction |
Fan-less design with aluminum cooling chassis |
| Environment |
Operating temperature
Ambient air temperature : 0°C to 40°C
VISION BOX case ( Surface Temperature of Chassis)
�� ● 5°C to 45°C (W/HDD)
�� ● -10°C to 50°C (W/CF
card only)
Storage temperature: -20°C to 80°C
Relative humidity: 10% to 90% (Non-condensing)
|
| Certification |
CE,
FCC A |
|
|
|
| back |
| Ordering Information |
| Model No. |
Product Description |
