Model: NS-205A
NS-205A
Unmanaged 5-Port Industrial Ethernet Switch







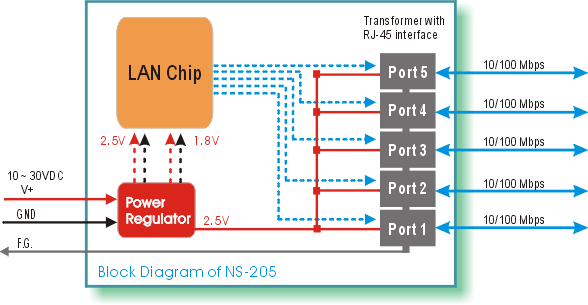

The NS-205A has 5 Ethernet Switching ports that support 10/100 Base-TX, with a 10/100M auto-negotiation feature and auto MDI/MDI-X function. It can connect 5 workstations and automatically switches the transmission speed (10 Mbps or 100 Mbps) for corresponding connections. The flow control mechanism is also negotiated. There is activity/link/data rate LEDs for each port to aid trouble-shooting. Port connectors are shielded RJ-45.It contains "soft start" function with overload protection, high-low voltage protection. The width of the NS-205A is just 33 mm, so it can be used where space is important.

The NS-205A provide +12 ~ 56 VDC power input to fit various power source.






  • Automatic MDI/MDI-X crossover for plug-and-play
  • Each port supports both 10/100 Mbps speed auto negotiation
  • Store-and-forward architecture
  • Full duplex IEEE 802.3x and half duplex backpressure flow control
  • Supports 4 kV Ethernet ESD protection and 1 kV EFT protection
  • Provides ESD protection 4 kV, EFT protection 3 kV and Surge protection 2 kV for power line
  • Power Input, +12 ~ +56 VDC
  • Operating Temperatures, -40 ¢XC ~ +75 ¢XC
  • Slim packaging fits on your DIN-Rail






Technology
Standards IEEE802.3, 802.3u, 802.3x
Processing Type Store & forward, wire speed switching
MAC Addresses 1024
Memory Bandwidth 3.2 Gbps
Frame Buffer Memory 512 Kbit
Flow Control IEEE802.3x flow control, back pressure flow control
Interface
RJ45 ports 10/100 BaseTX auto negotiation speed, F/H duplex mode,
and auto MDI/MDI-X connection
LED Indicators Power, 10/100M, Link/Act
Ethernet Isolation 1500 Vrms 1 minute
Frame Ground for EMS Protection Yes
Cable Ethernet : 2-pair UTP/STP Cat.3,4,5, EIA/TIA-568 100-ohm
Fast Ethernet : 2-pair UTP/STP Cat. 5, EIA/TIA-568 100-ohm
Redundant Power
Input Voltage Range +12 ~ +56 VDC (Non-isolated)
Power consumption 0.1 A@24 VDC
Protection Power reverse polarity protection
Frame Ground for EMS Protection Yes
Connection 3-Pin Removable Terminal Block
Mechanical
Casing Plastic
Flammability UL 94V-0
Dimensions 33 mm x 78 mm x 107 mm (W x L x H)
Installation DIN-Rail
Environmental
Operating Temperature -40 ~ +75 ¢XC
Storage Temperature -40 ~ +85 ¢XC
Ambient Relative Humidity 10% ~ 90% HR, non-condensing






NS-205A CR    Unmanaged 5-Port Industrial Ethernet Switch with Power Input +12 VDC ~ +56 VDC (RoHS)






GPSU06U-6    24 V/0.25 A, 6 W Power Supply
DIN-KA52F    24 V/1.04 A, 25 W Power Supply with DIN-Rail Mounting
MDR-20-24    24 V/1 A, 24 W Power Supply with DIN-Rail Mounting
DIN-KA52F-48    48 V/0.52 A, 25 W Power Supply with DIN-Rail Mounting
MDR-60-48    48 V/1.25 A, 60 W Power Supply with DIN-Rail Mounting
