Model: NS-200FC Series Model: NS-200FT Series
NS-200F Series
Industrial 10/100 Base-T to 100 Base-FX Media Converter





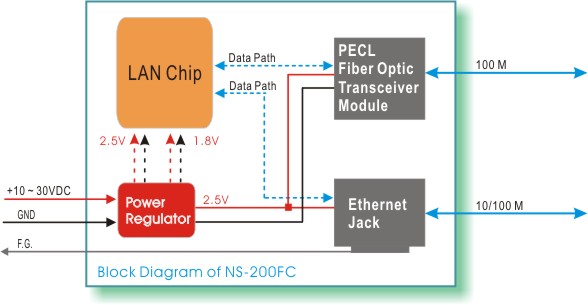

The NS-200F series is an Ethernet (10/100Base-TX) to Fiber Optic (100Base-FX) converter. The Ethernet supports 10/100M auto-negotiation feature and auto MDI/MDIX function.

The NS-200F series operates at either half or full duplex mode.

It contains "soft start" function with overload protection, high-low voltage protection. The width of the NS-200F series is just 32.30 mm, so it can be used where space is important.









  • Automatic MDI / MDI-X crossover for plug-and-play
  • Each port supports both 10/100 Mbps speed auto negotiation
  • Store-and-forward architecture
  • Full duplex IEEE 802.3x and half duplex backpressure flow control
  • Supports +10 ~ +30 VDC voltage
  • Supports operating temperatures from 0 ¢J ~ +70 ¢J
  • DIN-Rail mount for industrial usage





Spec


Technology
Standards IEEE802.3, 802.3u, 802.3x
Processing Type Store & forward wire speed switching
MAC Addresses 1024
Memory Bandwidth 1.4 Gbps
Interface
RJ45 port 10/100BaseT(X) auto negotiation speed, F/H duplex mode,
and auto MDI/MDIX connection
Fiber port 100 Base-FX

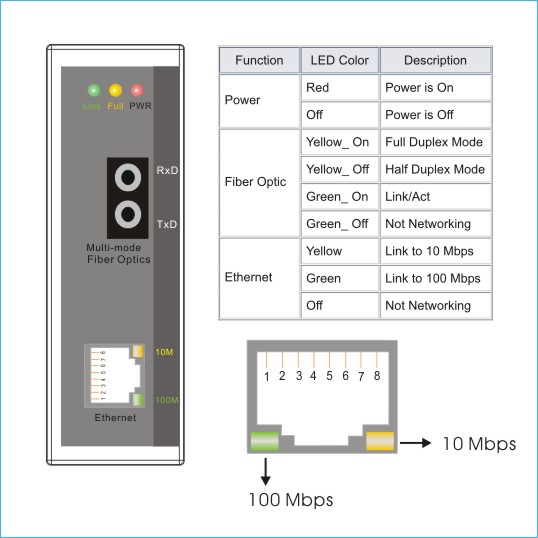

LED Indicators 10/100M, Link/Act, Full duplex/Half duplex(Fiber Port)
Ethernet Isolation 1500 Vrms 1 minute
Frame Ground for EMS Protection Yes

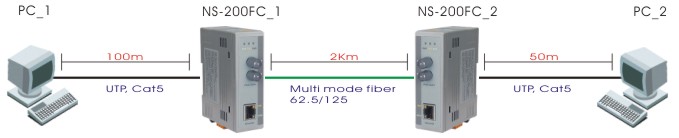

Multi Mode Multi mode fiber cables:50/125, 62.5/125 or 100/140 £gm
Distance :2 km, (62.5/125 £g mrecommended) for full duplex
Wavelength : 1300 or 1310nm
Min. TX Output:- 20 dBm
Max. TX Output: -14 dBm
RX Sensitivity: -34 to -31 dBm
Single Mode Single-mode fiber cables: 8.3/125, 8.7/125, 9/125 or 10/125£gm
Distance: 15 km, (9/125 £gm recommended) for full duplex
Wavelength: 1300 or 1310nm
Min. TX Output: - 15 dBm
Max. TX Output: -8 dBm
RX Sensitivity: -36 to -31 dBm
Ethernet Transmission distance Ethernet : 2-pair UTP/STP Cat.3,4,5, EIA/TIA-568 100-ohm
Fast Ethernet : 2-pair UTP/STP Cat. 5, EIA/TIA-568 100-ohm
Power
Input Voltage Range +10 ~ +30 VDC (Non-isolation)
Power consumption 0.12 A@24 VDC, +/- 5% arrowed with 100M Full duplex
LED Indicator Yes
Protection Power reverse polarity protection
Frame Ground for EMS Protection Yes
Mechanical
Case Plastic (Flammability UL 94V-0)

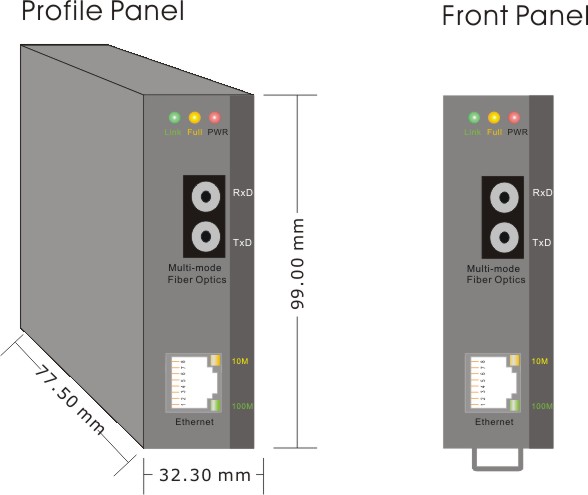

Dimensions 33 mm x 107 mm x 85 mm
Installation DIN-Rail
Environmental
Operating Temperature 0¢XC ~ +70¢XC
Storage Temperature -20 ~ +85¢XC
Ambient Relative Humidity 10% ~ 90% RH, non-condensing








NS-200FC CR    Industrial 10/100 Base-T to 100 Base-FX Media Converter; 1 multi mode, SC connector
NS-200FT CR    Industrial 10/100 Base-T to 100 Base-FX Media Converter; 1 multi mode, ST connector
NS-200FCS CR    Industrial 10/100 Base-T to 100 Base-FX Media Converter; 1 single mode, SC connector







GPSU06U-6    24 V/0.25 A, 6 W Power Supply
MDR-20-24    24 V/1 A, 24 W Power Supply with DIN-Rail Mounting
DIN-KA52F    24 V/1.04 A, 25 W Power Supply with DIN-Rail Mounting
