| I-8090W is a 3-axis encoder counter board.I-8090W encoder card has internal digital filter, 16 bits counter and high counting rate 1Mpps. The application of I-8090W is position/distance measurement, velocity measurement, feedback for motor control, hand wheel input and so on. A system including, I-8091W,I-8090W can be implemented as a standalone motion controller system for low cost automatically machine. |
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
|
|
|
| |
- 3-axis, 16 bits encoder counter
- 32 bits encoder counter by software
- Maximum counting rate: 1M pulse/sec
- Differential input : A+,A-,B+,B-,C+,C-
- Quadrant counting mode, CW/CCW counting mode, Pulse/Dir counting mode
- Isolated voltage : 2500Vrms
|
.jpg)
|
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
|
|
|
| |
| Position measure of motion system |
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
 |
|
|
|
|
| |
| Encoder Input |
| Input Axis |
3-axis |
| Encoder counter |
16-bit (32-bit encoder counter by software) |
| counting Mode |
1. Quadrant Counting
2. CW/CCW
3. Pulse/Dir |
| Maximum counting rate |
1 MHz |
| Intra-module isolation, Field to Logic |
2500 Vrms |
| 4KV ESD Protection |
Contact for each channel |
| LED Display |
| 1 LED as Power Indicator /8 LED as Status Indicator |
| Power |
| Power Consumption |
3.4 W Max |
| Environment |
| Operating
Temperature |
-25 ~ 75¢XC |
| Storage
Temperature |
-30 ~ 85¢XC |
| Humidity |
5 ~ 95% RH, Non-condensing |
| Dimensions |
| 30mm x 102mm x 115mm (W x L x H) Detail |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
 |
|
|
|
|
| |
| I-8090W CR |
3-axis Encoder Module (RoHS) |
| Standard
Pack |
I-8090W x 1,
User's Manual x1, CA-PC25M x 1 |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
 |
|
|
|
|
| |

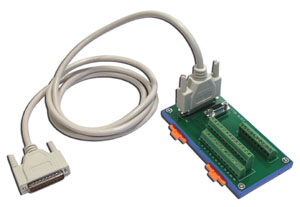

| DN-25 |
I/O Connector Block with DIN-Rail Mounting, 25/9 pin D-sub Connector |
| CA-2520 |
25-pin Male-Male D-sub flat cable, 2 M |
|
|
| |
|
|
|
|
|
| |
