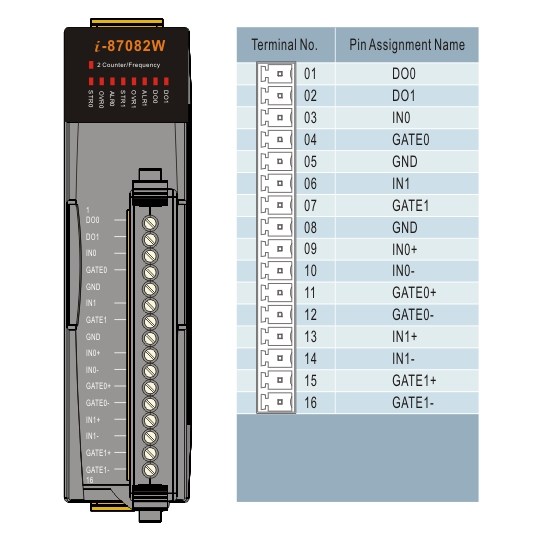

| Counter/Frequency
Input |
| Input
Channels |
2 |
| Input Frequency |
1Hz~100K
Hz |
| Input Mode |
Isolated
or Non-isolated Inputs |
| Input Level for Isolation and Non-isolation |
On
Voltage Level |
+3.5
to 30V |
| Off Voltage Level |
+1V
max |
| Intra-module Isolation,
Field to Logic |
3750Vrms |
| Non-isolation Input |
On
Voltage Level |
0
to +5V (Default >2.4V) |
| Off Voltage Level |
0
to +5V (Default <0.8V) |
| Threshold Voltage Level |
Programmable |
| Max.Counts |
32-bits
(4,294,967,295) |
| Digital Filter |
2uS to
65mS, Programmable |
| Programmable
Updated time for Frquency Inputs |
1.0/0.1sec |
| Programmable Alarm Mode |
Mode
0 : High Alarm Comparator on Counter 0 and
Counter 1 |
| Mode 1 : Two Step High Alarm Comparator on Counter 1 |
| Digital Output |
| Output Channels |
2 |
| Output Type |
Non-isolated Open-collector |
| Max. Load Current |
30
mA/ channel |
| Load Voltage |
5 ~ 30VDC |
| Watchdog |
| Dual Watchdog |
Yes, Module(1.6 sec) and Communication(Programable) |
| 1 LED as Power/ Communication
Indicator |
| 8 LEDs as Counter/ Frequency
status Indicators |
| Power |
| Power Consumption |
0.5W |
| Environment |
| Operating Temperature |
-25
to 75 ¢XC |
| Storage Temperature |
-30
to 75 ¢XC |
| Humidity |
5 to 95% RH, non-condensing |
| Dimensions |
| 30mm x 102mm x 115mm((W x L x H) Detail |
