FR-2057TA/FR-2057HTA
16-channel Isolated Source Output Distributed I/O Module
|
|
|
 |
FR-2057TA/FR-2057HTA |
| |
|
|
|
|
|
 |
|
|
|
|
|
|
| |

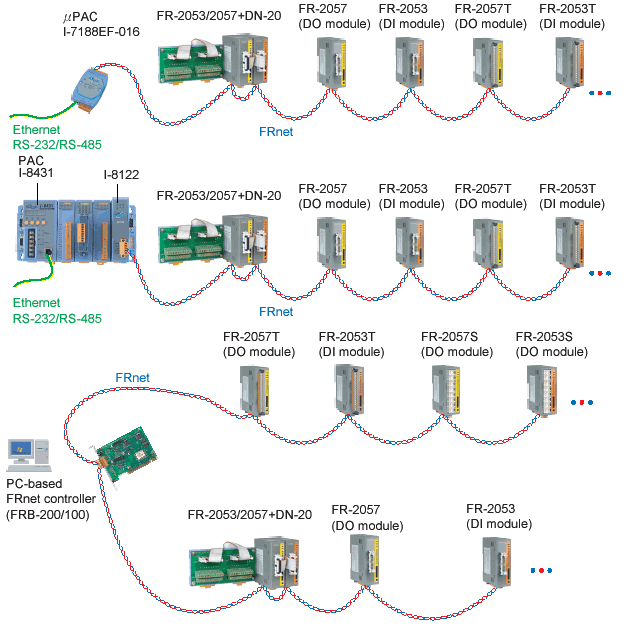

The FR-2053TA/FR-2053HTA has 16-channel isolated Sink/Source input, while the FR-2057TA/FR-2057HTA has 16-channel isolated source output. The FR-2000 I/O module has an FRnet interface. The users can daisy chain several FR-2000 modules together. Via FRnet, the FR-2000 modules can extend the remote I/O control of PC, PAC and PLC easily. Further information about the networking of FR-2053TA/2057TA; refer to literature related to I-7188EF, I-8172W, FRB-100200U. |
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
- Built-in Wire-saving FRnet DI/DO control
- High-speed transmission reliability
- Simple synchronization mechanism
- No software overhead on protocol processing
- Supporting broadcasting (1:n data transmission)
- Duplicating output easily
- Fixed I/O scan-time and I/O synchronization
- DIN-Rail mountable
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
| Digital Output |
| Output Channel |
16 |
| Output Type |
Source, Open-Collector (PNP) |
| Load Voltage |
30 VDC, Max |
| Load Current |
100mA, Max |
| Isolation Voltage |
3750 Vrms |
| Interface |
| 2-wire cabling |
2-wire cabling Belden 9841 (2P twisted-pair cable),
When different cables are used, the transmission distance may change |
| Transfer distance |
Max. 400m for FR-2057TA
Max. 100m for FR-2057HTA |

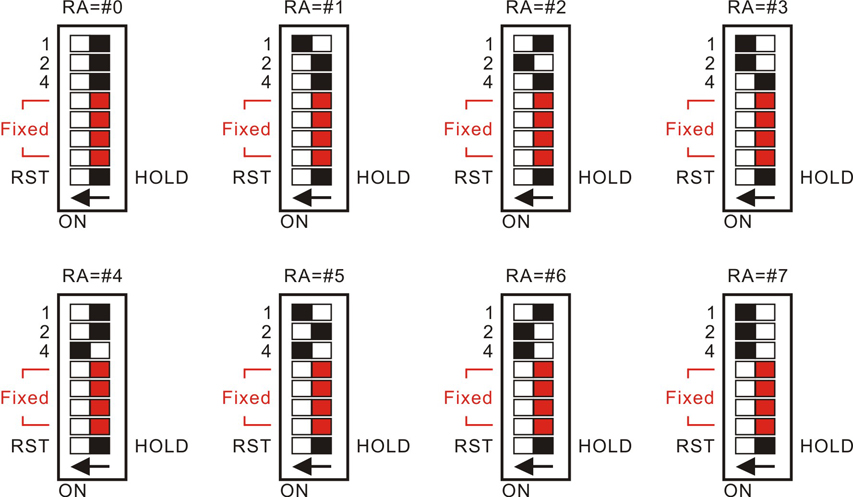

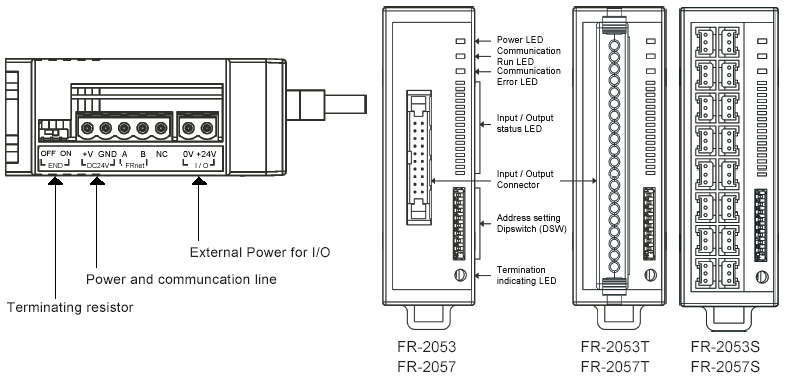

| LED Indicators |
Power, Communication Run, Communication Error, Terminal resistor, Digital input |
| Transfer speed |
250 kbps for FR-2057TA
1 Mbps for FR-2057HTA |
| Cyclic scan time |
2.88ms for FR-2057TA
0.72ms for FR-2057HTA |
| Connection |
Removable 20-pin Terminal Block |
| Power |
| Input Voltage Range |
+10 ~ +30 VDC (Non-isolation) |
| Power consumption |
2.4 W Max. |
| Protection |
Power reverse polarity protection |
| Frame Ground for EMS Protection |
Yes |
| Connection |
5-Pin Removable Terminal Block |
| Mechanical |
| Casing |
Plastic (Flammability UL 94V-0) |
| Dimensions |
33 mm x 102 mm x 110 mm |
| Installation |
DIN-Rail |
| Mechanical |
| Operating Temperature |
-25°C ~ +75°C |
| Storage Temperature |
-30°C ~ +85°C |
| Ambient Relative Humidity |
10% ~ 90% RH, non-condensing |
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
| FR-2057TA |
16-channel isolated Source output module with 20-pin screw terminal connector |
| FR-2057HTA |
16-channel isolated Source output module with 20-pin screw terminal connector |
|
|
| |
|
|
| |
|
|
|
|
