FR-2054T
8-Channel Digital Output and 8-Channel Digital Input Module |
|
|
|
FR-2054T |
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
The FR-2054T has 8-channel isolated Sink/Source input and 8-channel isolated sink output. The FR-2000 I/O module has an FRnet interface. The users can daisy chain several FR-2000 modules together. Via FRnet, the FR-200 modules can extend the remote I/O control of PC, PAC and PLC easily. Further information about the networking of FR-2054T; refer to literature related to I-7188EF, I-8172/I-8172W, FRB-100/200/200U. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- Built-in Wire-saving FRnet DI/DO control
- High-speed transmission reliability
- Simple synchronization mechanism
- No software overhead on protocol processing
- Supporting broadcasting (1:n data transmission)
- Duplicating output easily
- Fixed I/O scan-time and I/O synchronization
- DIN-Rail
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Digital Output |
Output Channel |
8 |
Output Type |
Sink, Open-Collector (NPN) |
Load Voltage |
30 VDC, Max. |
Load Current |
250mA, Max. |
Isolation Voltage |
3750 Vrms |
Digital Input |
Input Channel |
8 (Sink/Source) |
Input Type |
Isolation, One Common for All Digital Inputs |
On Voltage Level |
+19 VDC ~ 30 VDC |
Off Voltage Level |
+11 VDC max |
Input Impedance |
3.3 kOhm |
Isolation Voltage |
3750 Vrms |
Interface |
2-wire cabling |
2-wire cabling Belden 9841 (2P twisted-pair cable),
When different cables are used, the transmission distance may change |
Transfer distance |
Max. 400m for speed 250Kbps
Max. 100m for speed 1Mbps(Default) |
LED Indicators |
Power, Communication Run, Communication Error, Terminal
resistor, Digital input/output |
Transfer speed |

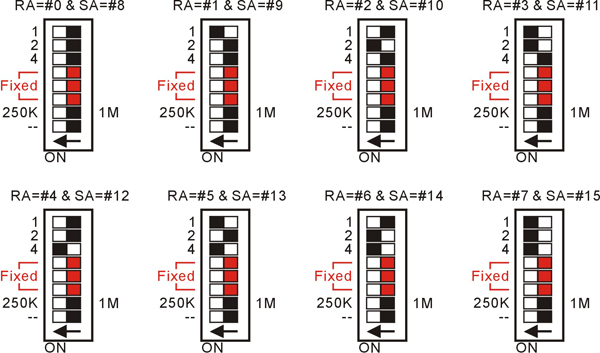

250Kbps and 1Mbps(Default) DIP Switch Settings |
Cyclic scan time |
2.88ms for speed 250Kbps
0.72ms for speed 1Mbps(Default) |
Connection |
Removable 20-pin Terminal Block |
Power |
Input Voltage Range |
+10 ~ +30 VDC (Non-isolation) |
Power consumption |
2W Max |
Protection |
Power reverse polarity protection |
Frame Ground for EMS Protection |
Yes |
Connection |
5-Pin Removable Terminal Block |
Mechanical |
Casing |
Plastic (Flammability UL 94V-0) |

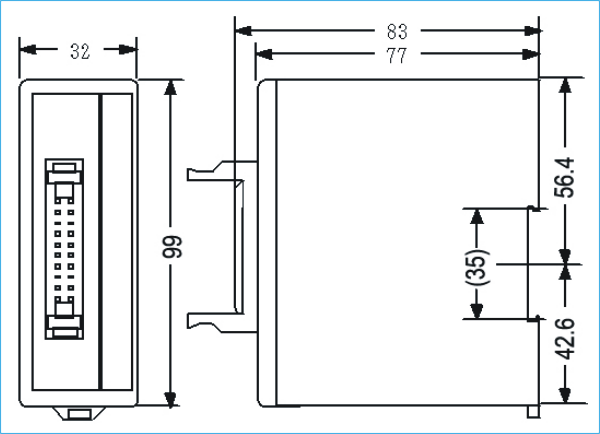

Dimensions (W x L x H) |
33 mm x 102 mm x 110 mm |
Installation |
DIN-Rail |
Mechanical |
Operating Temperature |
-25°C ~ +75°C |
Storage Temperature |
-30°C ~ +85°C |
Ambient Relative Humidity |
10% ~ 90% RH, non-condensing |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FR-2054T |
8-channel isolated digital output and 8-channel isolated digital input module |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GPSU06U-6 |
24V/0.25A Power Supply, (No-mounting) |
DIN-KA52F |
24V/1A Power Supply, (With DIN-Rail mounting) |
|
|
|
|
|
|
|
|
|
|
|
|
|
