FR-2024iT
4-channel Isolated Analog Output Module With Isolated Communication Line |
 |
 |
 |
 |
| |
|
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
The FR-2024iT is a 12-bit, 4-ch analog outputs module that provides programmable output range (0 ~ + 10 VDC, -10 VDC ~ +10 VDC, 0 ~ +5 VDC, -5 VDC ~ +5 VDC, 0 ~ +20mA, +4mA ~ +20mA) . There are options for power on value and Safe Value for your consideration.
The FR-2000 I/O module has an FRnet interface. The users can daisy chain several FR-2000 modules together. Via FRnet, the FR-2000 modules can extend the remote I/O control of PC, PAC and PLC easily. Further information about the networking of FR-2017iT/2024iT; refer to literatures related to I-7188EF, I-8172W, and FRB-100/200/200U. |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
- Built-in wire-saving FRnet control
- High-speed transmission reliability
- Simple synchronization mechanism
- No software overhead on protocol processing
- Supporting broadcasting (1:n data transmission)
- Duplicating output easily
- Fixed I/O scan-time and I/O synchronization
- DIN-Rail mountable
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
| Analog Output |
| Output Channels |
4 |
| Output Type |
0~20mA, 4~20mA, 0~5V, +/-5V, 0~10V, +/-10V |
| Resolution |
12-bit |
| Accuracy |
+/- 0.1% of FSR |
| Zero Drift |
Voltage: +/-30£gV/ ¢XC |
| Current: +/-0.2£gA/ ¢XC |
| Span Drift |
+/- 20ppm/¢XC |
| DA Output Response Time |
10ms per channel |
| Programmable Output Slope |
0.125 to 2048 mA/second |
| 0.0625 to 1024 V/second |
| Voltage Output Capability |
10 V@20 mA |
| Current Load Resistance |
External +24V : 1050 Ohms |
| Power-Up and Safe Value |
Yes |
| Interface |
| Isolation Voltage |
2500 VDC |
| 2-wire Cabling |
Belden 9841 (2P twisted-pair cable),
When different cables are used, the transmission distance may be changed |
| Transfer Distance |
Max. 400m for speed 250K
Max. 100m for speed 1M (Default) |
| LED Indicators |
Power, Communication Run, Communication Error, Terminal resistor, Digital output |
| Transfer Speed |

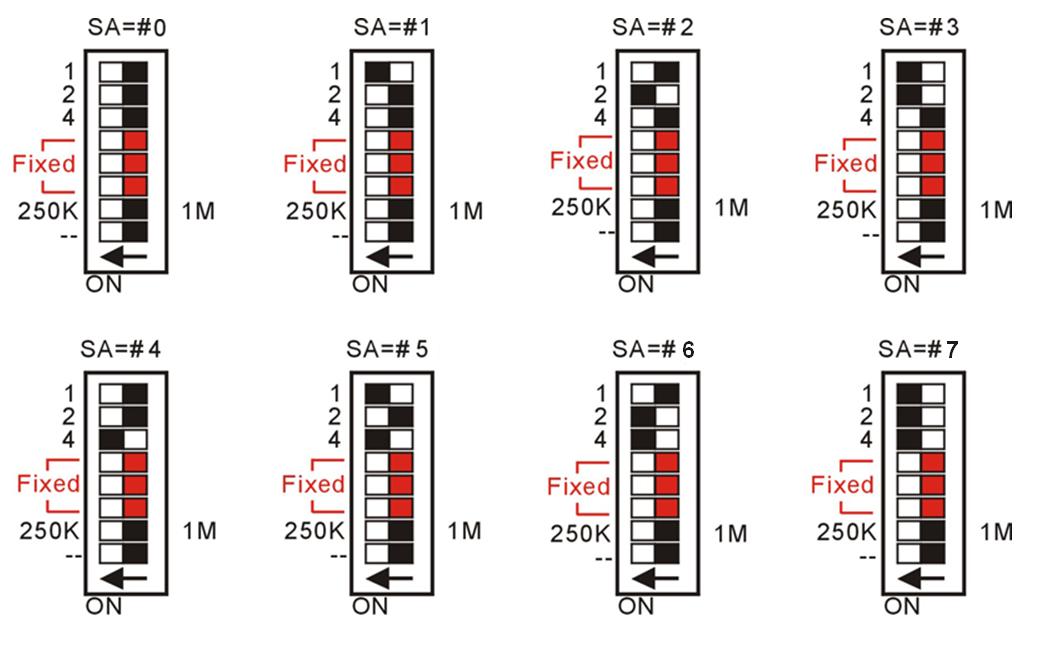

250Kbps and 1Mbps (Default)
DIP Switch Selectable |
| Cyclic Scan Time |
2.88ms for speed 250K
0.72ms for speed 1M (Default) |
| Power |
| Input Voltage Range |
+10 ~ +30 VDC (Non-isolation) |
| Power Consumption |
2.88 W Max |
| Connector |
5-Pin Removable Terminal Block |
| EMS Protection |
| ESD (IEC 61000-4-2) |
4 kV contact for power line, communication line and each channel
8 kV air for random point |
| EFT (IEC 61000-4-4) |
4 kV for power liner |
| Surge (IEC 61000-4-5) |
3 kV for power liner |
| Case |
| Mechanical |
Plastic |
| Flammability |
UL 94V-0 materials |
| Dimensions (W x H x D) |
32.5 x 110 x 102 mm |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ¢XC ~ +75 ¢XC |
| Storage Temperature |
-30 ¢XC ~ +85 ¢XC |
| Humidity |
10% ~ 90% non-condensing |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| FR-2024iT |
4-channel Isolated Analog Output Module With Isolated Communication Line |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| CA-0904 |
4-pin connector & 9-pin Female D-sub cable |
| GPSU06U-6 |
24 V/0.25 A Power Supply, (No-mounting) |
| DIN-KA52F |
24 V/1 A Power Supply, (With DIN-Rail mounting) |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
|
|
