£gPAC-7186EXD-CAN
£gPAC-7186 CAN bus series Programmable Automation Controller




~ NEW ~


¡§Embedded Internet¡¨ and ¡§Embedded Ethernet¡¨ are hot topics today. Nowadays the Ethernet protocol becomes the de-facto standard for local area network. Via Internet, connectivity is occurring everywhere, from home appliances to vending machines to testing equipment to UPS¡Ketc. Using Ethernet for network in industrial area is appealing because the required cabling is already installed. The £gPAC-7186EXD-CAN PACs (programmable Automation controller) are powered by 80188-80 processor with 512K bytes of static RAM, and 512K bytes of Flash memory. All of them provide several

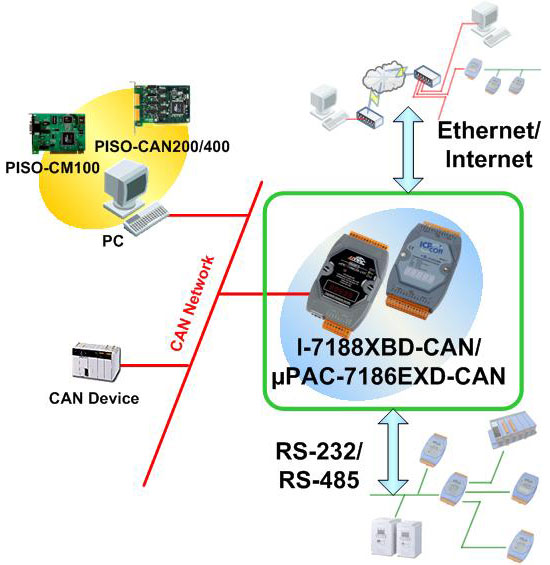

communication interfaces to adapt to various applications, such as CAN port, RS-232 port, RS-485 port and Ethernet interface. Uses can program their application program flexibly with C/C++ language because of the built-in MiniOS7 operation system. Besides, the £gPAC-7186EXD-CAN series PACs have different I/O types for users to match their requirement. For £gPAC-7186EXD-CAN , there is no I/O channel. It is useful for transfer the command from differential communication interface. Therefore, the £gPAC-7186EXD-CAN series PACs are economic and convenient solution for diversification CAN application.



  Applications


• Process monitor and control• IO monitor
• High speed data acquisition system •Communication switching
• Factory automation• Laboratory automation„X

  TCP/IP Library


The software library provides TCP/IP protocols & web server. Support the following protocols.

  • TCP, Transmission Control Protocol:
          Transport layer with connections, flow control and error correction
  • UDP, User Datagram Protocol:
          Simple connectionless transport layer
  • IP, Internet Protocol:
          The network layer
  • ICMP, Internet Control Message Protocol:
          Part of IP for practical purposes
  • ARP, Address Resolution Protocol:
          Retrieves a host¡¦s network controller¡¦s hardware address, given the host¡¦s Internet address
  • Reverse Address Resolution Protocol:
          Retrieves a host¡¦s Internet address, given the host¡¦s network controller¡¦s
  •

      Features



  • 1000 VDC voltage protection on CAN side.
  • Compatible with CAN specification 2.0 parts A and B.
  • Programmable transfer rate up to 1 Mbps.
  • Jumper select 120£[ terminator resistor for CAN channel
  • Supports a variety of TCP/IP features, including TCP, UDP, IP, ICMP, ARP
  • 10/100BASE-T NE2000 compatible Ethernet Controller
  • Upgradable OS image
  • Remote Configuration
  • 64-bit hardware unique serial number inside
  • COM driver support interrupt & 1K QUEUE Input & Output buffer
  • COM port: COM1, COM2
  • Built-in RTC, NVRAM, EEPROM
  • Built-in self-tuner ASIC controller on RS-485 port
  • 7-segment LED display.
  • Built-in ICP DAS¡¦s MiniOS7
  • Program download port: COM1 or Ethernet Port (Available soon)
  •


      Hardware Specifications


    CPU
    CPU
    80186, 80MHz or compatible
    SRAM
    512K Bytes
    Flash
    512K Bytes
    EEPROM
    16K Bytes
    NVRAM
    31 Bytes (battery backup, data valid up to 10 year)
    RTC (Real Time Clock)
    Yes
    64-bit Hardware Serial Number
    Yes
    Built-in Watchdog Timer
    Yes
    Communication Interface
    COM1
    RS-232 (TXD, RXD, RTS, CTS, GND)
    COM2
    RS-485 (D2+, D2-)
    CAN
    One CAN port with two CAN bus connector interfaces (CAN_H, CAN_L)
    Ethernet Port
    10/100Base-TX Ethernet Controller
    (Auto-negotiating, Auto_MDIX, LED indicator)
    COM Port Formats
    Data bit
    7, 8
    Parity
    Even, Odd, None
    Stop bit
    1
    Baud-rate
    115.2Kbps max.
    CAN Port Formats
    CAN Controller
    Phillips SJA1000T CAN Controller
    CAN Transceiver
    Phillips 82C250 CAN Transceiver
    Isolated
    2500Vrms on CAN side
    Baud-rate
    1Mbps max.
    Dimensions
    uPAC-7186EXD-CAN
    123 x 72 x 33 mm
    Operating Environment
    Operating Temperature
    -25¢XC to +75¢XC
    Storage Temperature
    -40¢XC to +80¢XC
    Power
    Protection
    Power reverse polarity protection
    Frame Ground for ESD Protection
    Yes
    Required Supply Voltage
    +10 to +30VDC (non-regulated)
    Power consumption
    3W


      Ordering Information

    £gPAC-7186EXD-CAN
    Programmable Automation controller with two series communication port (RS-232/RS-485), one CAN port, one Ethernet port, 7-segment Display, 4 programable LEDs, 512K flash ,512K SRAM, developing tool kit, Minios7.
    £gPAC-7186EXD-CAN CR
    Programmable Automation controller with two series communication port (RS-232/RS-485), one CAN port, one Ethernet port, 7-segment Display, 4 programable LEDs, 512K flash ,512K SRAM, developing tool kit, Minios7. (RoHS)
