PISO-DNS100-D / PISO-DNS100-T
1 Port Intelligent DeviceNet Multi-Slave Board







PISO-DNS100-D
~ NEW ~
PISO-DNS100-T
~ NEW ~



The PISO-DNS100 has completed DeviceNet slave function according to DeviceNet Group 2 only server. With the built-in 80186 80M Hz CPU, this card can be applied in high transmission applications. The amazing function is that 10 slave nodes are implemented inside the PISO-DNS100. It supports up to 512 bytes of input & 512 bytes output data. DeviceNet Baud rate of 125-500 kbits/s & MACID can be set via utility setting. The PCI card also has an optically isolated DeviceNet interface.



  Applications



• Industrial Machinery • Building Automation • Medical • Maritime • Restaurant Appliances
• Laboratory Equipment & Research

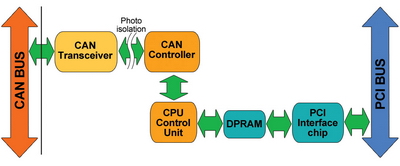

  Hardware Features



Item
PISO-DNS100
CPU
80186, 80MHz
On Board Memory
512K bytes SRAM, 512K bytes FLASH ROM
EEPROM
2K bytes
NVRAM
32K bytes
Watch Dog Timer
Built-in Dual-Watchdog protection
CAN bus interface
ISO/IS 11898-2, Sub D9 connector or 5-pin screw terminal connector
CAN Controller
Phillips SJA1000T CAN Controller
CAN Transceiver
Phillips 82C250/251 CAN Transceiver
CAN Frequency
16 MHz CAN controller frequency
CAN Protocol
CAN 2.0A/2.0B
Isolated
2500Vrms on CAN side
Terminal Resister
120Ω terminal resister selected by jumper
DPRAM
PCI interface with DPRAM memory mapping
LED
2 Indicator LED (Status,ERR)
Power Supply
33MHz 32bit 5V PCI bus(V2.1) plug and play mechanism
Operating Temp.
0℃ to 60℃
Storage Temp.
-20℃ to 8℃
Humidity
Humidity: 0~90% non-condensing
Dimensions
Short PC plug-in card, Dimensions: 130mm X 110mm





  Firmware Feature



Firmware Feature
Specifications
DeviceNet Version
DeviceNet Specification Volume I & II, Release 2.0
Number of Slave Nodes
10(Max) nodes inside the board
Baud Rate
125K, 250K, 500K
Support Message Groups
Group 2 only Server
UCMM
Not Support
I/O Operating Modes
Poll, Bit-Strobe, Change of State/ Cyclic
No. of Fragment I/O
up to 512 bytes of input & 512 bytes output data
MAC ID Setting
Programmable
Baud Rate Setting
Programmable

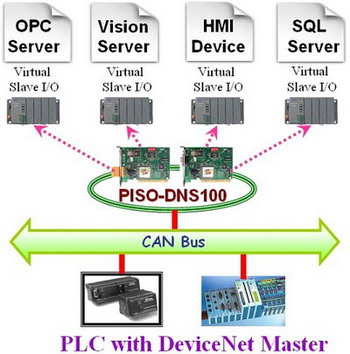

  Virtual Slave Concept

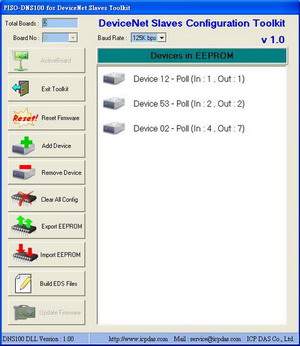

  Multi-Slave Software Toolkit for Window



The software utility includes various useful functions. These functions help users to manage and configure the DeviceNet virtual slave devices. It helps the users to develop the DeviceNet virtual slave station projects easily and quickly. The users can also develop another toolkit on your own purpose.

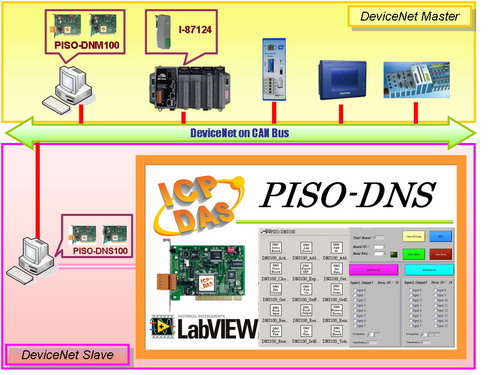

  LabVIEW Tool




In order to apply the PISO-DNS100 to DeviceNet network with NI LabVIEW, we provides a LabVIEW 8.0 toolkit for the purpose. It is a useful tool to develop the DeviceNet Slave application in NI LabVIEW environment by using PISO-DNS100. It is easy to use and can help user to rapidly reduce their program development cycle.

Download




  Establish Connection Flowchart








  Ordering Information



PISO-DNS100-D
1 Port Intelligent DeviceNet Multi-Slave Board with 9-pin D-sub connector
PISO-DNS100-T
1 Port Intelligent DeviceNet Multi-Slave Board with 5-pin Screw Terminal Connector
