    CAN Bus









PISO-CM100-D / PISO-CM100-T
One Standalone Intelligent CAN Communication Board.







PISO-CM100-D
~NEW~
PISO-CM100-T
~NEW~

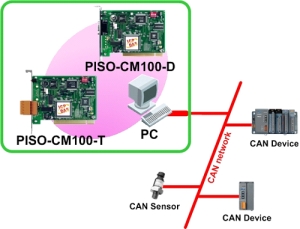

The CAN (Controller Area Network) is a serial communication protocol, and efficiently supports distributed real-time control with a very high level of security. It is an especially suited for networking "intelligent" devices as well as sensors and actuators within a system or sub-system. In CAN networks, there is no addressing of subscribers or stations in the conventional sense, but instead prioritized messages are transmitted.

ICP DAS provides an open architecture platform for CAN bus-PISO CM100. The PISO-CM100 represents a very powerful and economic solution of an active CAN board with one CAN channels, covering a wide range of CAN applications. The 16-bit on-board microcontroller allows, among many other features, the filtering, preprocessing, and storage (with timestamp) of CAN messages as well as the real-time transmission of CAN messages. PISO-CM100 also uses the new Phillips SJA1000T and Transceiver 82C250/251, which provide bus arbitration and error detection with auto correction and re-transmission function. Under the effect of the powerful microcontroller, this card can be made for one CAN controller without losing data, even in systems with a high bus load. Besides, equipped with integrated intelligence functions, the PIO-CM100 makes it is possible to preprocess CAN data streams, thus relieving the PC of a considerable burden. As a result, real-time requirements on the PC applications are drastically reduced. Due to the state-of-the-art, it can be installed in a slot of 5V 32-bits PCI bus and supported truly “Plug & play” technology.

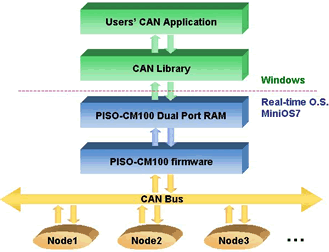

In addition, users can develop their own CAN application by using the PISO-CM100 library. When the PISO-CM100 is active, the data exchange between users’ application and can bus firmware is performed via the memory mapping method of the PISO-CM100.







  Applications



• DeviceNet, CANopen, CAN J1939, SDS (System Wide Network) protocol application.
• CAN bus communication application. . • Industry automation • Industrial Machinery • Building Automation
• Food & Beverage • Semiconductor Fabrication • Control system




  Features



  • 33MHz 32bit 5V PCI bus (V2.1) plug and play technology
  • Follow ISO11898-2 specification
  • Philip SJA1000T CAN controller
  • Philip 82C250 CAN transceiver
  • CAN controller frequency :16 MHz
  • 2500Vrms photo-isolation protection on CAN side
  • Jumper select 120Ω terminator resistor for CAN bus
  • One CAN communication port
  • Compatible with CAN specification 2.0 parts A and B
  • Provide default baud 10Kbps, 20Kbps, 50Kbps, 125Kbps, 250Kbps, 500Kbps, 800Kbps, and 1Mbps
  • Allow user-defined baud
  • 2048 records reception buffer and 256 records transmission buffer
  • Cyclic transmission precision: ±0.5ms precision when cyclic time is below 10ms , ±1% error when cyclic time exceeds 10ms
  • Provide 5 sets of cyclic transmission.
  • Timestamp of CAN message with at least ±1ms precision
  • 186 compactable CPU inside
  • 8K bytes DPRAM inside
  • RTC(Real Time Clock) inside
  • 2 indication LED (one for green and another for red)
  • Support user-defined firmware
  • Support firmware update
  • VC++, VB, BCB demos and libraries are given
  • C/C++ function libraries of firmware side is given
  • Drivers for Windows 98/Me/NT/2000/XP




  Specifications



  • CAN controller: Phillips SJA1000T
  • CAN controller frequency :16 MHz
  • CAN transceiver: Phillips 82C250/251
  • Follow ISO11898-2 specification
  • One CAN communication port
  • Compatible with CAN specification 2.0 parts A and B
  • Jumper select 120Ω terminator resistor for CAN bus
  • Provide default baud 10Kbps, 20Kbps, 50Kbps, 125Kbps, 250Kbps, 500Kbps, 800Kbps, and 1Mbps
  • Allow user-defined baud
  • Connector: 5-pin screw terminal connector or 9-pin D-sub male connector
  • Isolation voltage: 2500Vrms on CAN side
  • 33MHz 32bit 5V PCI bus (V2.1) plug and play technology
  • 186 compactable CPU
  • 8K bytes DPRAM (1K bytes for system)
  • 512 K bytes Flash memory (128K bytes for system, others for firmware)
  • 512K bytes SRAM
  • RTC (real time clock) inside
  • 2K EEPROM (256 bytes for system)
  • 31 bytes NVRAM
  • Power requirements: 5V@400mA
  • Environment:
      Operating temp: 0~60℃
      Storage temp: -20~80℃
      Humidity: 0~90% non-condensing
  • Dimensions: 127mm X 121mm

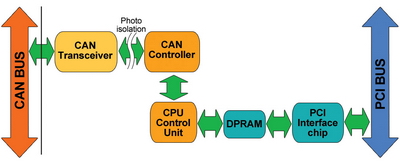

  PISO-CM100 Architecture

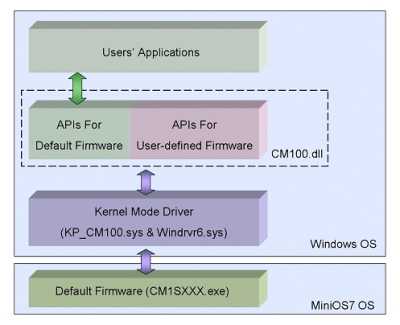

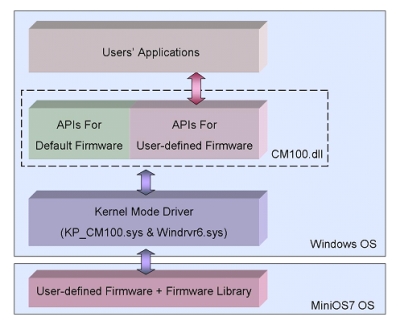

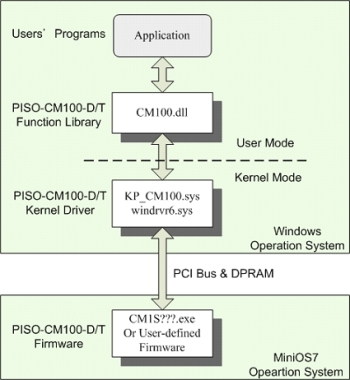

  Software



Windows Drives:

  • Development Toolkit for Windows 98/Me/NT/2000/XP
  • Demos for VC++, VB and BCB

Windows Tools:

  • CANUility (Include send/receive CAN messages, message ID filter, data format transformation, messages recoder and firmware update functions)
  • Debug tool

MiniOS7 Tools:

  • C/C++ Library for RTC, EEPROM, LED, DPRAM, CAN controller and timers control functions
  • Demos for TC, TC++, BC and BC++


  Ordering Information

PISO-CM100-D
Intelligent CAN interface with one Isolated Protection CAN Communication Port and 9-Pin D-sub connector for PCI bus systems.
PISO-CM100-T
Intelligent CAN interface with one Isolated Protection CAN Communication Port and 5-Pin Screw Terminal Connector for PCI bus systems.
