PCM-CAN200

~ NEW ~
PCI104/PC104+ CAN Communication Card





PCM-CAN200 can represent a CAN solution on a high quality PCI104/PC104+ hardware in industrial environment compliant with CAN 2.0A and CAN 2.0B specification. It has 2 independent CAN bus communication ports with 9-pin D-sub connector, and has the ability to cover a wide range of CAN applications.



Besides, PCM-CAN200 uses the CAN controller Phillips SJA1000T and transceiver 82C250/251, which provide bus arbitration, error detection with auto correction and re-transmission function. It can be installed in a 5V PCI slot and supported truly “Plug & play”




  Applications



• Control System• Building Automation• Factory Automation• Distributed data acquisition




Features



  • PCI104/PC104+ compliant
  • 9-pin D-sub connector
  • Compatible with CAN 2.0 parts A and B
  • Fully compatible with ISO 11898-2 standard
  • Support CAN bard from 10K to 1M bps
  • 2500 Vrms photo couple isolation on the CAN bus
  • Build-in jumper to select 120 ohm terminal resister
  • 1KV galvanic isolation
  • 2 independent CAN channels
  • Direct memory mapping to the CAN controller
  • Provide VB, VC++, Delphi, BC++ demos
  • Driver support Windows 98/ME/NT/2K/XP

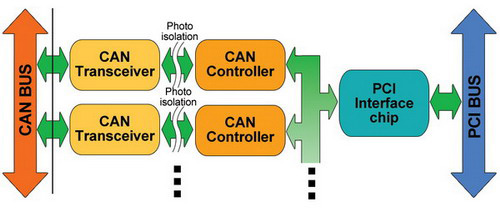

Hardware architecture

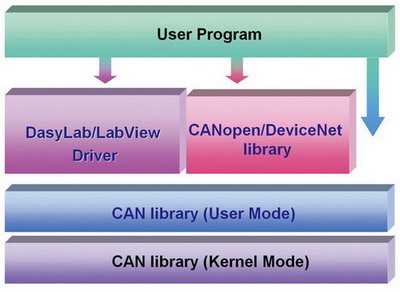

   Software architecture







   Utility

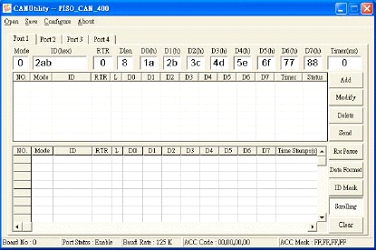

  • Can be a CAN system monitor tool with CAN cards
  • It is a good tool to test CAN system
  • Send/Receive/Record CAN messages.
  • Provide cyclic transmission function
  • Record the CAN messages with filtered ID and time stamp





   Specifications



Item
PCM-CAN200-D
CAN connector
9-pin D-sub connector
PCI bus
PCI-104
CAN port
2 independent CAN ports
CAN Controller
NXP SJA1000 CAN Controller with 16MHz
CAN Transceiver
NXP 82C250 CAN Transceiver
CAN Interface
ISO/IS 11898-2, 9-pin D-sub connector
Signal Support
CAN_H: CAN high bus line, CAN_L: CAN low bus line
CAN specific
Compatible with CAN specification 2.0 parts A and B.
Transfer Rate
Programmable transfer rate up to 1 Mbps
Terminal Resister
120Ω terminal resister selected by jumper
Driver Support
Windows 98/ME/NT/2K/XP/WinCE
Isolated
2500Vrms on CAN side
Power Supply
33MHz, 32bit 5V and 3.3V PCI bus (V2.1) plug and play.
Operation Temp.
0℃ to 60℃
Storage Temp.
-20℃ to 80℃
Humidity
0~90% non-condensing
Dimensions
91mm x 96mm




   Ordering Information



PCM-CAN200-D CR
2-Port Isolated Protection CAN Communication Board with 9-pin D-sub connector (RoHS)
