I-8KCPS1 / I-8KCPS2
CANopen Embedded Device with 1 or 2 I/O Expansion




I-8KCPS1
~NEW~
I-8KCPS2
~NEW~



CANopen, a kind of communication protocols, is based on the intelligent field bus(CAN bus). It was developed as a standardized embedded network with highly flexible configuration capabilities. It provides standardized communication objects for real-time data(Process Data Objects, PDO), configuration data(Service Data Objects, SDO), network management data(NMT message, and Error Control), and special functions(Time Stamp, Sync message, and Emergency message). Nowadays, CANopen is used in many various application fields, such as medical equipment, off-road vehicles, maritime electronics, public transportation, building automation and etc.

I-8KCPS1/2 main control unit is specially designed for the slave device of CANopen protocol. It follows the CANopen Spec DS-301 V4.01 and DSP-401 V2.1, and supplies and supplies many features for users, such as dynamic PDO, EMCY object, error output value, SYNC cyclic and acyclic, …and etc. In order to
expand I/O channel more flexible, an I-8KCPS1/2 supports 1/2 slot(s) for I/O expansion and suits with a lot of ICPDAS DI/AI/DO/AO slot modules. Users can choice DI/DO/AI/AO modules of I-87K series or I-8000 series to fit the customized practice applications. In addition, we also provide utility tool to allow users to create the EDS file dynamically. The EDS file is based on CANopen SP306 and can be compatible with different CANopen master interfaces. The application architecture is as image on the left.



  I-8KCPSx Utility



I-8KCPS1/2 can automatically scan the I-8K/I-87K modules plugged in the main unit and assigned these modules to the specific application. Before users apply the 8KCPS1/2 in CANopen applications, they must understand the relationship between these CANopen application and device object dictionary in I-8KCPS1/2. Therefore, we provide the I-8KCPS1/2 Utility Tool (CAN slave utility, CAN_SL.exe) to allow users to view the important information, such as slot module information, Rx and Tx PDO mapping, and device object dictionary. After finishing the utility configuration, it will create the EDS file for users’ I-8KCPS1/2 device. Furthermore, if the I-8KCPS1/2 EDS file is not needed for users’ application, users only need to set the Node ID and baud by hardware rotary switch. Then, after connecting the wire and turning on the I-8KCPS1/2, it can work normally on the CAN bus network through CANopen protocol.

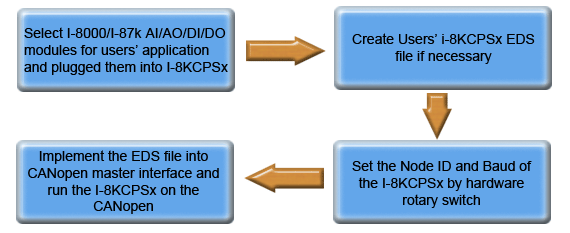

  I-8KCPSx Design Flowchart




The following simple steps show how to use I-8KCPSx in CANopen protocol.



  Features

NMT
Slave
Error Control
Heart beat to Node Guarding selectable
No. of PDOs
16Rx , 16Tx
PDO Modes
Event Triggered, Remotely requested, Cyclic and acyclic SYNC
PDO Mapping
vaiable
No. of SDOs
1 server, 0 client
Emergency Message
ˇ
CANopen Version
DS-301 v4.01
Device Profile
DSP-401 v2.0
Baud Rate Setting by Rotary Switch
10K, 20K, 50K, 125K, 250K, 500K, 800K, and 1Mbps
Produce EDS file Dynamically
ˇ
CAN, ERR, and Tx/Rx LED
ˇ
  Application Notes

•Industrial Machinery •Laboratory Equipment & Research •Restaurant Appliances
•Maritime •Medical •Specialty Vehicles...etc.

  Hardware Specifications

Model
I-8KCPS1
I-8KCPS2
 CPU
80186, 80MHz
 Flash
512K bytes
 SRAM
    512K bytes
 EERROM
2K bytes (Can upto 128K bytes or change to 2K/8K FRAM)
 NVRAM
32 bytes
 Real Time Clock
16 bit
 Watch Dog Timer
CPU Built-in
 LEDs
PWR led , RUN led , ERR led
 CAN Port
5-pin screw terminal connector
 CAN Controller
Phillip SJA1000T
 CAN Transceiver
Phillip 82C250/251
 CAN 2.0A/2.0B Supported
ˇ
 Isolated
2500Vrms on CAN side
 Terminal Resister
120 ohm terminal resister selected by jumper
 Transfer Rate
125K, 250K, 500K
 I/O Expasion Slot
1 slots
2 slots
 Power Supply
20W unregulated +10VDC to +30Vdc
 Operating Temp
-25C to 75C
 Storage Temp
-30C to 85C
 Humidity
5 ~ 95%
Dimensions
63x110x75.5 mm
115x110x75.5 mm
  Modules Support

IO Type
Module Name
IO Type
Module Name
DI
I-8040/ I-8051/ I-8052/ I-8053/ I-8058/

I-87040/ I-87051/ I-87052/ I-87053/ I-87058/
AI

I-87013/ I-87016/ I-87017/ I-87018/

DO

I-8037/ I-8041/ I-8056/ I-8057/ I-8060/ I-8064/

I-8065/ I-8066/ I-8068/ I-8069/

I-87041/ I-87056/ I-87057/ I-87060/ I-87064/ I-87065/ I-87066/ I-87068/ I-87069

AO
I-8024

I-87022/ I-87024/ I-87026

DIO

I-8042/ I-8054/ I-8055/ I-8063/

I-87042/ I-87054/ I-87055 I-87063/

  Ordering Information


I-8KCPS1 CANopen Embedded Device with 1 I/O Expansion
I-8KCPS2 CANopen Embedded Device with 2 I/O Expansions
