I-7241D
DeviceNet / DCON Gateway





The I-7241D is one of CAN bus products in ICP DAS. The device offers the communication gateway between DeviceNet and DCON protocol. DCON protocol is the communication protocol of I-7K and I-87K

series IO modules of ICP DAS. And the I-7241D can be a DeviceNet slave device in CAN bus for DeviceNet network. It is a Group 2 Only Slave device, and supports “Predefined Master/slave Connection Set”. In addition, we also provide the utility software for users to configure the device parameters and build EDS file for the DeviceNet slave device. Users can easily apply I-7k and I-87K IO modules in DeviceNet applications with the I-7241D.

  Applications

• Control System• Building Automation• Factory Automation• Distributed data acquisition


  Features



  • NMT: Slave
  • Support Predefined Master/slave Connection Set
  • Dynamic Assembly Objects Mapping
  • Support Offline Connection Set, Device Heartbeat message and Device Shutdown message
  • Provide Assembly object
  • Dynamic Product EDS File
  • I/O operating modes: Polling, Bit-Strobe, Change of State/Cyclic
  • Support max 15 I-7K/I-87K IO modules
  • Provide friendly Utility to configure
  • Baud Rate: 125Kb, 250Kb, 500Kb
  • On-line change baud rate and MAC ID of CAN
  • 7-segmemt LED to show operation mode, MAC ID, baud rate and error code



  I-7241D Utility



The I-7241D Utility is help users to configure the modules, and has following features:

  • Support auto-scan I-7K/I-87K modules
  • Auto-scan I-7k/I-87K modules connected with I-7241D COM Port
  • Show I-7k/I-87K modules configuration
  • Show Application and Assembly Objects configuration
  • Support IO connection path setting
  • Support EDS file creating


  Usage

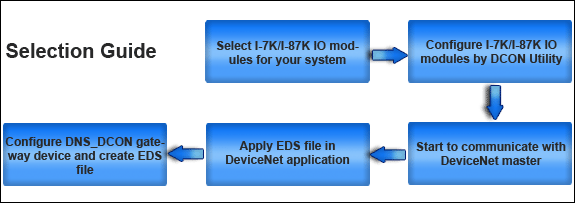

The simple steps about how to use DNS_DCON gateway are described as follows:


  Modules Support





   Hardware Specifications



Model
I-7241D
 CPU
80188, 40MHz
 Flash
512K bytes
 SRAM
    512K bytes
 EERROM
2K bytes (Can upto 128K bytes or change to 2K/8K FRAM)
 NVRAM
31 bytes
 Real Time Clock
16 bit
 Watch Dog Timer
CPU Built-in
 COM1
RS232: TXD,RXD,RTS,CTS,GND
 COM2
RS485: D2+, D2-
 Communication Speed
115200 max
 CAN Controller
Phillip SJA1000T CAN Controller
 CAN Transceiver
Phillip 82C250/251CAN Transceiver
 LED Directors
NS, MS, IO
Display
7-segment LED: 5digit
 Isolated
2500Vrms on CAN side
 Power Supply
3.9W unregulated +10VDC to +30Vdc
 Operating Temp
-25C to 75C
 Storage Temp
-30C to 85C
 Humidity
5 ~ 95%
Dimensions
122 x 72 x 33 mm




   Ordering Information




I-7241D
DeviceNet Slave / DCON Master Gateway
I-7241D CR
DeviceNet Slave / DCON Master Gateway (RoHS)
