I-7232D
CANopen / Modbus RTU Gateway





The I-7232D is one of ICP DAS CAN bus products. The device allows a CANopen master to access the Modbus slave devices on some Modbus RTU network. Modbus RTU protocol is a kind of application protocol based on RS485 network. Therefore, this gateway provides an easy way to connect Modbus RTU


devices with CANopen network. These Modbus RTU devices may be a PLC, a Modbus RTU sensor, ICPDAS M-7000 series modules and so fourth. In addition, we also provide the utility software for users to configure the I-7232D,s parameters and build the EDS file for CANopen master interface. Users can easily apply Modbus RTU devices in CANopen applications with the I-7232D.



  Applications



• Control System • Building Automation • Factory Automation • Distributed data acquisition





  Features



  • NMT: Slave
  • Error Control: Node Guarding protocol
  • Node ID: Setting by CAN_MRU Utility Software
  • PDO Modes: Event-triggered, remotely requested, cyclic and acyclic SYNC
  • PDO Mapping: variable
  • No of SDOs: 1 server, 0 client
  • Emergency Message: Yes
  • CANopen Version: DS-301 v4.01
  • Device Profile: DSP-401 v2.0
  • CAN Baud Rate setting by utility: 10K, 20K, 50K, 125K, 250K, 500K, 800K, 1M bpse
  • Modbus Baud Rate setting by utility: 1200, 2400, 4800, 9600, 19200, 38400, 57600, or 115200 bps
  • RUN, ERR, and OVERRUN LED indicators
  • Support max 10 Modbus RTU I/O series modules
  • Provide friendly Utility for parameters configuration.
  • 7-segmemt LED to show Node ID, CAN baud rate and RS-485 baud rate

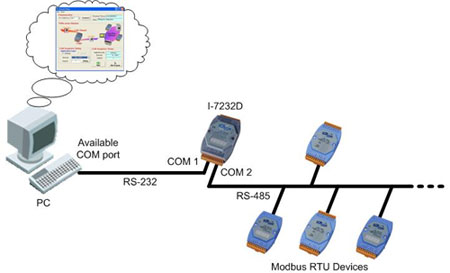

  I-7232D Utility




The I-7232D Utility helps users to configure the devices, and has following features:

  • Support CANopen node ID, baud rate setting
  • Provide Modbus RTU parameters setting
  • Display Modbus RTU devices configuration
  • Show CANopen application objects configuration
  • Produce EDS file Dynamically

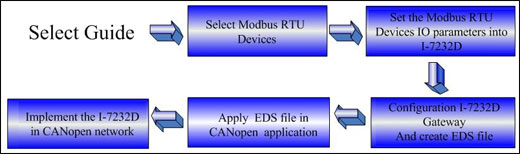

  Usage


The simple steps about how to use CPS_DCON gateway are described as follows:

  1. Select Modbus RTU devices for users' CANopen application
  2. Set the Modbus RTU devices 10 parameters into I-7232D by CAN_MRU Utility
  3. Configure the I-7232D and create EDS file
  4. Apply EDS file to CANopen application
  5. Implement the I-7232D in CANopen network


  Modules Support



Only the following Modbus RTU commands are supported by the gateway.

Code
Name
Description
01
Read Coil Status
Read the ON/OFF status of discrete outputs in the slave
02
Read Input Status
Read the ON/OFF status of discrete inputs in the slave
04
Read Input Registers
Read the binary contents of input registers in the slave
06
Preset Single Register
Preset an integer value into a single register
15
Force Multi Coils
Forces each coil in the sequence of coils to either ON or OFF





   Hardware Specifications



Model
I-7232D
 CPU
80188, 40MHz
 Flash
512K bytes
 SRAM
    512K bytes
 EERROM
2K bytes (Can upto 128K bytes or change to 2K/8K FRAM)
 NVRAM
32 bytes
 Real Time Clock
16 bit
 Watch Dog Timer
CPU Built-in
 COM1
RS232: TXD,RXD,RTS,CTS,GND
 COM2
RS485: D2+, D2-
 Communication Speed
115200 max
 CAN Controller
Phillip SJA1000T CAN Controller
 CAN Transceiver
Phillip 82C250/251CAN Transceiver
 LED Directors
ERR, RUN, OVERRUN
Display
7-segment LED: 5digit
 Isolated
2500Vrms on CAN side
 Power Supply
20W unregulated +10VDC to +30Vdc
 Operating Temp
-25C to 75C
 Storage Temp
-30C to 85C
 Humidity
5 ~ 95%
Dimensions
122 x 72 x 33 mm




   Ordering Information



I-7232D
CANopen Slave / Slave / Modbus RTU Master Gateway
I-7232D CR
CANopen Slave / Slave / Modbus RTU Master Gateway (RoHS)
