CAN Bus
    GW-7433D







    CAN Bus


    I-7188 Series












GW-7433D
~ NEW ~


Modbus TCP Server/CANopen Master Gateway





“Embedded Internet” and “Embedded Ethernet” are hot topics today. Nowadays the Ethernet protocol becomes a kind of standard for local area network. Via Internet, connectivity is occurring everywhere, from home appliances to vending machines, to testing equipment, to UPS…etc. Using Ethernet for network in industrial area is appealing because the required cabling is already installed.
The GW-7433D is a solution that provides a communication transformation between CANopen protocol and Modbus/TCP protocol. It solves a mission-critical problem: connecting an existed CANopen network with Ethernet-base master device as long as this master device supports Modbus/TCP protocol. It enables CANopen networks to be coupled together with the Internet/Ethernet, whereby remote monitoring and controlling is achieved.

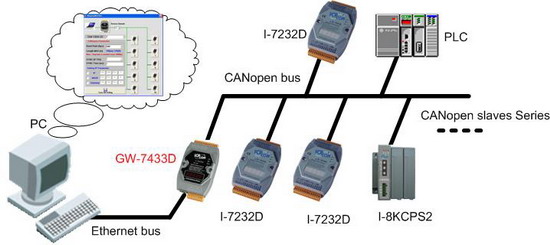

For CANopen network, the GW-7433D is a CANopen master device. It supports PDO and SDO functions to communicate with slave devices. From the view of Modbus/TCP network, GW-7433D plays a Modbus/TCP server role to receive the commands from Modbus/TCP client or to reply the information to Modbus/TCP client. We provide Utility software for users to configure the parameters of CANopen salves or GW-7433D. When GW-7433D boots up, it will collect the necessary information from all slaves which are predefined in the GW-7433D by using Utility. The following figure shows the application architecture for the GW-7433D.



  Applications



• Control System • Building Automation • Factory Automation • Distributed data acquisition





  Features



  • Programmable standard CANopen baud, such as 10Kbps, 20Kbps, 50Kbps, 125Kbps, 250Kbps, 500Kbps, 800Kbps and 1Mbps.
  • Support maximum 50 TxPDO, 50 RxPDO, 15 SDO to SDO server.
  • Support communication object: TxPDO, RxPDO, and server SDO.
  • Support on-line configure CANopen slaves.
  • Communicate with CANopen slaves automatically when GW-7433D boots up.
  • Allow 5 Modbus/TCP masters to access GW-7433D simultaneously.
  • CANopen Version: DS301 V4,01 .
  • Device Profile: DSP-401 v2.0 .



  GW-7433D Utility



  • Add/remove CANopen slaves via Ethernet.
  • Online getting and setting the CANopen slaves configurations via Ethernet.
  • Get/Set Modbus/TCP input/output memory address.
  • Display CANopen I/O mapping table.
  • Configure the parameters of Ethernet and CAN bus.







  How to use GW-7433D Gateway?




The simple steps about how to use GW-7433D are depicted as follows:

  1. Select proper CANopen slaves for users’ application.
  2. Use the GW-7433D Utility to link the GW-7433D Module via Ethernet.
  3. Set the IO parameters of CANopen slave devices into GW-7433D by GW-7433D Utility.
  4. The GW-7433D module will initialize automatically and implement the GW-7433D in your Modbus/TCP network.






  Modbus/TCP Commands Support




Only the following Modbus/TCP commands are supported by the GW-7433D gateway.

Code
Name
Description
01(0x01)
Read Coil Status
Read the ON/OFF status of discrete outputs in the slave
02(0x02)
Read Input Status
Read the ON/OFF status of discrete inputs in the slave
03(0x03)
Read Holding Registers
Read the binary contents of holding registers in the slaves
04(0x04)
Read Input Registers
Read the binary contents of input registers in the slaves
05(0x05)
Force Single Coils
Forces one coil in a sequence of coils to either ON or OFF
06(0x06)
Preset Single Register
Preset an integer value into a single register.
15(0x0F)
Force Multi Coils
Forces each coil in a sequence of coils to either ON or OFF
16(0x10)
Preset Multi Registers
Preset value into a sequence of holding registers




   Hardware Specifications



Model
GW-7433D
CPU
RDC 80186-80 Embedded CPU, or compatible
Flash
512K bytes
SRAM
512K bytes
EERROM
16K bytes
Ethernet port
10/100 Base-T
Real Time Clock
Year-2000 compliance; seconds, minutes, hours, date of the month, year, valid up from 1980 to 2079
CAN Signal Support
CAN_H, CAN_L
Connecter
5-pin screw terminal connecter
Power Consumption
3W
COM1
N/A
COM2
N/A
COM Speed
N/A
CAN Controller
Phillips SJA1000T CAN Controller
CAN Transceiver
Phillips 82C250 CAN Transceiver
LED Directors
MI, CI, ERR
Display
7-segment LED: 5 digits
Isolated
2500Vrms on CAN side
Reauired Supply Voltage
+10~+30VDC
Operating Temp
-25°C to 75°C
Storage Temp
-40°C to 85°C
Himidity
5~95%
Dimensions
122mm x 72mm x 33mm




   Ordering Information



GW-7433D CR
Modbus/TCP server to CANopen master Gateway (RoHS)
