CAN-8423 ~NEW~
(I-8421)
CANopen Embedded Device with 4 I/O Expansions |
|
|
|
|
|
|
|
| |
|
|
| |
CANopen, a kind of communication protocols,
is based on the intelligent field bus (CAN bus). It was developed
as a standardized embedded network with highly flexible configuration
capabilities. It provides standardized communication objects
for real-time data (Process Data Objects, PDO), configuration
data (Service Data Objects, SDO), network management data (NMT
message, and Error Control), and special functions (Time Stamp,
Sync message, and Emergency message). By now, CANopen is used
in many various application fields, such as medical equipment,
off-road vehicles, maritime electronics, public transportation,
building automation and etc.
CAN-8423 main control unit is specially designed for the slave
device of CANopen protocol. It follows the CANopen Spec DS-301
V4.01 and DSP-401 V2.1, and supplies many features for users,
such as dynamic PDO, EMCY object, error output value, SYNC cyclic
and acyclic, … and etc. In order to expand I/O channel more
flexible, an CAN-8423 supports up to 4 slots for I/O expansion
and suits with a lot of ICP DAS DI / AI /
|
|
DO / AO modules. User
can choose DI/DO/AI/AO modules of I-87K series or I-8000 series
to fit the customized practice applications. In addition, we also
provide CAN-8423 Utility to allow users to create the EDS file dynamically.
The EDS file is based on CANopen DSP-306 and can be compatible
with different CANopen master interfaces. The application architecture
is as follows. |
|
|
| |
|
|
| |
CAN-8423 can automatically
scan the I-8K/I-87K IO modules plugged in the main unit and assigned
these modules to the specific application. Before users apply
the CAN-8423 in CANopen applications, they must understand the relationship
between these CANopen application and device object dictionary
in CAN-8423. We also provide the CAN-8423 Utility tool to allow users
to make the configuration of AI/AO modules and some CANopen communication
parameters, such as Rx and Tx PDO mapping, error control, and
device |
object dictionary. After finishing
the Utility configuration, it will create the EDS file for the
connected CAN-8423 device. Furthermore, the EDS file of the CAN-8423
is not needed for the application, user can use the default configuration
for general DI/DO/AI/AO. And users only need to set the Node ID
and baud by hardware rotary switch. Then, after wire connection
and the CAN-8x23 powered on, it can work normally on the CAN bus
network through CANopen protocol. |
|
|
| |
|
| |
|

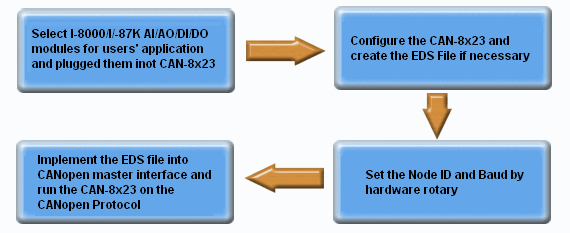

CAN-8423 Design Flowchart |
|
|
|
| |
|
|
| |
The following simple steps show how
to use CAN-8423 in the CANopen protocol.
 |
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
•Industrial Machinery •Laboratory
Equipment & Research •Restaurant Appliances
•Maritime •Medical •Specialty Vehicles...etc.
 |
| |
|
|
| |
NMT |
Slave |
Error
Control |
Node Guarding protocol |
No.
of PDOs |
16Rx , 16Tx |
PDO
Modes |
Event Triggered,
Remotely requested, Cyclic and acyclic SYNC |
PDO
Mapping |
Avaiable |
No.
of SDOs |
1 server, 0
client |
Emergency
Message |
yes |
CANopen
Version |
DS-301 v4.01 |
Device
Profile |
DSP-401 v2.0 |
Baud
Rate Setting by Rotary Switch |
10K, 20K, 50K,
125K, 250K, 500K, 800K, and 1Mbps |
Node ID setting by Rotary Switch |
yes |
Produce
EDS file Dynamically |
yes |
ERR, RUN,and PWR LED |
yes |
|
| |
| |
|
|
|
| |
Model
|
CAN-8423 |
CPU |
80186,
80MHz |
Flash
|
512K
bytes
|
SRAM |
512K
bytes |
EERROM
|
2K bytes
(Can upto 128K bytes or change to 2K/8K FRAM) |
NVRAM |
32
bytes |
Real
Time Clock |
16
bit |
Watch
Dog Timer |
CPU
Built-in |
COM1 |
RS232
(Program download port) |
CAN
Port |
5-pin
screw terminal connector |
CAN
Controller |
Phillip
SJA1000T
|
CAN
Transceiver |
Phillip
82C250/251 |
CAN
2.0A/2.0B Supported |
yes |
Isolated |
2500Vrms
on CAN side |
Terminal
Resister |
120
ohm terminal resister selected by jumper |
Transfer
Rate |
up
to 1Mbps |
I/O
Expasion Slot |
4
slots
|
Power
Supply |
20W
unregulated +10VDC to +30Vdc |
Operating
Temp |
-25C
to 75C |
Storage
Temp |
-30C
to 85C |
Humidity |
5
~ 95% |
Dimensions |
188x132x91
mm
|
|
| |
|
|
| |
| |
IO
Type |
Module
Name |
IO
Type |
Module
Name |
DI
|
I-8040/
I-8051/ I-8052/ I-8053/ I-8058/
I-87040/ I-87051/ I-87052/ I-87053/ I-87058/
|
AI |
I-87013/ I-87016/ I-87017/ I-87018/
I-87018Z
|
DO |
I-8037/ I-8041/ I-8056/ I-8057/ I-8060/ I-8064/
I-8065/ I-8066/ I-8068/ I-8069/
I-87041/ I-87056/ I-87057/ I-87060/ I-87064/ I-87065/
I-87066/ I-87068/ I-87069
|
AO |
I-8024
I-87022/ I-87024/ I-87026
|
DIO |
I-8042/ I-8054/ I-8055/ I-8063/
I-87042/ I-87054/ I-87055 I-87063/
|
Counter / Frequency |
I-8080 |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
