CAN-8124/CAN-8224

Hardware Specifications

CAN Bus

I-8000 Series

CAN-8124 (I-8KDNS1) / CAN-8224 (I-8KDNS2)
DeviceNet Embedded Device with 1 or 2 I/O Expansions

CAN-8124
~NEW~

CAN-8224
~NEW~

DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for embedded network for machine control, such as textile machinery, printing machines, injection molding machinery, or packaging machines, etc. DeviceNet is a low level network that provides connections between simple industrial devices (sensors, actuators) and higher level devices (controllers). It allows direct peer to peer data exchange between nodes in an organized and, if necessary, deterministic manner. DeviceNet defines a connection-based scheme to facilitate all application communications. A DeviceNet connection provides a communication path between multiple endpoints. The endpoints of a connection are applications that need to share data.

The CAN-8124/CAN-8224 main control unit is specially designed for the slave device of DeviceNet protocol. It follows the Specification of DeviceNet. In order to expand I/O channel more flexible, an CAN-8x24 supports 1/2 slot(s) for I/O expansion and suits with a lot of ICP DAS DI/AI/DO/AO modules.

Users can choice DI/DO/AI/AO modules of I-87K series or I-8000 series to fit the customized practice applications. In addition, we also provide CAN Slave Utility to allow users to create the EDS file dynamically. The EDS file is based on DeviceNet and can be compatible with different DeviceNet master interfaces. The application architecture is as image on the right.

CAN-8x24 Utility

In the CAN-8124/CAN-8224 device, ICPDAS provides CAN Slave Utility to produce the specific EDS file with the plugged in modules in off-line mode. After finishing the utility configuration, it can create the EDS file. There is also much DeviceNet information of the CAN-8x24 in the EDS file. It is not only for DeviceNet master interface but also for users to know more information about the slave device. Users also can use the default configuration for general DI/DO/AI/AO. And users only need to set the MAC ID and Baud rate by hardware rotary switch. Then, after wire connection and the CAN-8x24 powered on, it can work normally on the CAN bus network through DeviceNet protocol.

back

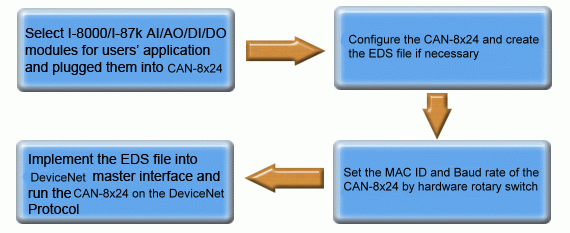

CAN-8x24 Design Flowchart

The following simple steps show how to use CAN-8x24 in DeviceNet protocol.

back

Features

DeviceNet Version	DeviceNet Specification Volume I & II, Release 2.0
Number of Nodes	64(Max)
Baud Rate	125K, 250K, 500K
Support Message Groups	Group 2 only Server
UCMM	Not Support
I/O Operating Modes	Poll, Bit-Strobe, Change of State/ Cyclic
Device Heartbeat Message	ˇ
Device Shutdown Message	ˇ
Produce EDS file Dynamically	ˇ
No. of Fragment I/O	128 Bytes (Max) (Input/ Output)
MAC ID Setting	Rotary Switch
Baud Rate Setting	Rotary Switch
DeviceNet Status LED	NET, MOD, PWR

back

Application Notes

‧Automotive ‧Food & Beverage‧Packaging‧High-speed Assembly
‧Pulp & Paper‧Semiconductor Fabrication‧Control System...etc.

back

Hardware Specifications

Model	CAN-8124	CAN-8224
CPU	80186, 80MHz
Flash	512K bytes
SRAM	512K bytes
EERROM	2K bytes (Can upto 128K bytes or change to 2K/8K FRAM)
NVRAM	32 bytes
Real Time Clock	16 bit
Watch Dog Timer	CPU Built-in
DeviceNet Status LEDs	NET, MOD, PWR
CAN Port	5-pin screw terminal connector
CAN Controller	Phillip SJA1000T
CAN Transceiver	Phillip 82C250/251
CAN 2.0A/2.0B Supported	ˇ
Isolated	2500Vrms on CAN side
Terminal Resister	120 ohm terminal resister selected by jumper
Transfer Rate	125K, 250K, 500K
I/O Expasion Slot	1 slots	2 slots
Power Supply	20W unregulated +10VDC to +30Vdc
Operating Temp	-25C to 75C
Storage Temp	-30C to 85C
Humidity	5 ~ 95%
Dimensions	64x119x91 mm	95x132x91 mm

back

Modules Support

CAN-8124 Support Module Table

back

Ordering Information

CAN-8124 (I-8KDNS1)	DeviceNet Embedded Device with 1 I/O Expansion
CAN-8224 (I-8KDNS2)	DeviceNet Embedded Device with 2 I/O Expansions
