Serial I/O Expansion Unit
I-87K4
I-87K5
I-87K8
I-87K9
Processor 16C550 compatible with 16 bytes FIFO
COM2 2-wire RS-485, 115.2K bps max.
Default function Support serial I/O only
Directly drive 256 of 7000 modules
Isolation 2500VDC
I/O Slots
4
5
8
9
Operating Temp. -25°C to +75°C
Storage Temp. -30°C to +85°C
Humidity 5~95%
Power Supply 20W, Unregulated +10Vdc to +30Vdc



WinPAC-8000
  Introduction
  Hardware


  • W- 8x4x
    		•

  • WP- 8x4x
    		•
      Selection Guide






      What is ...
  • What is ISaGRAF?

  • What is Web HMI?

  • What is VxComm?

  • What is Quicker?

  • What is VirtualCE?


    I-8KE4, I-8KE8
    Ethernet Expansion Unit
       The I-8KE4/I-8KE8 I/O expansion units are used to extend the number of I/O modules. Each expansion unit consists of a power supply and a backplane with 4/8 Ethernet I/O Expansion slots. The I/O expansion units, 87E4, 87E8 are equipped with a 10MbaseT RJ45 which links the expansion unit to the main control unit of WinCon-8000 series or other Ethernet based controller.



      Features

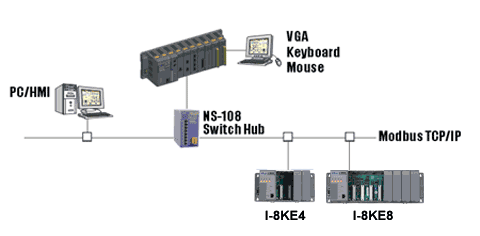

    • Supports Modbus/TCP communication protocol to access I/Os that plug in slots.
    • Supports VxComm technique for every COM port for controllers
    • Supports 8K/87K I/O modules.
    • Automatically scan I/O modules.
    • Allow a maximum of 8 host PCs access simultaneously.


      Common Specifications

    Ethernet I/O Expansion Unit
    I-8KE4
    I-8KE8
    Processor 80186, 80MHz
    SRAM 16bits 512K
    Flash Memory 512K
    EEPROM 2K bytes
    Ethernet Port 1 x RJ45, 10BaseT NE2000 compatible
    COM 0 Internal Use
    COM 1 1 x 9-pin D-Sub (RS-232)
    I/O Slots
    4
    8
    Operating Temp. -25°C to +75°C
    Storage Temp. -30°C to +85°C
    Humidity 5~95%
    Power Supply 20W, Unregulated +10Vdc to +30Vdc
    Dimensions (mm)
    230x110x75.5
    348x110x75.5


      Ordering information


    Model No.

    Description

    I-8KE4

    4-slot Ethernet I/O Expansion Unit

    I-8KE8

    		8-slot Ethernet I/O Expansion Unit
