Model: £gPAC-5001 (D)
£gPAC-5001P (D) |
Model: £gPAC-5001-FD (D) |
Model: £gPAC-5002 (D) |
| ~Available soon~ |
|
| |
|
| ~Available soon~ |
|
| |
|
| ~Available soon~ |
|
| |
|
| Model: £gPAC-5002-FD (D) |
Model: £gPAC-5002-NV (D) |
Model: £gPAC-5002-SM (D) |
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
The £gPAC-5000 series is a palm-size programmable automation controller. It has a 80186 CPU, SRAM , Flash, Ethernet port, RS-232 and RS-485 port. With a DOS-like OS (MiniOS7) and a developed fi rmware running inside, it can act like a small PC.
ICP DAS provides easy-to-use software development tool kits (Xserver, MiniOS7 framework, VxComm, Modbus libraries). Users can use them to easily integrate serial devices to have Ethernet/Internet communication ability and through the standard Modbus protocol to communicate with SCADA software (Indusoft, ISaGARF, DasyLab, Trace Mode, Citect, iFix, etc.).

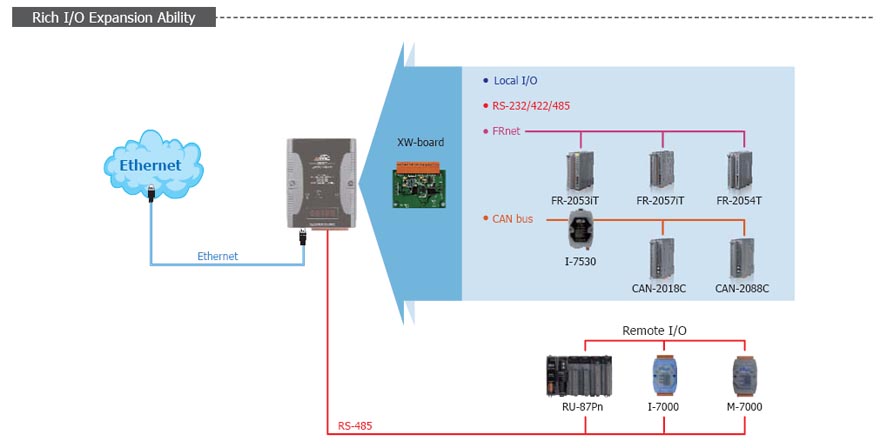

For hardware expansion, it also supports an I/O expansion bus. The I/O expansion bus can be used to implement various I/O functions such as D/I, D/O,A/D, D/A, Timer/Counter, UART, and other I/O functions. Nearly all kinds of I/O functions can be implemented by this bus. But the bus can support only one board. There are more than 10 boards available for £gPAC-5000 series, you can choose one of them to expand hardware features. more... |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
- MiniOS7 Inside
- C Language Programming
- TCP/IP Library
- Modbus Library
- Various Storage Media
- 512 KB Flash
- 16 KB EEPROM
- microSD (more details)
- 1 MB NVRAM
- 256 MB NAND Flash Disk (more details)
- 512 KB Battery Backup SRAM
- Various Communication Interfaces
- 10/100 Base-TX Ethernet
- RS-232/485
- 64-bit Hardware Serial Number
- I/O Expansion Bus
- Redundant Power Inputs
- Operating Temperature: -25 ~ +75 ¢XC
|
|
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| Models |
£gPAC-5001 (D)
£gPAC-5001P (D) |
£gPAC-5001-FD (D) |
£gPAC-5002 (D) |
£gPAC-5002-FD (D) |
£gPAC-5002-NV (D) |
£gPAC-5002-SM (D) |
| System Software |
| OS |
MiniOS7 (DOS-like embedded operating system) |
| Program Download Interface |
RS-232 (COM1) or Ethernet |
| Programming Language |
C language |
| Compilers to create.exe Files |
TC++ 1.01 (Freeware)
TC 2.01 (Freeware)
BC++3.1 ~ 5.2x
MSC 6.0
MSVC++ (before version 1.5.2) |
| CPU Module |
| CPU |
80186 or compatible (16-bit and 80 MHz) |
| SRAM |
512 KB |
768 KB |
| Flash |
512 KB; Erase unit is one sector (64 K bytes); 100,000 erase/write cycles |
| microSD Expansion |
Yes, can support 1 or 2 GB microSD |
| 256 MB NAND Flash Disk |
- |
Yes |
- |
Yes |
- |
| 1 MB NVRAM |
- |
Yes |
- |
| 512 KB Battery Backup SRAM |
- |
Yes |
| EEPROM |
16 KB |
| NVRAM |
31 Bytes (battery backup, data valid up to 5 year) |
| RTC (Real Time Clock) |
RTC Provide seconds, minutes, hours, date of week/month; month and year, valid from 1980 to 2079 |
| 64-bit Hardware Serial Number |
Yes |
| Watchdog Timers |
Yes (0.8 second) |
| Communication Ports |
| Ethernet |
RJ-45 x 1, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM 1 |
RS-232 (TxD, RxD, RTS, CTS, GND), non-isolated, Speed: 115200 bps max. |
| COM 2 |
RS-485 (D2+, D2-), self-tuner ASIC inside, non-isolated, Speed: 115200 bps max. |
| LED Indicator |
| Programmable LED Indicators |
2 |
| Hardware Expansion |
| I/O Expansion Bus |
Yes |
| Mechanical |
| Dimensions (W x H x D) |
91 mm x 123 mm x 52 mm |
| Installation |
DIN-Rail |
| Environmental |
| Operating Temperature |
-25 ~ +75 ¢XC |
| Storage Temperature |
-30 ~ +80 ¢XC |
| Ambient Relative Humidity |
10 ~ 90% RH (non-condensing) |
| Power |
| Protection |
Power reverse polarity protection |
| Frame Ground |
Yes (for ESD Protection) |
| Input Range |
+12 ~ +48 VDC |
| Isloation |
- |
| Redundant Power Inputs |
Yes |
| Power Consumption |
2 W; 2.5 W for (D) version |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| Models |
Dsecription |
£gPAC-5001 (D)
£gPAC-5001P (D) |
£gPAC-5001-FD (D) |
£gPAC-5002 (D) |
£gPAC-5002-FD (D) |
£gPAC-5002-NV (D) |
£gPAC-5002-SM (D) |
MiniOS7 based Ethernet £gPAC |
|
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| Option Accessories for Regular Version |
| NS-205 CR |
Unmanaged 5-Port Industrial Ethernet Switch |
| MDR-20-24 |
24V/1A output power supply with DIN-Rail |
| DIN-KA52F |
24V/1.04A, 25W Power Supply with DIN-Rail Mounting |
| 3LMSD-2000 |
2 GB microSD card |
| Option Accessories for PoE Version |
| NS-205PSE CR |
Industrial 5-Port PoE Ethernet Switch |
| NS-208PSE CR |
Industrial 8-port 10/100Mbp Ethernet with 8-port PoE Switch |
| NS-208PSE-4 CR |
Industrial 8-port 10/100Mbp Ethernet with 4-port PoE Switch |
| NS-205PSE-24V CR |
Industrial 5-port 10/100Mbp Ethernet with 4-port PoE Switch; 24 VDC Input |
| MDR-60-48 |
48 V/1.25 A, 60 W Power Supply with DIN-Rail Mounting |
| DIN-KA52F-48 |
48 V/0.52 A, 25 W Power Supply with DIN-Rail Mounting |
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
