X505
X505
(For I-7188XB/XG/EX/EG, μPAC-7186EX/EG/FD/SM)

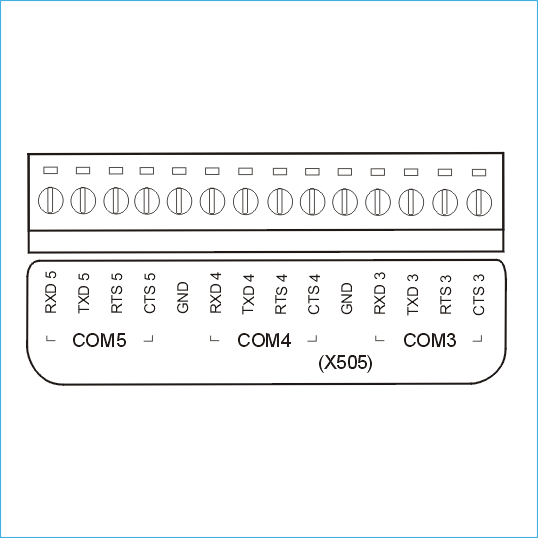

PIN Assignment






Power consumption : 0.7 W




Parallel I/O

  • RS-232 ports : 3
  • COM3 : TXD, RXD, RTS, CTS, GND
  • COM4 : TXD, RXD, RTS, CTS, GND
  • COM5 : TXD, RXD, RTS, CTS, GND
  • 16550 compatible
  • Internal FIFO : 16 bytes for each COM port
  • Transmission speed: 115.2K BPS max.
  • Isolated : none





Ordering Information

 X505  3-Port RS-232 ( 5-Pin )
 X505 CR  3-Port RS-232 ( 5-Pin ) (RoHS)
