Power consumption : 0.7 W |
|
|
Parallel I/O

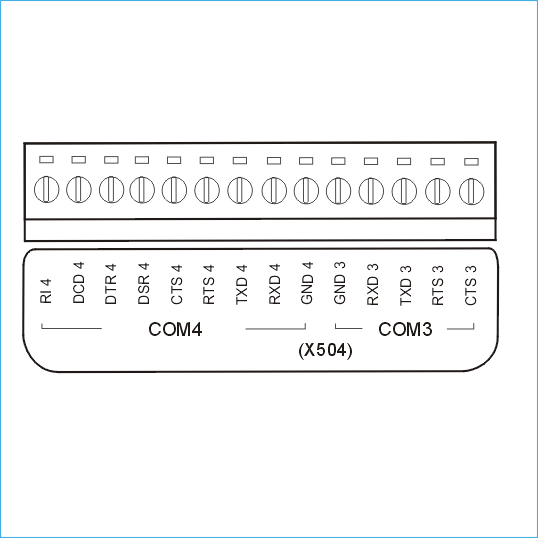

- RS-232 ports : 2
- COM3 : TXD, RXD, RTS, CTS, GND
- COM4 : TXD, RXD, RTS, CTS, DSR, DTR, DCD, RI, GND
- 16550 compatible
- Internal FIFO : 16 bytes for each COM port
- Transmission speed: 115.2K BPS max.
- Isolated : none
|
|
|
|
|
|
|
|
|
|
|
|
Ordering Information
X504 |
2-Port RS-232 ( 5-Pin ) and ( 9-Pin) |
X504 CR |
2-Port RS-232 ( 5-Pin ) and ( 9-Pin) (RoHS) |
|
|
|
|
|
|
|
|
|
|
|
