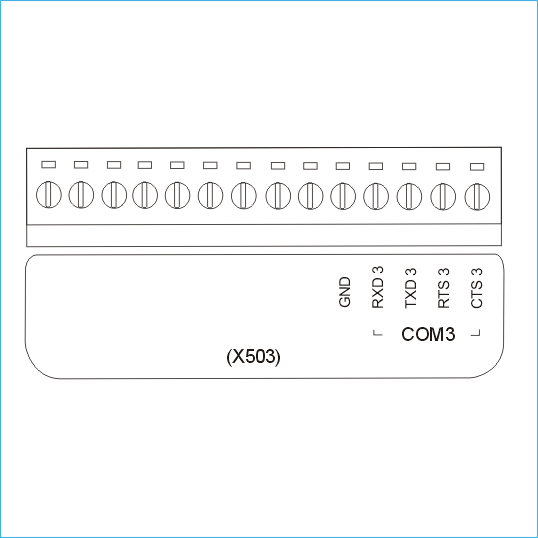

X503
X503
(For I-7188XB/XG/EX/EG, μPAC-7186EX/EG/FD/SM)
Demo program for 7188XB
Power consumption : 0.6 W
Parallel I/O
RS-232 port : 1
COM3 : TXD, RXD, RTS, CTS, GND
16550 compatible
Internal FIFO : 16 bytes
Transmission speed: 115.2K BPS max.
Isolated : none
back
Ordering Information
X503
1-Port RS-232 ( 5-Pin )
