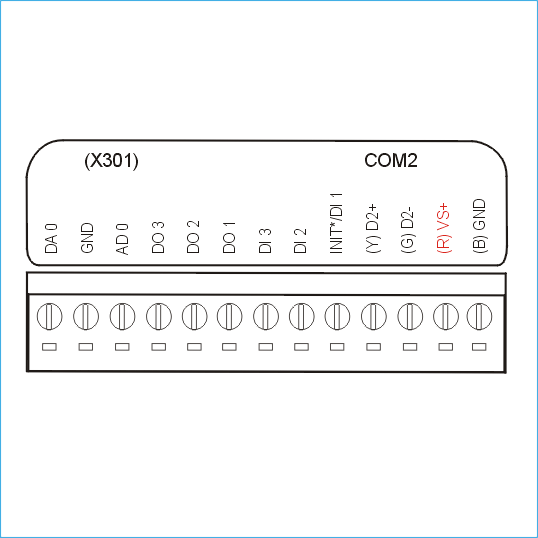

X301
X301
(For I-7188XC)
Voltage Input Wire Connection
Voltage Output Wire Connection
Demo program for 7188XC
Analog Input
Input Channels
1
Input Type
0 ~ 2.5 V
Resolution
12-bit
Sampling Rate
200KHz Max
Input Impedance
1K Ohm
Over voltage Protection
+30 VDC
Isolation Voltage
Non-isolation
Analog Output
Output Channels
1
Output Type
0 ~4.095 V
Resolution
12-bit
Settling time
1.4us
Output Capacity
20mA
Isolation Voltage
Non-isolation
Other specifications
Dimensions
64 mm x 32 mm
Power requirement
+5 VDC
Environment
Environment with I-7188XC or μpac-7186 series Casing
Operating Temperature: –25 ~ +75 ℃
Storage Temperature: –30 ~ +80 ℃
Relative Humidity: 10 ~ 90 % Non-condensing
back
X301
1-channel A/D ( 0~2.5V), 1-channel D/A ( 0~4.095V)
