| Analog Input |

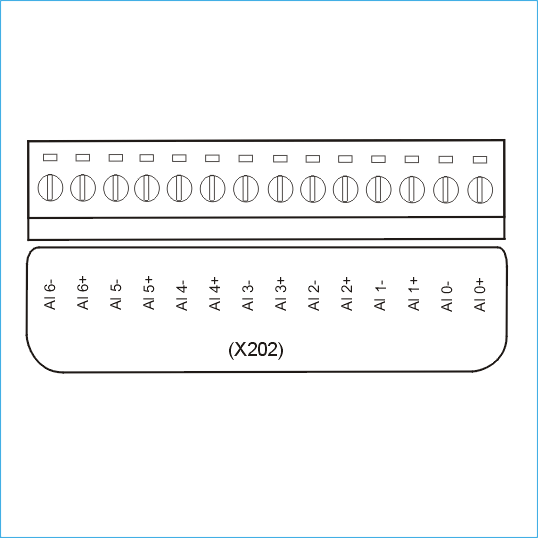

| Input Channels |
7 |
| Input Type |
0 ~ 20mA |
| Resolution |
12-bit |
| Sampling Rate |
1KHz Max(Read one channel) |
| Input Impedance |
125Ohms |
| Common Voltage |
+/-15VDC |
| Isolation Voltage |
Non-isolation |
| Other specifications |
| Dimensions |
64 mm x 38 mm |
| Power requirement |
+5VDC |
| Environment |
Environment with I-7188XC or
μpac-7186 series Casing |
Operating Temperature : -25 ~ +75°C |
| Storage Temperature : -40 ~ +80°C |
| Relative Humidity : 5% to 90% Non-condensing |
