I-7188/I-7188D
Embedded Controller |
|
| |
 |
 |
| Model: I-7188 |
Model: I-7188D |
|
|
|
|
| |
 |
Powerful and Versatile Controller
The I-7188(D) is for industry applications and can be used to replace PC or PLC devices in harsh environments. The I-7188(D) controller is designed for palm-size embedded systems that require high reliability, PC-compatibility, and compactness at a reasonable price.
The controllers can be integrated into an OEM product as a processor core component. By building your product around I-7188(D) controller, you reduce the time from design to market introduction, cut development costs, minimize technical risks, and deliver a more reliable product.
Depending on the type of embedded firmware programs that are being developed, the I-7188(D) can be used as a single versatile controller. |
| |
 |
| CPU |
| CPU |
80188 (40MHz) |
| SRAM |
256K Bytes |
| Flash |
512K Bytes; Erase unit is one sector (64K bytes); 100,000 erase/write cycles. |
| EEPROM |
2048 Bytes (8 block, each block contains 256byte)
Data retention > 100 years; 1,000,000 erase/write cycles |
| NVRAM |
31 Bytes (battery backup, data valid up to 10 year) |
| RTC (Real Time Clock) |
Seconds, minutes, hours, date of the month; month, year, valid up from 1980 to 2079 |
| 64-bit Hardware Serial Number |
No |
| Built-in Watchdog Timer |
Yes |

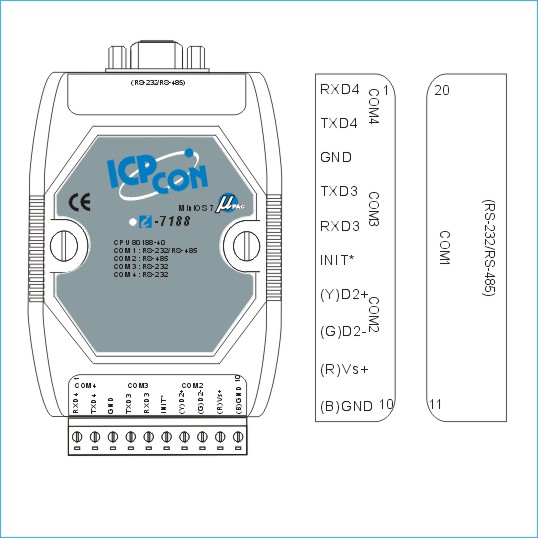

| Communication Interface |
| COM1 |
RS-232 or RS-485 (jumper select(JP1), default is RS-232)
RS-232 (TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI, GND)
RS-485 (D1+, D1-)
16 bytes FIFO |
| COM2 |
RS-485 (D2+, D2-), 16 bytes FIFO |
| COM3 |
RS-232 (TXD3, RXD3, GND), 1 byte FIFO |
| COM4 |
RS-232 (TXD4, RXD4, GND); Program download port; Can be used as general purpose RS-232 port, 1 byte FIFO |
| Communication speed |
| All ports |
115.2K bps max |
| Digital Input/Output |
| Digital Input |
No |
| Digital Output |
No |
| LED Display |
| 5 Digits Seven Segment Display |
Yes (for 7188D) |
| Red LED |
Yes |
| I/O expansion bus |
| I-7188 |
No |
| I-7188D |
No |
| Dimensions |
| I-7188 |
119mm x 72mm x 33mm |
| I-7188D |
119mm x 72mm x 33mm |
| Operating Environment |
| Operating Environment |
-25°C to +75°C |
| Storage Temperature |
-40°C to +80°C |
| Relative Humidity |
5 to 90%, non-condensing |
| Power |
| Protection |
Power reverse polarity protection |
| Required Supply Voltage |
10 to 30VDC |
| Power consumption |
I-7188: 2.0W
I-7188D: 3.0W |
|
| |
 |
| I-7188/512 CR |
Embedded controller includes 512K flash, MiniOS7, download utility, download cable and manual. (RoHS) |
| I-7188D/512 CR |
Embedded controller includes 512K flash, 5 digits seven segment display, MiniOS7, 5 digits seven segment display, download utility, download cable and manual. (RoHS) |
| OEM Version |
| I-7188/DOS/512 CR |
Embedded controller includes 512K flash, ROM-DOS, download utility, download cable and manual. (RoHS) |
| I-7188D/DOS/512 CR |
Embedded controller includes 512K flash, 5 digits seven segment display, ROM-DOS, 5 digits seven segment display, download utility, download cable and manual. (RoHS) |
|
| |
 |
| GPSU06U-6 |
24 V/0.25 A, 6 W Power Supply |
| DIN-KA52F |
24 V/1.04 A, 25 W Power Supply with DIN-Rail Mounting |
| MDR-20-24 |
24 V/1 A, 24 W Power Supply with DIN-Rail Mounting |
| I/O Expansion Boards |
Other add-on expansion boards refer to expansion board selection guide |
|
| |
|
| |
|
|
