PROFIBUS
    PROFI-8455






    PROFIBUS Lists













PROFI-8455 ~ NEW ~
PROFIBUS Remote I/O Unit with 4 Expansion Slots




The PROFI-8455 Remote I/O Unit is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 4 slots for ICPDAS I-8k series, I-87k Low Profile series, and I-87k High Profiles series I/O modules. In addition, we also provide hot-swap function for I-87k High Profiles series I/O modules. To setup network, users can choose and configure I/O modules by using the GSD file without any other setting tools.






  Applications



  • Industrial Automation
  • Factory Automation
  • Process Automation
  • Etc…

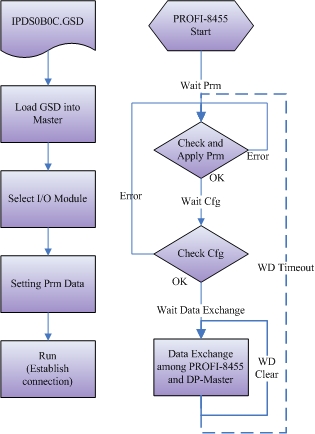

  Flow chart of PROFI-8455







  Features



Protocol & Hierarchy
DP-V0 Slave
Supports Transmission Rate (Kbps)
9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000
Transmission Rate Setting
detected automatically
Address Setting
0~126 set by Rotary switches
Indicators
PWR, ERR, and RUN LEDs
I/O modules Configuration
Configured by GSD file
Supports I/O modules hot-swap
I-87K High Profile series
Network Isolation Protection
High Speed iCoupler
DC Isolation Protection
3000VDC on PROFIBUS side
4KV ESD Protection
Contact for eash terminal




  Hardware Specifications



Model
PROFI-8455
CPU
80186, 80MHz
Flash
512K Bytes
SRAM
512K Bytes
EEPROM
2K Bytes
Watch Dog Timer
CPU Built-in
Com1
RS-232(Firmware update port)
PROFIBUS Interface
9-pin D-Sub(Female)
PROFIBUS Controller
Siemens SPC3
PROFIBUS Transceiver
ADI ADM2486 iCoupler Isolated Transceiver
Transmission Rate
Up to 12Mbps
I/O Expansion Slot
4 Slots
Power Requirement
10V ~ 30V
Power Supply
25W
Power Consumption
5W
Operating Temp.
-25℃ ~ +75℃
Storage Temp.
-30℃ ~ +85℃
Humidity
5% ~ 95%
Dimensions
188x132x91 mm




  Modules Support


Type
Module Name
DI
I-8040 / I-8051 / I-8052 / I-8053 / I-8058
I-87040 / I-87051 / I-87052 / I-87053 / I-87058
I-87040W / I-87046W / I-87051W / I-87052W / I-87053W / I-87053W-A5 / I-87058W / I-87059W
DO
I-8037 / I-8041 / I-8056 / I-8057 / I-8060 / I-8064 / I-8065 / I-8066 / I-8068 / I-8069
I-87041 / I-87057 / I-87064 / I-87065 / I-87066 / I-87068 / I-87069
I-87041W / I-87057W / I-87064W / I-87065W / I-87066W / I-87068W / I-87069W
DI/O
I-8042 / I-8050 / I-8054 / I-8055 / I-8063 / I-8077
I-87054 / I-87055 / I-87063
I-87054W / I-87055W / I-87063W
AI
I-8017H / I-8017HS
I-87013 / I-87017 / I-87018
I-87013W / I-87015 / I-87017W / I-87017W-A5 / I-87017R / I-87017RC / I-87018R /I-87018Z / I-87019R
AO
I-8024
I-87022 / I-87024 / I-87026
I-87024W
Counter/Frequency
I-8080
I-87082
I-87082W




  Ordering Information



PROFI-8455 CR
PROFIBUS Remote I/O Unit with 4 Expansion Slots (RoHS)
PROFI-8455
PROFIBUS Remote I/O Unit with 4 Expansion Slots
